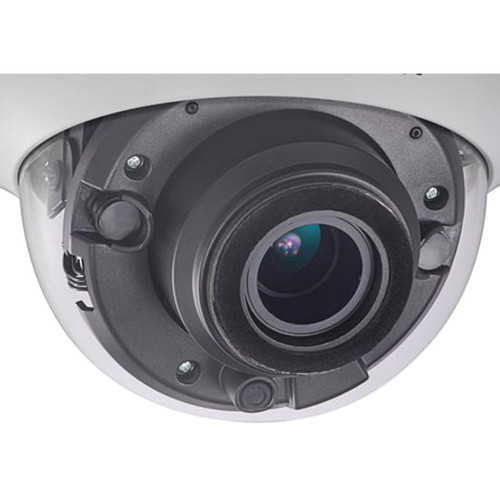

Hikvision DS-2CE56H0T-AITZF Turbo HD 5MP Dome Camera - 2560 x 1944131ft Night Vision - 5x Zoom - Wired
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera captures video at a maximum resolution of 2560x1944, leveraging a 5-megapixel CMOS sensor that balances power efficiency with high-definition output. The sensor supports both monochrome and color imaging, automatically adapting to ambient light for optimal clarity. Recording formats are HD-compatible, ensuring seamless integration with modern surveillance systems.
The lens system offers a 2.7mm to 13.5mm focal length range with 5x optical zoom, allowing precise control over the viewing area without digital interpolation. Night vision extends to 131.23 feet (40 meters) using EXIR technology, providing clear infrared illumination. Wired connectivity ensures stable data transmission, and the dome form factor measures 4.01 inches in height and 5.35 inches in diameter with a weight of 445 grams.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This dome camera stands out with its combination of high resolution, extended night vision, and versatile mounting, making it a dependable choice for continuous surveillance. The 5MP sensor captures fine details essential for identification and forensic review, while the 5x zoom lens allows operators to adjust the view without sacrificing image quality.
Enhanced Low-Light Performance
EXIR technology delivers uniform infrared illumination up to 131 feet, ensuring reliable monitoring in complete darkness without hotspots or glare.
- 131ft night vision range
- Consistent infrared coverage
- Auto-adaptation to lighting
Flexible Installation Options
Support for pole, wall, corner, pendant, and ceiling mounts enables deployment in virtually any indoor or sheltered outdoor location.
- Five mounting types
- Dome housing for discretion
- Rugged construction
Deployment / Use Cases
Ideal for small to medium business security, retail environments, and residential properties, this camera provides clear oversight of entrances, parking areas, and interior spaces. Its dome design offers a discreet profile that blends into commercial settings while deterring tampering.
Common applications include perimeter monitoring, lobby surveillance, warehouse oversight, and educational facility security. The wired connectivity ensures uninterrupted feed transmission to recorders or network video recorders, supporting 24/7 operation in critical areas.
Retail & Commercial Security
Monitor cash registers, stock rooms, and customer areas with high-resolution video that captures license plates, facial features, and product details.
Residential & Multi-Unit Properties
Secure driveways, gates, and common areas with night vision that covers large yards and pathways, integrated into existing HD surveillance systems.
Physical Profile
The dome enclosure measures 4.01 inches in height and 5.35 inches in diameter, providing a compact footprint suitable for tight installations. Weighing 445 grams, the camera is lightweight yet durable, with a finish designed to resist environmental wear. The housing supports vandal-resistant properties typical of dome cameras, and its adjustable base allows for precise angle positioning during mounting.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 4.01" (101.85 mm), 445 g. This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Height
- 4.01" (101.85 mm)
- Weight
- 445 g
- Length
- 2.7 mm
Highlights
- 5-megapixel resolution for detailed surveillance footage
- 131.23-foot night vision range with EXIR technology
- 5x optical zoom lens for flexible field-of-view adjustment
- CMOS sensor with power-efficient HD video recording
- Supports monochrome and color imaging in varying light
- Multiple mounting options: pole, wall, corner, pendant, ceiling
- Wired connectivity for stable video transmission
- TAA compliant for government and institutional procurement
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | DS-2CE56H0T-AITZF |
| Brand Name | Hikvision |
| Product Line | Turbo HD |
| Product Model | DS-2CE56H0T-AITZF |
| Product Name | 5 MP HD Motorized VF EXIR Dome Camera |
| Product Type | Surveillance Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | HD |
| Night Vision Distance | 131.23 ft (40 m) |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Monochrome,Color |
| Effective Camera Resolution | 5 Megapixel |
| Video | |
| Maximum Video Resolution | 2560 x 1944 |
| Lens | |
| Lens Type | Zoom |
| Minimum Focal Length | 2.7 mm |
| Maximum Focal Length | 13.5 mm |
| Optical Zoom | 5x |
| Network & Communication | |
| Connectivity Technology | Wired |
| Physical Characteristics | |
| Mount Type | Pole Mount,Wall Mount,Corner Mount,Pendant Mount,Ceiling Mount |
| Form Factor | Dome |
| Height | 4.01" (101.85 mm) |
| Diameter | 5.35" (135.89 mm) |
| Weight (Approximate) | 445 g |
| Miscellaneous | |
| TAA Compliant | Yes |
User Manual
FAQ
What is the maximum resolution of this Hikvision dome camera?
The camera captures video at a maximum resolution of 2560 x 1944, which is 5 megapixels. This high definition allows for clear imaging of details such as faces, license plates, and text, making it suitable for forensic review and real-time monitoring in security applications.
How far does the night vision extend on this model?
Night vision reaches up to 131.23 feet (40 meters) using EXIR infrared technology. This provides consistent illumination in complete darkness, ensuring reliable surveillance around perimeters, parking lots, and other low-light areas without hotspots or uneven lighting.
What types of mounting are supported by this dome camera?
It supports pole mount, wall mount, corner mount, pendant mount, and ceiling mount installations. This versatility allows deployment in diverse environments like retail stores, warehouses, and residential properties, with the dome housing offering a discreet and tamper-resistant design.
Does this camera have optical zoom capabilities?
Yes, it features a 5x optical zoom lens with a focal length range from 2.7 mm to 13.5 mm. This allows operators to adjust the field of view without losing image quality, useful for focusing on specific areas like entrances or aisles in surveillance setups.
What is the image sensor type and its advantages?
The camera uses a CMOS sensor, which is more power-efficient and cost-effective compared to CCD sensors while delivering high-definition video. It supports both monochrome and color imaging, automatically adapting to lighting conditions for optimal clarity in various environments.
Is this Hikvision camera TAA compliant?
Yes, it is TAA compliant, meaning it meets the Trade Agreements Act requirements for procurement by U.S. government agencies and institutions. This ensures the camera adheres to regulatory standards for origin and manufacturing, making it suitable for public-sector and educational deployments.
What connectivity or interface options are available?
Connectivity options include Wired, helping the product integrate into common office or home setups.
