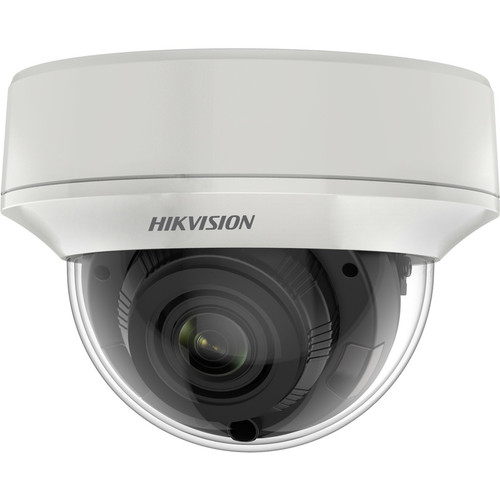

Hikvision DS-2CE56H8T-AITZF Turbo HD Pro 5MP Indoor Dome Camera - 2560 x 1944 - Varifocal 2. 7-13. 5mm Lens - 60m Night Vision - Wired
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera captures video at a maximum resolution of 2560 x 1944, ensuring sharp imagery for identification and monitoring purposes. The varifocal lens provides a focal range from 2.7 mm to 13.5 mm with 5x optical zoom, enabling adjustable field-of-view without sacrificing image quality. The CMOS sensor technology offers efficient power consumption while maintaining high-definition video output.
The camera operates on 24 V AC power and uses wired connectivity for reliable data transmission. It supports both NTSC and PAL video signal formats, making it compatible with a wide range of recording systems. Advanced features include automatic gain control, digital noise reduction, and backlight compensation to optimize video clarity across different environments.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The DS-2CE56H8T-AITZF stands out with its combination of high-resolution imaging, flexible lens adjustment, and comprehensive feature set designed for reliable indoor surveillance.
Enhanced Low-Light Performance
With a night vision distance of 60 meters and day/night functionality, this camera maintains surveillance capability around the clock. The automatic white balance and digital noise reduction ensure usable footage in varying light conditions.
- 60m infrared illumination
- Day/Night auto-switching
- Noise reduction for clear night video
Intelligent Surveillance Features
Built-in motion detection triggers alerts when activity is detected, while privacy masking allows you to block specific areas from recording. Mirror functionality provides image flipping for specialized mounting situations.
- Motion detection alerts
- Privacy zone masking
- Image mirroring capability
Deployment / Use Cases
This indoor dome camera is ideally suited for discreet monitoring in environments where visible security presence should be minimized. The compact dome design and multiple mounting options make it versatile for various installation scenarios.
Common applications include retail stores, office lobbies, hotel corridors, residential entryways, and small business premises. The 5-megapixel resolution provides sufficient detail for identifying individuals and monitoring activities, while the varifocal lens allows adjustment to cover specific areas of interest without requiring physical camera repositioning.
Retail Security Monitoring
Monitor cash registers, entry points, and merchandise areas with clear 5MP video that captures facial details and product interactions. The dome design discourages tampering while maintaining discreet surveillance.
Office and Building Security
Install in corridors, reception areas, or shared spaces to monitor foot traffic and access points. The multiple mounting options accommodate different ceiling heights and architectural features common in commercial buildings.
Physical Profile
The camera features a compact dome enclosure measuring 4.01 inches in height and 5.35 inches in diameter, with a weight of approximately 430 grams. This streamlined profile allows for discreet installation while housing the 5-megapixel sensor and varifocal lens mechanism. The dome design provides some protection against dust and incidental contact while maintaining a professional appearance suitable for indoor environments.
- Height
- 4.01" (101.90 mm)
- Weight
- 430 g
- Length
- 2.7 mm
Highlights
- 5-megapixel resolution for detailed surveillance footage
- Varifocal lens with 2.7-13.5mm range and 5x optical zoom
- Night vision capability up to 60 meters (196.85 feet)
- Multiple mounting options: ceiling, wall, corner, pendant, and pole
- CMOS sensor with efficient power consumption
- Advanced imaging features: AGC, BLC, digital noise reduction
- Motion detection and privacy masking functionality
- Compact dome design for discreet indoor installation
- Supports both NTSC and PAL video formats
- 3-year limited warranty for peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | DS-2CE56H8T-AITZF |
| Brand Name | Hikvision |
| Product Line | Turbo HD |
| Product Series | Pro |
| Product Model | DS-2CE56H8T-AITZF |
| Product Name | 5 MP Ultra Low Light Indoor Motorized Varifocal Dome Camera |
| Product Type | Surveillance Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | HD |
| Night Vision Distance | 196.85 ft (60 m) |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color,Monochrome |
| Effective Camera Resolution | 5 Megapixel |
| Video | |
| Maximum Video Resolution | 2560 x 1944 |
| Video Signal Format | NTSC,PAL |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 2.7 mm |
| Maximum Focal Length | 13.5 mm |
| Optical Zoom | 5x |
| Network & Communication | |
| Connectivity Technology | Wired |
| Power Description | |
| Input Voltage | 24 V AC |
| Physical Characteristics | |
| Mount Type | Ceiling Mount,Corner Mount,Pendant Mount,Pole Mount,Wall Mount |
| Form Factor | Dome |
| Height | 4.01" (101.90 mm) |
| Diameter | 5.35" (136 mm) |
| Weight (Approximate) | 430 g |
| Miscellaneous | |
| Features | Auto Gain Control,Automatic White Balance,Back Light Compensation (BLC),Day/Night,Digital Noise Reduction,Mirror,Motion Detection,Privacy Masking |
| Indoor/Outdoor | Indoor |
| Warranty | |
| Limited Warranty | 36 Month |
User Manual
FAQ
What is the maximum video resolution of this Hikvision camera?
The DS-2CE56H8T-AITZF captures video at up to 2560 x 1944 resolution, which equates to 5 megapixels. This high resolution provides detailed imagery suitable for identifying individuals and monitoring activities in surveillance applications.
How far does the night vision capability extend?
This camera provides night vision coverage up to 196.85 feet (60 meters). The infrared illumination combined with the CMOS sensor's low-light performance ensures usable surveillance footage in darkness or low-light conditions.
What type of lens does this camera have?
It features a varifocal lens with a focal length range from 2.7 mm to 13.5 mm, offering 5x optical zoom. This allows you to adjust the field of view without physically moving the camera, providing flexibility in covering different areas.
What mounting options are available for this dome camera?
The camera supports ceiling, wall, corner, pendant, and pole mounting. This versatility allows installation in various indoor locations to achieve optimal viewing angles and coverage for your specific surveillance needs.
Is this camera suitable for outdoor use?
No, this model is designed specifically for indoor use. The specifications clearly indicate it's an indoor camera, making it suitable for protected environments like offices, retail spaces, and residential interiors.
What power requirements does this surveillance camera have?
The camera operates on 24 V AC power and uses wired connectivity. This standard power specification ensures compatibility with common surveillance system power supplies and provides reliable operation for continuous monitoring.
What connectivity or interface options are available?
Connectivity options include Wired, helping the product integrate into common office or home setups.
