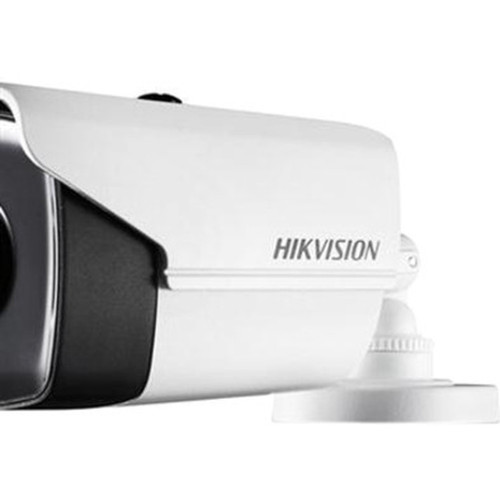

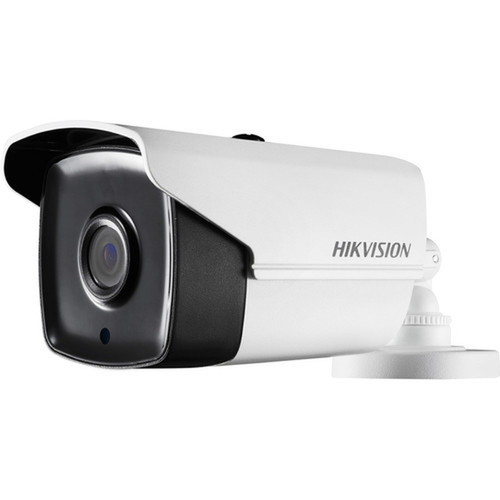

Hikvision DS-2CE16H5T-IT3E 6MM Turbo HD 5MP Outdoor Bullet Camera with 20m IR Night Vision - 2560 x 1944 Resolution - IP67
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Hikvision camera utilizes Turbo HD analog video technology, transmitting high-definition 5MP video over coaxial cable via the TVI format, compatible with NTSC and PAL systems. The fixed 6mm lens offers a 45-degree field of view, providing a balanced perspective for monitoring specific areas without excessive distortion. Advanced imaging features include Digital Noise Reduction (DNR) and Digital Wide Dynamic Range (D-WDR) to enhance video clarity in challenging lighting conditions, such as backlight or low-light scenarios.
The camera supports day/night operation with a removable IR cut-off filter, automatically switching between color and monochrome modes for optimal image quality. Exposure control is managed through a shutter speed range from 1/30 to 1/50000 second, combined with auto gain control and automatic white balance for consistent video output. These technical specifications ensure the camera captures detailed, stable footage suitable for security review and evidence purposes.
Key Product Advantages
The DS-2CE16H5T-IT3E 6MM offers distinct advantages for outdoor surveillance deployments, combining high-resolution imaging with environmental resilience. Its 5-megapixel sensor captures finer details than standard HD cameras, improving the ability to identify license plates, facial features, and other critical details at a distance. The 20-meter infrared night vision extends monitoring capability into complete darkness, supported by built-in IR LEDs that activate automatically based on light levels.
Durability in Harsh Conditions
With an IP67 rating, this camera withstands dust, rain, and temporary water immersion, making it ideal for outdoor installations in variable climates. The operating temperature range from -40°F to 140°F ensures reliable performance in extreme cold or heat.
- IP67 protection against dust and water
- Wide temperature tolerance for all seasons
- Robust bullet housing for impact resistance
Enhanced Image Quality
Features like Digital Wide Dynamic Range (D-WDR) balance bright and dark areas in the same scene, reducing overexposure and underexposure. Digital Noise Reduction (DNR) minimizes graininess in low-light footage, delivering cleaner video for analysis.
- WDR for high-contrast lighting
- DNR for clear low-light video
- Auto white balance for natural colors
Deployment / Use Cases
This bullet camera is designed for fixed-position outdoor surveillance where high-resolution monitoring and environmental durability are priorities. Its conduit mount facilitates secure attachment to walls, poles, or eaves, providing a stable vantage point with reduced vibration. The wired connectivity ensures a reliable, uninterrupted video feed to DVRs or hybrid recorders supporting Turbo HD TVI input, suitable for both new installations and upgrades from older analog systems.
Common deployment scenarios include perimeter security for commercial properties, monitoring of entry and exit points, surveillance of parking areas and loading docks, and oversight of outdoor storage or equipment yards. The camera's 45-degree field of view and 6mm focal length make it effective for covering medium-range areas like driveways, walkways, or fenced boundaries, where detailed identification is required without excessive wide-angle distortion.
Commercial Perimeter Security
Install along building exteriors or fence lines to deter trespassing and document incidents. The high resolution aids in identifying individuals and vehicles, while the night vision ensures 24/7 coverage.
- Clear identification of subjects
- Continuous monitoring day and night
- Tamper-resistant mounting
Parking and Lot Surveillance
Monitor parking lots for safety and theft prevention. The camera's durability handles weather exposure, and the 5MP resolution helps capture license plates and vehicle details.
- Vehicle and license plate detail
- Weatherproof for outdoor lots
- Fixed focus for consistent coverage
Physical Profile
The camera features a bullet-style housing that provides a deterrent presence and protects internal components from weather and tampering. Weighing 1.50 pounds (680 grams), it is substantial enough for stable mounting without being overly heavy. The conduit mount allows for secure attachment to surfaces, with cabling routed through the mount for a clean, professional installation that minimizes exposure to the elements. The compact design integrates the lens, sensor, and infrared LEDs into a single unit, simplifying setup and maintenance.
- Weight
- 1.50 lb (680 g)
- Length
- 6 mm (0.24")
Highlights
- 5-megapixel resolution (2560 x 1944) for detailed surveillance footage
- 20-meter (65.62 ft) infrared night vision for 24/7 monitoring
- IP67-rated housing for dust and water resistance in outdoor environments
- Turbo HD TVI analog video transmission over coaxial cable
- Fixed 6mm lens with 45-degree field of view for medium-range coverage
- Digital Wide Dynamic Range (D-WDR) and Digital Noise Reduction (DNR)
- Day/night functionality with removable IR cut-off filter
- Operating temperature range from -40°F to 140°F (-40°C to 60°C)
- Conduit mount for secure, tamper-resistant installation
- 12 V DC power input for standard surveillance system compatibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | DS-2CE16H5T-IT3E 6MM |
| Brand Name | Hikvision |
| Product Line | Turbo HD |
| Product Model | DS-2CE16H5T-IT3E |
| Product Name | 5 MP Outdoor Ultra-Low Light PoC Bullet Camera |
| Product Type | Surveillance Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 65.62 ft (20 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | 45° |
| Effective Camera Resolution | 5 Megapixel |
| Video | |
| Maximum Video Resolution | 2560 x 1944 |
| Maximum Frame Rate | 30 fps |
| Video Signal Format | NTSC,PAL |
| Analog Video Signal Format | TVI |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 6 mm (0.24") |
| Lens Included | Yes |
| Lens Mount Type | M12-mount |
| Exposure | |
| Shortest Shutter Speed | 1/50000 Second |
| Longest Shutter Speed | 1/30 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | No |
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Mount Type | Conduit Mount |
| Form Factor | Bullet |
| Weight (Approximate) | 1.50 lb (680 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Digital Noise Reduction,Digital Wide Dynamic Range (D-WDR),Day/Night,Removable IR Cut-off Filter,Auto Gain Control,Automatic White Balance,Ingress Protection,Built-in IR LED |
| Indoor/Outdoor | Outdoor |
| Ingress Protection Rating | IP67 |
User Manual
FAQ
What is the resolution of this Hikvision camera?
This Hikvision camera has a 5-megapixel resolution, which equates to 2560 x 1944 pixels. This high resolution provides clearer and more detailed video compared to standard 1080p cameras, allowing for better identification of subjects, license plates, and other critical details in surveillance footage.
How far does the night vision reach?
The camera's infrared night vision has an effective range of up to 20 meters (approximately 65.62 feet). This allows the camera to capture monochrome video in complete darkness, ensuring continuous monitoring during nighttime hours for outdoor security applications.
Is this camera suitable for outdoor use?
Yes, this camera is designed for outdoor use. It has an IP67 ingress protection rating, meaning it is dust-tight and can withstand temporary immersion in water. This makes it resistant to rain, snow, and harsh weather conditions, ensuring reliable performance in outdoor environments.
What type of video signal does this camera use?
This camera uses Turbo HD analog video transmission over the TVI (Transport Video Interface) format. It is compatible with both NTSC and PAL systems, allowing it to work with DVRs or hybrid recorders that support Turbo HD TVI input, making it suitable for upgrading existing analog systems.
What is the field of view of this camera?
The camera has a 45-degree field of view with its fixed 6mm lens. This provides a balanced perspective for monitoring specific areas like driveways, entry points, or perimeters without the excessive distortion of wider angles, making it ideal for medium-range surveillance.
What power supply does this camera require?
The camera requires a 12 V DC power supply. This is a standard voltage for surveillance cameras, allowing it to be powered by common power adapters or centralized power distribution units used in security system installations.
What display size or resolution is listed?
It features a display specification of 5 Megapixel, giving you clear visuals for work and media use.
