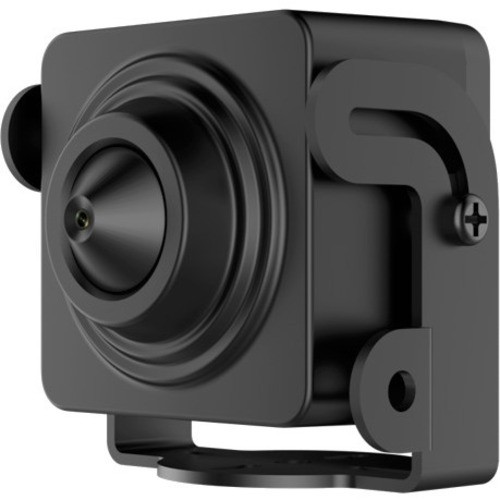

Hikvision DS-2CD2D21G0/M-D/NF 4MM Indoor Mini Network Camera - 2MP Full HD - H. 265+ - M12 Lens - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera utilizes a CMOS image sensor that supports both color and monochrome video, with low-light performance down to 0.025 lux in color mode and 0.005 lux in black-and-white mode. It includes advanced imaging features such as 3D digital noise reduction, wide dynamic range, and day/night functionality for consistent video quality under varying lighting conditions.
The camera operates on 12 V DC power with a maximum consumption of 3 watts, making it energy-efficient for continuous use. It connects via a wired RJ-45 Ethernet port for stable network integration and supports remote management for easy configuration and monitoring from centralized systems.
This section brings together practical product details such as HD Recording, Recording Formats, Image Sensor Type, Color Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This camera combines high-definition video with efficient compression and robust build quality, offering practical benefits for surveillance deployments.
Storage and Bandwidth Efficiency
H.265+ compression significantly reduces file sizes and network usage, allowing longer recording retention and lower infrastructure costs compared to older codecs.
- Reduces storage needs by up to 50% vs. H.264
- Minimizes bandwidth consumption for remote viewing
Enhanced Low-Light Performance
With minimum illumination as low as 0.005 lux in monochrome mode, the camera maintains visibility in dim environments, supported by day/night switching and noise reduction.
- Effective in near-dark conditions
- Clear B/W imaging for night surveillance
Compact and Durable Design
The small footprint (1.2-inch cube) and lightweight construction allow discreet installation in tight spaces, while the operating range from -22°F to 140°F ensures reliability in varied indoor climates.
- Minimal intrusion in decor
- Withstands temperature fluctuations
Deployment / Use Cases
This camera is ideal for indoor surveillance where space is limited but video quality and reliability are critical. Its compact size and Full HD output make it suitable for monitoring retail spaces, offices, lobbies, or residential interiors.
Common applications include entryway monitoring, hallway surveillance, and point-of-sale oversight. The wired connectivity ensures stable integration with network video recorders (NVRs) or video management software, supporting scalable security systems for small to medium businesses.
Retail and Office Security
Deploy above doors or in corners to capture clear footage of customer traffic, employee activities, or sensitive areas, with remote access for real-time oversight.
Residential or Light Commercial Monitoring
Use in homes, apartments, or small shops for 24/7 recording, leveraging the low-light capabilities and H.265+ efficiency for cost-effective storage.
Physical Profile
The camera measures 1.20 inches in height and width and 1 inch in depth, with a weight of 90.7 grams. Its black finish blends discreetly into indoor environments, and the M12 lens mount allows for potential lens upgrades if needed. The compact design facilitates easy mounting on ceilings, walls, or shelves using standard brackets.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.20" (30.48 mm), 1.20" (30.48 mm), 1" (25.40 mm), 90.7 g. This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 1.20" (30.48 mm)
- Depth
- 1" (25.40 mm)
- Height
- 1.20" (30.48 mm)
- Weight
- 90.7 g
- Length
- 4 mm
Highlights
- 2-megapixel CMOS sensor for Full HD 1080p video at 30 fps
- H.265+ compression reduces bandwidth and storage usage
- Fixed 4 mm lens with M12 mount and wide 102.5° diagonal field of view
- Low-light performance down to 0.005 lux in monochrome mode
- Wired RJ-45 connectivity with remote management support
- Compact design: 1.2" cube, 90.7 g weight for discreet installation
- Operates in temperatures from -22°F to 140°F (-30°C to 60°C)
- Includes features like 3D noise reduction, wide dynamic range, and face detection
- 12 V DC power input with maximum 3 W consumption
- 3-year limited warranty for reliable long-term use
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | DS2CD2D21G0/MD/NF4MM |
| Brand Name | Hikvision |
| Product Line | Value |
| Product Model | DS-2CD2D21G0/M-D/NF |
| Product Name | 2 MP Indoor Mini Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color,Monochrome |
| Field of View | Horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102.5° |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Video Formats | H.265+,H.265,H.264,H.264+ |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 4 mm |
| Lens Included | Yes |
| Lens Mount Type | M12-mount |
| Exposure | |
| Shortest Shutter Speed | 1/100000 Second |
| Longest Shutter Speed | 1/3 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Height | 1.20" (30.48 mm) |
| Width | 1.20" (30.48 mm) |
| Depth | 1" (25.40 mm) |
| Weight (Approximate) | 90.7 g |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | 3D Digital Noise Reduction,Day/Night,Wide Dynamic Range,Face Detection,Region of Interest |
| Indoor/Outdoor | Indoor |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the video resolution and frame rate of this camera?
The camera supports up to 2-megapixel resolution at 1920 x 1080 (Full HD) and delivers video at 30 frames per second. This ensures clear, smooth footage suitable for real-time monitoring and detailed playback in surveillance applications.
Does this camera support night vision or low-light recording?
Yes, it offers low-light performance with minimum illumination of 0.025 lux in color mode and 0.005 lux in black-and-white mode. It includes day/night functionality and monochrome support for effective recording in dim or dark environments.
What video compression formats are supported?
It supports H.265+, H.265, H.264+, and H.264 formats. H.265+ provides advanced compression to reduce bandwidth and storage needs by up to 50% compared to H.264, making it efficient for extended recording periods.
Is this camera suitable for outdoor use?
No, this model is designed for indoor use only. It operates in temperatures from -22°F to 140°F and up to 95% humidity, but it lacks weatherproofing for outdoor exposure. For outdoor surveillance, consider Hikvision's outdoor-rated cameras.
What power supply does the camera require?
The camera requires a 12 V DC power input with a maximum consumption of 3 watts. It typically uses a power adapter or can be powered via PoE if paired with a compatible injector, though PoE is not natively supported on this model.
What is the warranty period for this camera?
Hikvision provides a 3-year limited warranty for this camera, covering defects in materials and workmanship. This warranty supports reliable deployment in business and security settings, with terms detailed in the manufacturer documentation.
What display size or resolution is listed?
It features a display specification of 2 Megapixel, giving you clear visuals for work and media use.
