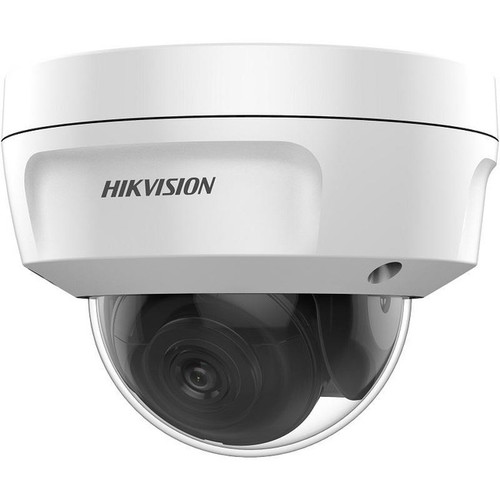

Hikvision ECI-D14F4 Value Express 4MP Outdoor Dome Network Camera - 2560 x 1440 - 98. 43 ft IR Night Vision - IP67 - IK10
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This network camera utilizes a 4-megapixel CMOS sensor to capture video at a maximum resolution of 2560 x 1440 and a frame rate of 30 fps, ensuring smooth and detailed footage. The sensor's efficiency supports HD recording with lower power consumption compared to traditional CCD sensors, making it a cost-effective choice for extended deployments. Video output is compatible with H.264, H.264+, H.265+, H.265, and Motion JPEG formats, offering flexibility for integration with various recording systems.
The lens system includes a fixed 4 mm focal length with an M12 mount and a maximum aperture of f/2, providing adequate light intake for low-light performance. Exposure control ranges from 1/100000 second to 1/3 second, allowing adaptation to changing lighting conditions. Network connectivity is wired via RJ-45, supporting remote management for configuration and monitoring from centralized security platforms.
Key Product Advantages
The Hikvision ECI-D14F4 stands out with its combination of high-resolution imaging, extended night vision range, and industrial-grade durability. These advantages ensure consistent surveillance performance in challenging outdoor environments, reducing maintenance needs and enhancing security coverage.
Enhanced Low-Light Performance
Infrared night vision extends up to 98.43 feet (30 meters), enabling clear monitoring in complete darkness. This capability is supported by a wide dynamic range (D-WDR) and 3D digital noise reduction to maintain image clarity in high-contrast or low-light scenarios.
- 98.43 ft IR night vision
- D-WDR for balanced exposure
- 3D noise reduction
Robust Environmental Protection
With an IP67 rating, the camera is dust-tight and protected against temporary immersion in water, while the IK10 rating resists impacts up to 20 joules. This durability ensures reliable operation in rain, snow, or vandal-prone areas without additional housing.
- IP67 weatherproof
- IK10 impact resistance
- Wide temperature range
Advanced Video Management
Features like motion detection, password protection, and privacy masking provide granular control over surveillance operations. These tools help reduce false alerts, secure access, and comply with privacy regulations by masking sensitive areas in the video feed.
- Motion detection
- Password protection
- Privacy masking
Deployment / Use Cases
This camera is designed for outdoor surveillance applications where high-resolution monitoring and environmental resilience are priorities. Its dome design deters tampering and blends into architectural settings, making it ideal for perimeter security, parking lots, building entrances, and retail exteriors.
In commercial settings, the camera supports loss prevention and safety compliance by providing clear evidence of incidents. For industrial sites, its wide operating temperature range and robust construction handle exposure to elements like heat, cold, and moisture. The multiple mounting options allow installation on ceilings, walls, corners, or conduits, adapting to various structural layouts without requiring custom brackets.
Perimeter and Entryway Monitoring
Deploy at building perimeters or entry points to capture detailed footage of individuals and vehicles. The 4MP resolution and wide field of view ensure identification of subjects, while night vision maintains coverage after dark.
Retail and Parking Security
Use in retail exteriors or parking areas to deter theft and monitor activity. The dome form factor reduces visibility to potential vandals, and features like motion detection can trigger alerts for suspicious behavior.
Physical Profile
The camera features a compact dome design with a height of 3.20 inches (81.28 mm) and a diameter of 4.40 inches (111.76 mm), allowing discreet installation in tight spaces. Weighing approximately 14.46 ounces (410 grams), it is lightweight yet sturdy, minimizing stress on mounting surfaces. The included watertight cable connector and wrench simplify installation, ensuring a secure and weatherproof connection for prolonged outdoor use.
- Height
- 3.20" (81.28 mm)
- Weight
- 14.46 oz (410 g)
- Length
- 4 mm (0.16")
What's in the Box
The package includes all necessary components for immediate deployment, ensuring a straightforward setup process.
Highlights
- 4-megapixel resolution for detailed 2560 x 1440 video
- Infrared night vision up to 98.43 feet (30 meters)
- IP67 weatherproof and IK10 impact-resistant ratings
- Fixed 4 mm lens with M12 mount for consistent viewing
- Supports H.265+, H.264+, and Motion JPEG video formats
- Wired connectivity with RJ-45 for reliable network integration
- Multiple mounting options: ceiling, conduit, corner, wall
- Operating temperature range from -22°F to 140°F (-30°C to 60°C)
- Includes motion detection and privacy masking features
- CMOS sensor for efficient power consumption and HD video
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | ECI-D14F4 |
| Brand Name | Hikvision |
| Product Line | Value Express |
| Product Model | ECI-D14F4 |
| Product Name | 4 MP Outdoor IR Network Dome Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | HD |
| Night Vision | Yes |
| Night Vision Distance | 98.43 ft (30 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | Horizontal FOV 77°, Vertical FOV 42°, Diagonal FOV: 90° |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Video Formats | H.264,H.264+,H.265+,H.265,Motion JPEG |
| Maximum Video Resolution | 2560 x 1440 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 4 mm (0.16") |
| Lens Included | Yes |
| Lens Mount Type | M12-mount |
| Maximum Aperture | f/2 |
| Exposure | |
| Shortest Shutter Speed | 1/100000 Second |
| Longest Shutter Speed | 1/3 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mount Type | Ceiling Mount,Conduit Mount,Corner Mount,Wall Mount |
| Form Factor | Dome |
| Height | 3.20" (81.28 mm) |
| Diameter | 4.40" (111.76 mm) |
| Weight (Approximate) | 14.46 oz (410 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Digital Wide Dynamic Range (D-WDR),3D Digital Noise Reduction,Motion Detection,Password Protection,Privacy Masking |
| Indoor/Outdoor | Outdoor |
| Package Contents | 4 MP Outdoor IR Network Dome Camera Quick Start Guide Screws Watertight Cable Connector Wrench |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP67 |
User Manual
FAQ
What is the maximum video resolution of this Hikvision camera?
The Hikvision ECI-D14F4 captures video at a maximum resolution of 2560 x 1440, which is 4 megapixels. This resolution provides clear and detailed footage suitable for identifying subjects and incidents in surveillance applications, supporting high-definition recording needs.
How far does the night vision reach on this outdoor camera?
This camera features infrared night vision with a range of up to 98.43 feet (30 meters). This allows for effective monitoring in complete darkness, ensuring continuous surveillance coverage during nighttime hours without requiring additional lighting.
Is this camera suitable for outdoor use in harsh weather conditions?
Yes, the camera is designed for outdoor use with an IP67 rating, making it dust-tight and protected against temporary water immersion. It also has an IK10 impact resistance rating and operates in temperatures from -22°F to 140°F (-30°C to 60°C), ensuring durability in rain, snow, heat, or cold.
What mounting options are available for this dome camera?
The camera supports multiple mounting types, including ceiling, conduit, corner, and wall mounts. This versatility allows for flexible installation in various locations, such as building exteriors, overhangs, or tight corners, to optimize surveillance coverage.
What video formats does this network camera support?
It supports H.264, H.264+, H.265+, H.265, and Motion JPEG video formats. These formats offer efficient compression, reducing bandwidth and storage requirements while maintaining video quality, which is beneficial for large-scale surveillance systems.
Does this camera include any advanced security features?
Yes, it includes features like motion detection, password protection, and privacy masking. Motion detection helps trigger alerts for specific activities, password protection secures access to the camera settings, and privacy masking allows you to obscure sensitive areas in the video feed for compliance.
What display size or resolution is listed?
It features a display specification of 4 Megapixel, giving you clear visuals for work and media use.
