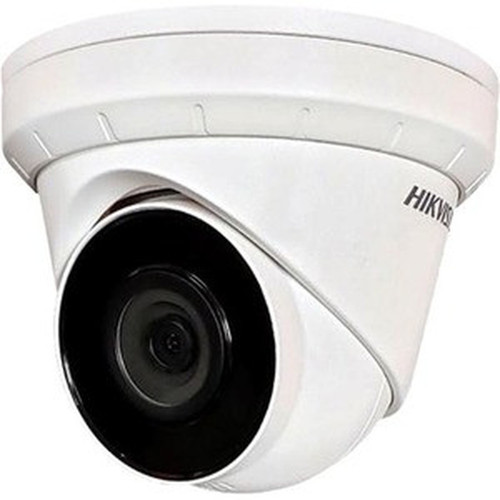

Hikvision ECI-T24F2 4MP Outdoor Turret Network Camera - Color Infrared Night Vision - 2560 x 1440 - 98. 4ft Range - IP67 - PoE/DC
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The ECI-T24F2 utilizes a high-sensitivity CMOS sensor that captures 4-megapixel video in H.264, H.265, and Motion JPEG formats, balancing image quality with efficient bandwidth usage. The fixed 2.8mm lens with f/2.0 aperture provides consistent focus and optimal light intake, while features like 3D Digital Noise Reduction and Digital Wide Dynamic Range (D-WDR) enhance clarity in challenging lighting scenarios.
Network connectivity is handled through a wired RJ-45 interface with support for Power over Ethernet (PoE) or traditional 12V DC power, simplifying installation and reducing cable clutter. The camera includes an M12-mount lens system and supports local storage via microSD card, offering flexible recording options without requiring a dedicated network video recorder.
This section brings together practical product details such as HD Recording, Night Vision, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Hikvision ECI-T24F2 combines robust outdoor durability with advanced imaging technology to deliver a surveillance solution that performs consistently in demanding environments. Its IP67-rated construction ensures protection against dust and water ingress, while the wide operating temperature range of -22°F to 140°F maintains functionality in extreme weather conditions.
Enhanced Night Vision
Infrared illumination provides clear monochrome imaging up to 98.4 feet in total darkness, with automatic day/night switching for seamless 24-hour monitoring.
- 30-meter infrared range
- Automatic IR cut filter
- Color imaging in daylight
Intelligent Video Features
Built-in motion detection, privacy masking, and password protection enhance security management while reducing false alerts and protecting privacy zones.
- Motion detection zones
- Up to 4 privacy masks
- Password-protected access
Deployment / Use Cases
This turret camera is specifically designed for outdoor surveillance applications where discreet monitoring and environmental resilience are priorities. Its versatile mounting options—including wall, corner, pole, conduit, ceiling, and pendant mounts—allow for flexible installation in commercial, industrial, and residential settings.
Typical deployments include perimeter security for warehouses and factories, parking lot monitoring at retail centers, entrance surveillance for office buildings, and general property security for homes and small businesses. The camera's clear housing and compact turret design blend into architectural environments while providing a visible deterrent.
Commercial Security
Monitor loading docks, parking areas, and building perimeters with high-resolution video that supports forensic review and incident documentation.
Retail & Hospitality
Cover entrances, outdoor seating areas, and parking lots with weather-resistant surveillance that operates reliably through seasonal changes.
Physical Profile
The ECI-T24F2 features a compact turret design measuring 3.70 inches in height and 4.30 inches in diameter, with a clean, transparent housing that maintains visual appeal while providing environmental protection. The lightweight construction at 12.7 ounces simplifies installation on various surfaces without requiring heavy-duty mounting hardware.
- Height
- 3.70" (93.98 mm)
- Weight
- 12.70 oz (360 g)
- Length
- 2.8 mm (0.11")
What's in the Box
The package includes all essential components for immediate deployment, ensuring a complete out-of-box experience for installers and integrators.
Highlights
- 4MP resolution delivers 2560x1440 video at 30 fps for detailed surveillance footage
- Infrared night vision provides clear imaging up to 98.4 feet (30 meters) in total darkness
- IP67 weather-resistant rating ensures reliable operation in outdoor environments
- Power over Ethernet (PoE) support simplifies installation and reduces cable requirements
- Wide 117-degree diagonal field of view captures expansive areas with minimal blind spots
- Multiple mounting options including wall, corner, pole, conduit, ceiling, and pendant mounts
- Local storage support via microSD card for flexible recording without an NVR
- Operating temperature range of -22°F to 140°F (-30°C to 60°C) for extreme climate performance
- Advanced features include 3D DNR, Digital WDR, motion detection, and privacy masking
- 3-year limited warranty provides long-term reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | ECI-T24F2 |
| Brand Name | Hikvision |
| Product Line | Value Express |
| Product Model | ECI-T24F2 |
| Product Name | 4 MP Outdoor IR Network Turret Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 98.43 ft (30 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | Horizontal FOV 100°, Vertical FOV 55°, Diagonal FOV: 117 |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Video Formats | H.264+,H.264,H.265,H.265+,Motion JPEG |
| Maximum Video Resolution | 2560 x 1440 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm (0.11") |
| Lens Included | Yes |
| Lens Mount Type | M12-mount |
| Maximum Aperture | f/2 |
| Exposure | |
| Shortest Shutter Speed | 1/100000 Second |
| Longest Shutter Speed | 1/3 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source Type | DC,PoE |
| Physical Characteristics | |
| Color Family | Clear |
| Product Color | Clear |
| Mount Type | Wall Mount,Corner Mount,Pole Mount,Conduit Mount,Ceiling Mount,Pendant Mount |
| Form Factor | Turret |
| Durability | Weather Resistant |
| Height | 3.70" (93.98 mm) |
| Diameter | 4.30" (109.22 mm) |
| Weight (Approximate) | 12.70 oz (360 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | 3D Digital Noise Reduction,Digital Wide Dynamic Range (D-WDR),Motion Detection,Password Protection,Privacy Masking,SD Card Local Storage,Day/Night |
| Indoor/Outdoor | Outdoor |
| Package Contents | 4 MP Outdoor IR Network Turret Camera Quick Start Guide Screws Watertight Cable Connector |
| Ingress Protection Rating | IP67 |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the maximum video resolution of the Hikvision ECI-T24F2 camera?
The ECI-T24F2 captures 4-megapixel video at a maximum resolution of 2560 x 1440 pixels, which provides detailed imaging suitable for identifying faces, license plates, and other critical details in surveillance footage. This resolution operates at 30 frames per second for smooth motion representation.
How far does the night vision reach on this outdoor camera?
The infrared night vision system provides clear monochrome imaging up to 98.43 feet (30 meters) in complete darkness. The camera automatically switches between color daytime imaging and infrared-enhanced night vision based on ambient light conditions.
What power options are available for the ECI-T24F2?
This camera supports both 12V DC power and Power over Ethernet (PoE), giving installers flexibility in deployment. PoE allows power and data transmission over a single Ethernet cable, simplifying installation in locations where power outlets are not readily available.
Is this camera suitable for outdoor installation in harsh weather?
Yes, the ECI-T24F2 features an IP67 ingress protection rating, meaning it's dust-tight and protected against temporary immersion in water. It operates reliably in temperatures from -22°F to 140°F (-30°C to 60°C) and up to 95% humidity, making it suitable for most outdoor environments.
What mounting options does this turret camera support?
The camera supports six different mounting configurations: wall mount, corner mount, pole mount, conduit mount, ceiling mount, and pendant mount. This versatility allows installation on various surfaces and structures to achieve optimal viewing angles for different surveillance scenarios.
Does the camera support local storage without a network video recorder?
Yes, the ECI-T24F2 includes a microSD card slot for local storage, allowing recording directly to the camera without requiring a separate NVR. This feature provides flexibility for smaller installations or as a backup recording option in larger systems.
What processor does this product use?
Hikvision ECI-T24F2 4MP Outdoor Turret Network Camera with Color Infrared Night Vision is positioned around the listed processor configuration, giving buyers a clearer view of expected performance for business workloads and everyday deployment needs.
