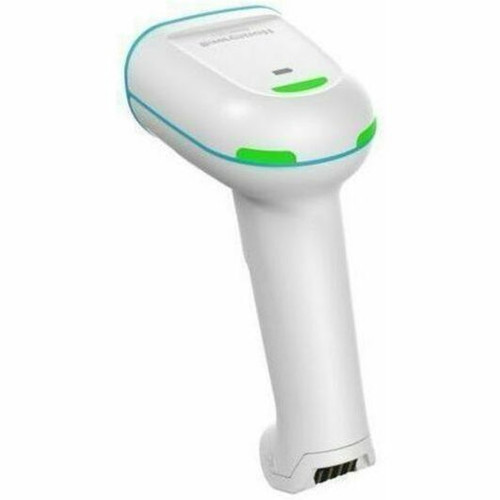

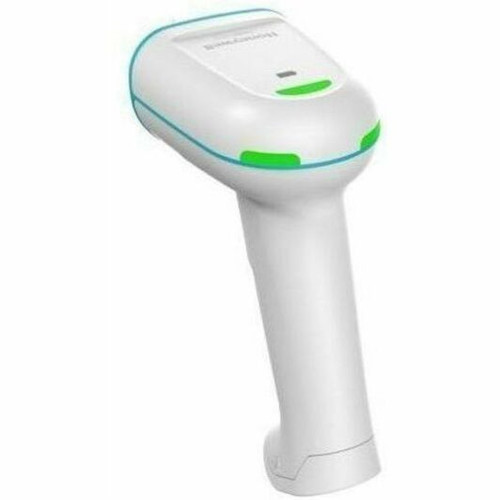

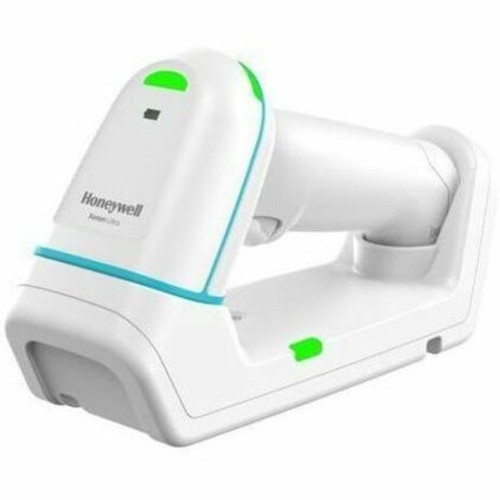

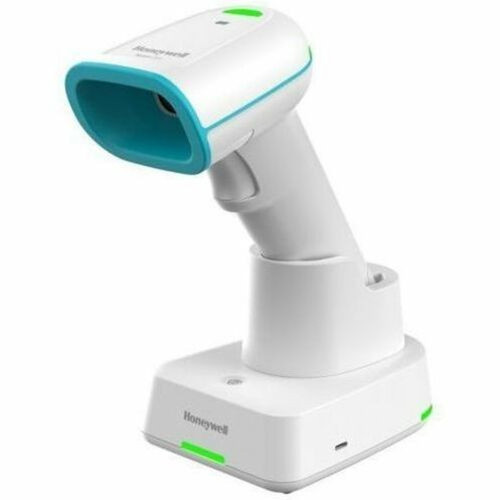

Honeywell 1962HHD-5USB-5-N Xenon Ultra Barcode Scanner Kit - Wireless 1D/2D - Bluetooth - RF - USB - White - 22-Hour Battery - Healthcare
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This scanner utilizes a high-resolution 1280 x 1080 image sensor with LED illumination to capture barcodes accurately under various lighting conditions. It supports a comprehensive range of symbologies including standard 1D, PDF, 2D, Postal Digimarc, DOT Code, and OCR, providing versatility for diverse labeling requirements.
The scanning platform offers a 42° horizontal and 36° vertical field of view, with reading angles of 65° skew, 65° pitch, and 360° roll for flexible orientation. It maintains performance in ambient light up to 100,000 lux and requires only 15% minimum print contrast for reliable decoding.
Relevant factors for this section include Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Bluetooth. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Xenon Ultra 1962H scanner provides operational advantages through its innovative power management and scanning enhancements. The green-dot aimer improves targeting accuracy, while the scan platform enables rapid, snappy scanning operations that boost productivity in fast-paced environments.
Flexible Power Options
Supports both lithium-ion batteries and battery-free supercapacitors, allowing enterprises to maintain mixed device pools. Supercapacitors retain charge for hours, ensuring operations continue even if scanners aren't placed in chargers during breaks.
- Lithium-ion battery option
- Battery-free supercapacitor option
- Mixed fleet flexibility
Healthcare-Optimized Features
Includes multiple operating modes designed for healthcare settings, such as Patient Do-Not Disturb, Vibration, and Scan Lamp. These features help maintain patient comfort while ensuring clinician productivity remains high.
- Patient Do-Not Disturb mode
- Vibration alerts
- Scan Lamp functionality
Deployment / Use Cases
This scanner is specifically designed for healthcare applications where reliability, hygiene, and patient comfort are paramount. Its contactless battery design reduces corrosion-related failures, while the IP52/IP41 rating provides protection against dust and water ingress in clinical environments.
Beyond healthcare, the scanner suits retail, warehouse, and logistics operations requiring durable wireless scanning. The 22-hour battery runtime supports extended shifts, and the wireless connectivity with Bluetooth and radio frequency options enables flexible deployment without cable constraints.
Relevant factors for this section include Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Bluetooth. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The handheld scanner measures 4.80" (121.92 mm) in height, 3.60" (91.44 mm) in width, and 3.30" (83.82 mm) in length, with a weight of approximately 7.76 oz (220 g). This compact, lightweight design ensures comfortable extended use while the white color maintains a clean, professional appearance suitable for healthcare and retail environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 4.80" (121.92 mm), 3.60" (91.44 mm), 7.76 oz (220 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 3.60" (91.44 mm)
- Height
- 4.80" (121.92 mm)
- Weight
- 7.76 oz (220 g)
- Length
- 3.30" (83.82 mm)
Highlights
- Wireless 1D/2D barcode scanner with Bluetooth and radio frequency connectivity
- High-resolution 1280 x 1080 image sensor with LED illumination
- 22-hour maximum battery runtime with 3300 mAh lithium-ion battery
- Rugged construction withstands 50 drops from 6 feet to concrete
- IP52/IP41 ingress protection against dust and water
- Healthcare-optimized with Patient Do-Not Disturb and vibration modes
- Supports battery-free supercapacitor option for mixed fleet flexibility
- Comprehensive symbology support including PDF, 2D, OCR, and Digimarc
- Wide operating temperature range from 41°F to 95°F
- 3-year limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | 1962HHD-5USB-5-N |
| Brand Name | Honeywell |
| Product Line | Xenon Ultra |
| Product Model | 1962h |
| Product Name | Xenon Ultra 1962H Barcode Scanner Kit |
| Product Type | Barcode Scanner Kit |
| Technical Information | |
| Connectivity Technology | Wireless |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | Decode Capabilities: Reads standard 1D, PDF, 2D, Postal Digimarc, DOT Code, and OCR symbologies |
| Light Source | LED |
| Field of View (Horizontal) | 42° |
| Field of View (Vertical) | 36° |
| Reading Angle (Skew) | 65° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 100000 lux |
| Drop Specification | Engineered to withstand 50 drops at 1.8 m (6 ft) to concrete across operating temp range |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (Code 39) | 3 mil (0.08 mm) |
| Maximum Element Resolution (Code 39) | 20 mil (0.51 mm) |
| Minimum Element Resolution (DataMatrix) | 5 mil (0.13 mm) |
| Maximum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Minimum Element Resolution (PDF417) | 5 mil (0.13 mm) |
| Maximum Element Resolution (PDF417) | 6.70 mil (0.17 mm) |
| Image Sensor Resolution | 1280 x 1080 |
| Illumination Type | LED |
| Illumination Color | White |
| Network & Communication | |
| Bluetooth | Yes |
| Radio Frequency | Yes |
| Interfaces/Ports | |
| Host Interface | USB |
| Power Description | |
| Maximum Operating Power Consumption | 2.50 W |
| Input Current | 500 mA |
| Battery Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Capacity | 3300 mAh |
| Maximum Battery Run Time | 22 Hour |
| Maximum Battery Recharge Time | 4.50 Hour |
| Environmental Conditions | |
| Operating Temperature | 41°F (5°C) to 95°F (35°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 0% to 95% |
| Physical Characteristics | |
| Form Factor | Handheld |
| Color Family | White |
| Product Color | White |
| Height | 4.80" (121.92 mm) |
| Width | 3.60" (91.44 mm) |
| Length | 3.30" (83.82 mm) |
| Weight (Approximate) | 7.76 oz (220 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP52,IP41 |
| Application/Usage | Healthcare |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What types of barcodes can this Honeywell scanner read?
The Xenon Ultra 1962H scanner reads both 1D and 2D barcodes, including standard 1D linear codes, PDF417, DataMatrix, QR codes, Postal Digimarc, DOT Code, and OCR (Optical Character Recognition) text. This comprehensive symbology support makes it suitable for retail, healthcare, logistics, and industrial applications where diverse labeling formats are used.
How does the wireless connectivity work on this scanner?
This scanner offers dual wireless connectivity through both Bluetooth and radio frequency (RF) technologies. Bluetooth enables direct pairing with compatible devices, while RF connectivity typically works with dedicated base stations for extended range. The scanner also features USB host interface for wired connections when needed, providing flexibility for different deployment scenarios.
What is the battery life and charging time for this scanner?
The scanner delivers up to 22 hours of continuous operation on a single charge with its 3300 mAh lithium-ion battery. Recharging the battery takes approximately 4.5 hours from empty to full. The device also supports battery-free operation using supercapacitors that retain charge for hours, ensuring uninterrupted workflow even if scanners aren't placed in chargers during breaks.
How durable is this barcode scanner for healthcare environments?
Engineered for demanding environments, this scanner withstands 50 drops from 1.8 meters (6 feet) onto concrete across its operating temperature range. It features IP52 and IP41 ingress protection ratings, providing defense against dust and water ingress. The contactless battery design reduces corrosion-related failures, making it particularly suitable for healthcare settings where equipment reliability is critical.
What healthcare-specific features does this scanner include?
Designed for clinical environments, the scanner includes multiple operating modes such as Patient Do-Not Disturb, Vibration alerts, and Scan Lamp functionality. These features help maintain patient comfort during procedures while ensuring clinician productivity. The white color scheme and compact form factor also support integration into healthcare settings where cleanliness and space efficiency are important considerations.
What warranty coverage comes with this Honeywell scanner?
The Xenon Ultra 1962H Barcode Scanner Kit includes a 3-year limited warranty from Honeywell. This warranty covers manufacturing defects and ensures long-term reliability for enterprise deployments. For healthcare and commercial applications where scanner uptime is essential, this extended warranty period provides added confidence in the investment.
