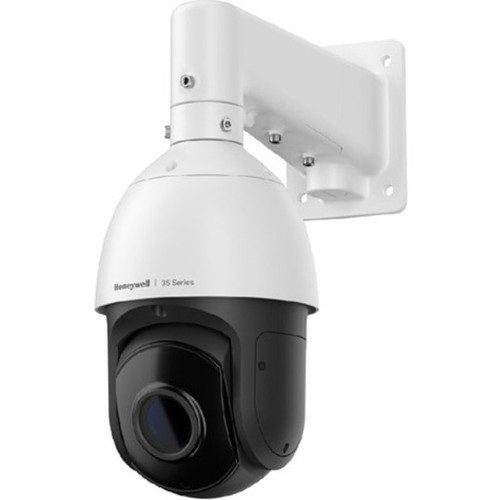

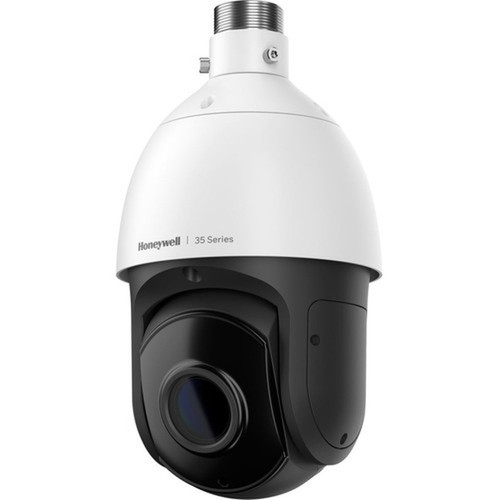

Honeywell HC35WZ2R25 35 Series 2MP Full HD Dome Network Camera - 492. 13 ft IR Night Vision - 25x Optical Zoom - Signal White/Pantone Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera captures video at up to 60 frames per second in Full HD 1920x1080 resolution using efficient H.265 (HEVC), H.264, and MJPEG compression formats. The CMOS image sensor provides power-efficient HD video with support for NTSC and PAL signal formats.
Advanced imaging features include wide dynamic range, back light compensation, highlight compensation, automatic white balance, and both 2D and 3D digital noise reduction. The varifocal lens offers focal lengths from 5mm to 125mm with aperture range from f/1.6 to f/3.67, providing flexibility in various surveillance scenarios.
Relevant factors for this section include HD Recording, Recording Formats, Night Vision, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Extended Night Coverage, Environmental Resilience, Flexible Installation.
Extended Night Coverage
Ten infrared LEDs enable clear monitoring up to 492.13 feet (150 meters) in complete darkness, ensuring 24/7 surveillance capability without additional lighting.
- Infrared night vision
- 150-meter range
- 10 IR LEDs
Environmental Resilience
Built to withstand demanding conditions with water and dust resistance (IP66/IP67) and impact protection (IK10) for reliable outdoor and industrial deployment.
- IP66/IP67 rated
- IK10 impact protection
- -40°F to 158°F operating range
Flexible Installation
Supports wall, pole, and corner mounting with 90° to -10° tilt adjustment, accommodating various installation requirements and viewing angles.
- Multiple mount options
- 90° tilt range
- Dome form factor
Deployment / Use Cases
The HC35WZ2R25 excels in perimeter security applications where long-range monitoring and weather resistance are critical. Its 492.13-foot night vision range and 25x optical zoom make it ideal for monitoring large outdoor areas such as parking lots, warehouses, and industrial facilities during both day and night operations.
Commercial retail environments benefit from the camera's wide dynamic range and back light compensation, which maintain image quality in challenging lighting conditions near entrances or windows. The PoE capability simplifies installation in networked surveillance systems while the SD card local storage provides backup recording options.
Relevant factors for this section include HD Recording, Recording Formats, Night Vision, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The dome-style housing measures 6.82 inches (173.20 mm) in diameter with a weight of 7.72 pounds (3500 g), providing a substantial presence for visible deterrence. The dual-color finish in Signal White and Pantone Black offers aesthetic options to blend with different architectural styles while maintaining professional appearance.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 7.72 lb (3500 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 7.72 lb (3500 g)
- Length
- 5 mm (0.20")
Highlights
- 2-megapixel Full HD resolution for crisp video capture
- 492.13-foot infrared night vision with 10 IR LEDs
- 25x optical zoom varifocal lens for flexible coverage
- IP66/IP67 and IK10 ratings for weather and impact resistance
- Power over Ethernet (PoE) and 24V AC power options
- H.265, H.264, and MJPEG video compression formats
- Wide dynamic range and back light compensation
- Wall, pole, and corner mounting flexibility
- SD card local storage capability
- 5-year limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | HC35WZ2R25 |
| Brand Name | Honeywell |
| Product Series | 35 |
| Product Name | 35 Series IP Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Night Vision | Yes |
| Night Vision Distance | 492.13 ft (150 m) |
| Night Vision Type | Infrared |
| Number of IR LEDs | 10 |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Tilt | 90° to -10° |
| Field of View | H: 57.02° - 3.36°, V: 33.14° - 1.91° |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Video Formats | H.265 (HEVC),H.264,MJPEG |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 60 fps |
| Video Signal Format | NTSC,PAL |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 5 mm (0.20") |
| Maximum Focal Length | 125 mm (4.92") |
| Lens Included | Yes |
| Minimum Aperture | f/3.67 |
| Maximum Aperture | f/1.6 |
| Optical Zoom | 25x |
| Exposure | |
| Shortest Shutter Speed | 1/30000 Second |
| Longest Shutter Speed | 1/1 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 24 V AC |
| Power Source Type | AC,PoE |
| Physical Characteristics | |
| Color Family | Dual Color |
| Product Color | Signal White,Pantone Black |
| Mount Type | Wall Mount,Pole Mount,Corner Mount |
| Form Factor | Dome |
| Durability | Water Resistant,Dust Resistant |
| Diameter | 6.82" (173.20 mm) |
| Weight (Approximate) | 7.72 lb (3500 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 158°F (70°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Day/Night,SD Card Local Storage,Wide Dynamic Range,Back Light Compensation (BLC),Highlight Compensation (HLC),Automatic White Balance,Gain Control,2D Digital Noise Reduction (2DNR),3D Digital Noise Reduction,Defog |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66,IP67 |
| Country of Origin | Vietnam |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the maximum night vision distance of this camera?
The Honeywell HC35WZ2R25 provides infrared night vision up to 492.13 feet (150 meters) using ten integrated IR LEDs. This extended range ensures clear monitoring in complete darkness for perimeter security and large outdoor areas without requiring additional lighting infrastructure.
What video resolutions and formats does this camera support?
This camera captures video at Full HD 1920x1080 resolution with support for H.265 (HEVC), H.264, and MJPEG compression formats. The maximum frame rate is 60 fps, providing smooth video playback for surveillance monitoring and forensic review applications.
Can this camera be powered using Power over Ethernet?
Yes, the HC35WZ2R25 supports both Power over Ethernet (PoE) and 24V AC power sources. This dual-power capability provides installation flexibility, allowing the camera to receive power and data through a single Ethernet cable in PoE-enabled network deployments.
What environmental protection ratings does this camera have?
This camera carries IP66 and IP67 ingress protection ratings against dust and water, along with IK10 impact resistance. These ratings ensure reliable operation in harsh outdoor and industrial environments where exposure to weather elements and potential physical impacts may occur.
What mounting options are available for this dome camera?
The camera supports wall mounting, pole mounting, and corner mounting configurations with 90° to -10° tilt adjustment. This flexibility accommodates various installation requirements for optimal viewing angles in different surveillance scenarios and architectural environments.
What is the warranty coverage for this network camera?
Honeywell provides a 5-year limited warranty for the HC35WZ2R25 network camera. This extended warranty period reflects the product's durability and reliability for professional surveillance applications, offering long-term protection for your security investment.
