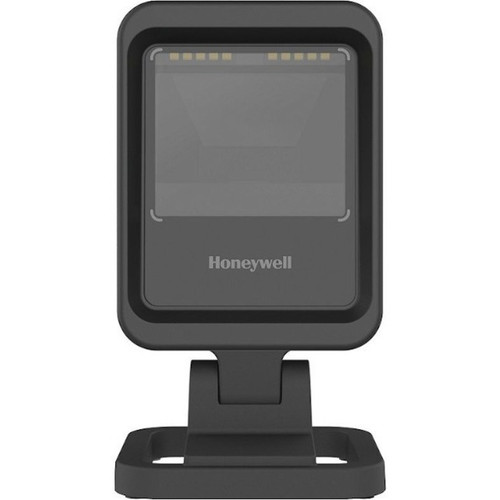

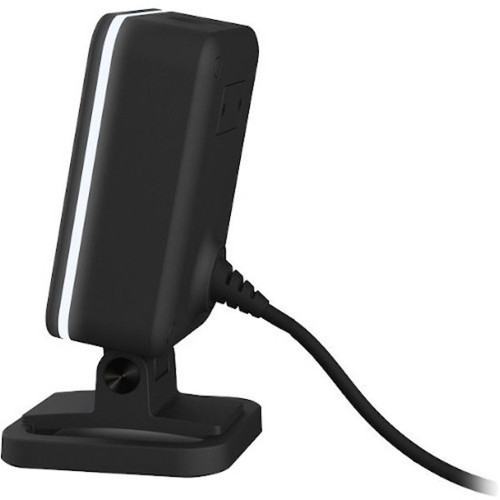

Honeywell Genesis XP 7680g Barcode Scanner Kit - Cable Connectivity - 9.90" (251.46 mm) Scan Distance - 1D, 2D - Imager - Area - USB, (7680GSR-5USB-1)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Connectivity Technology: Cable
Scanning Capability: 1D,2D
Image Sensor Type: Imager
Scan Mode: Trigger
Scan Pattern: Area
Scanning Distance: 9.90" (251.46 mm)
Cable Type Included: USB
Stand Included: Yes
Field of View (Horizontal): 48°
Field of View (Vertical): 30°
Reading Angle (Skew): 65°
Reading Angle (Pitch): 65°
Motion Tolerance: 158 in/s (4013.20 mm/s)
Maximum Ambient Light: 100000 lux
Minimum Print Contrast: 20%
Minimum Element Resolution (Code 39): 3 mil (0.08 mm)
Maximum Element Resolution (Code 39): 5 mil (0.13 mm)
Minimum Element Resolution (DataMatrix): 10 mil (0.25 mm)
Image Sensor Resolution: 1280 x 800
Illumination Color: White
Features: Beep
Host Interface: USB,Serial,Keyboard Wedge,IBM 46XX
Maximum Operating Power Consumption: 2.50 W
Input Current: 500 mA
Operating Temperature: 32°F (0°C) to 122°F (50°C)
Storage Temperature: -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing): 0% to 95%
Form Factor: Hands-free
Rugged: Yes
Color Family: White
Product Color: White
Height: 105" (2667 mm)
Width: 40" (1016 mm)
Length: 80" (2032 mm)
Weight (Approximate): 11.99 oz (340 g)
Ingress Protection (IP) Rating: IP52
[custom-specifications]
| Specifications | |
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | 7680GSR-5USB-1 |
| Manufacturer Website Address | http://www.honeywell.com |
| Brand Name | Honeywell |
| Product Line | Genesis XP |
| Product Model | 7680g |
| Product Name | Genesis XP 7680g Barcode Scanner Kit |
| Product Type | Barcode Scanner Kit |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D,2D |
| Image Sensor Type | Imager |
| Scan Mode | Trigger |
| Scan Pattern | Area |
| Scanning Distance | 9.90" (251.46 mm) |
| Cable Type Included | USB |
| Stand Included | Yes |
| Field of View (Horizontal) | 48° |
| Field of View (Vertical) | 30° |
| Reading Angle (Skew) | 65° |
| Reading Angle (Pitch) | 65° |
| Motion Tolerance | 158 in/s (4013.20 mm/s) |
| Maximum Ambient Light | 100000 lux |
| Minimum Print Contrast | 20% |
| Minimum Element Resolution (Code 39) | 3 mil (0.08 mm) |
| Maximum Element Resolution (Code 39) | 5 mil (0.13 mm) |
| Minimum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Image Sensor Resolution | 1280 x 800 |
| Illumination Color | White |
| Features | Beep |
| Interfaces/Ports | |
| Host Interface | USB,Serial,Keyboard Wedge,IBM 46XX |
| Power Description | |
| Maximum Operating Power Consumption | 2.50 W |
| Input Current | 500 mA |
| Environmental Conditions | |
| Operating Temperature | 32°F (0°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 0% to 95% |
| Physical Characteristics | |
| Form Factor | Hands-free |
| Rugged | Yes |
| Color Family | White |
| Product Color | White |
| Height | 105" (2667 mm) |
| Width | 40" (1016 mm) |
| Length | 80" (2032 mm) |
| Weight (Approximate) | 11.99 oz (340 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP52 |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
User-Manual
[/custom-user-manual]
| Qty | Price | Available |
|---|
