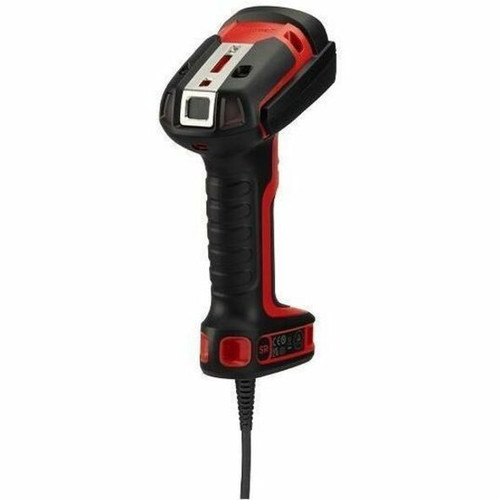

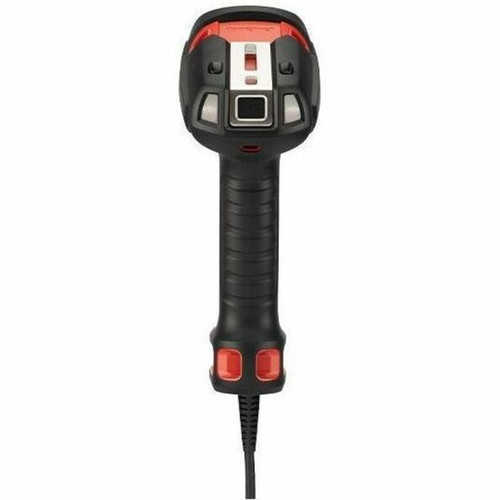

Honeywell GRANIT ULTRA 2100IXR Barcode Scanner Kit - Cable Connectivity - 1D, 2D - Laser - Imager - Area - Serial - Red - IP65, IP68 - (2100IXLR-3SERN)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Reads standard 1D, PDF, 2D, Postal, Digimarc, DOT Code, and OCR symbologies
- 3m (10 ft): MIL-STD-810G, 25C (77°F), 55% RH
- 2.5m (8 ft): 20 drops from -30°C to 50°C (-22°F to 122°F), uncontrolled RH
- 2m (6.5 ft): 50 drops from -30°C to 50°C (-22°F to 122°F), uncontrolled RH
- GRANIT ULTRA 2100IXR Barcode Scanner
- Industrial RS232 Cable (CBL-020-300-C00-01)
Connectivity Technology: Cable
Scanning Capability: 1D,2D
Barcode Symbology Supported:
Light Source: Laser
Image Sensor Type: Imager
Scan Pattern: Area
Scanner Range: Long Range
Cable Type Included: Serial
Field of View (Horizontal): 42°
Field of View (Vertical): 36°
Reading Angle (Skew): 65°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 360°
Motion Tolerance: 157 in/s (3987.80 mm/s)
Maximum Ambient Light: 100000 lux
Drop Specification:
Minimum Print Contrast: 15%
Image Sensor Resolution: 1280 x 1080
Illumination Type: LED
Illumination Color: Green
Air Electrostatic Discharge (+/-): 20kV
Contact Electrostatic Discharge (+/-): 8kV
AI-powered: Yes
Features: Vibration,Beep,Notification LED,Ergonomic Design
Host Interface: Serial
Maximum Operating Power Consumption: 2.75 W
Standby Current: 175 mA
Operating Temperature: -22°F (-30°C) to 122°F (50°C)
Storage Temperature: -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing): 95%
Form Factor: Handheld
Rugged: Yes
Color Family: Red
Product Color: Red
Durability: Impact Resistant,Scratch Resistant,Drop Resistant
Height: 5.49" (139.50 mm)
Width: 2.98" (75.80 mm)
Length: 7.67" (194.80 mm)
Weight (Approximate): 11.64 oz (330 g)
Package Contents:
Ingress Protection (IP) Rating: IP65,IP68
Application/Usage: Warehouse,Distribution,Manufacturing,Picking,Packing
Limited Warranty: 3 Year
- Laser scan engine guarantees rapid error free data entry
- Perfect for applications that require direct association with a workstation or a notebook
[custom-specifications]
| Specifications | |
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | 2100IXLR-3SERN |
| Manufacturer Website Address | http://www.honeywell.com |
| Brand Name | Honeywell |
| Product Line | Granit Ultra |
| Product Model | 2100iXR |
| Product Name | GRANIT ULTRA 2100IXR Barcode Scanner Kit |
| Product Type | Barcode Scanner Kit |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported |
|
| Light Source | Laser |
| Image Sensor Type | Imager |
| Scan Pattern | Area |
| Scanner Range | Long Range |
| Cable Type Included | Serial |
| Field of View (Horizontal) | 42° |
| Field of View (Vertical) | 36° |
| Reading Angle (Skew) | 65° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 360° |
| Motion Tolerance | 157 in/s (3987.80 mm/s) |
| Maximum Ambient Light | 100000 lux |
| Drop Specification |
|
| Minimum Print Contrast | 15% |
| Image Sensor Resolution | 1280 x 1080 |
| Illumination Type | LED |
| Illumination Color | Green |
| Air Electrostatic Discharge (+/-) | 20kV |
| Contact Electrostatic Discharge (+/-) | 8kV |
| AI-powered | Yes |
| Features | Vibration,Beep,Notification LED,Ergonomic Design |
| Interfaces/Ports | |
| Host Interface | Serial |
| Power Description | |
| Maximum Operating Power Consumption | 2.75 W |
| Standby Current | 175 mA |
| Environmental Conditions | |
| Operating Temperature | -22°F (-30°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 95% |
| Physical Characteristics | |
| Form Factor | Handheld |
| Rugged | Yes |
| Color Family | Red |
| Product Color | Red |
| Durability | Impact Resistant,Scratch Resistant,Drop Resistant |
| Height | 5.49" (139.50 mm) |
| Width | 2.98" (75.80 mm) |
| Length | 7.67" (194.80 mm) |
| Weight (Approximate) | 11.64 oz (330 g) |
| Miscellaneous | |
| Package Contents |
|
| Ingress Protection (IP) Rating | IP65,IP68 |
| Application/Usage | Warehouse,Distribution,Manufacturing,Picking,Packing |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
User-Manual
[/custom-user-manual]
