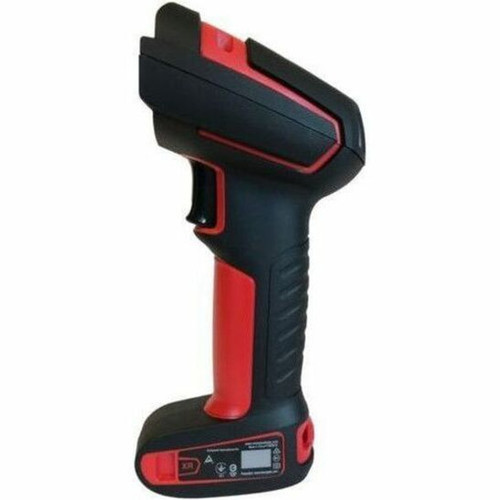

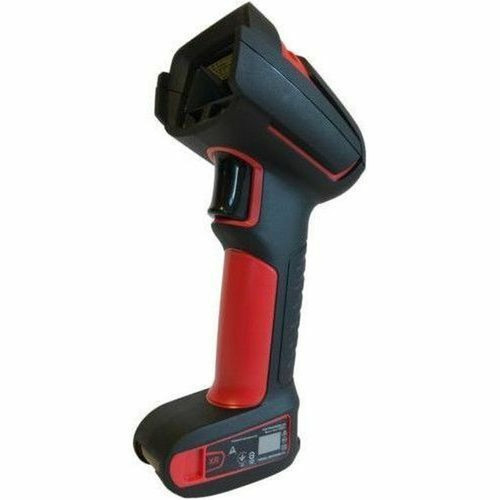

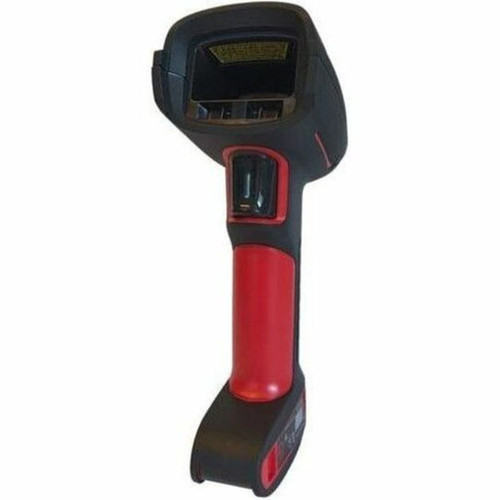

Honeywell Granit XP 1990iXR Barcode Scanner - Cable Connectivity - 23.75 ft (7239 mm) Scan Distance - 2D, 1D - Imager - Area - USB, - (1990IXR-3USB-N)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Reads standard 1D
- 2D
- Postal
- Digimarc
- DOT Code
- OCR symbologies
- 2 m (6.5 ft): 50 drops from -30°C to 50°C (-22°F to 122°F), uncontrolled RH
- 2.4 m (8 ft): 20 drops at 25°C (77°F), 55% RH
- 3 m (10 ft): MIL-STD-810G, 25°C (77°F), 55% RH
Connectivity Technology: Cable
Scanning Capability: 2D,1D
Barcode Symbology Supported:
Image Sensor Type: Imager
Scan Pattern: Area
Scanner Range: Extended Range
Scanning Distance: 23.75 ft (7239 mm)
Field of View (Horizontal): 40°
Field of View (Vertical): 30°
Reading Angle (Skew): 65°
Reading Angle (Pitch): 45°
Reading Angle (Roll): -360°
Motion Tolerance: 177 in/s (4495.80 mm/s)
Maximum Ambient Light: 100000 lux
Drop Specification:
Minimum Print Contrast: 20%
Minimum Element Resolution (Code 39): 5 mil (0.13 mm)
Maximum Element Resolution (Code 39): 100 mil (2.54 mm)
Minimum Element Resolution (DataMatrix): 6 mil (0.15 mm)
Maximum Element Resolution (DataMatrix): 10 mil (0.25 mm)
Minimum Element Resolution (PDF417): 6.70 mil (0.17 mm)
Image Sensor Resolution: 1280 x 800
Air Electrostatic Discharge (+/-): 20kV
Contact Electrostatic Discharge (+/-): 8kV
Features: Vibration,Beep,Notification LED
Host Interface: USB,Keyboard Wedge,Serial
Maximum Operating Power Consumption: 2.35 W
Input Current: 470 mA
Standby Current: 100 mA
Operating Temperature: -22°F (-30°C) to 122°F (50°C)
Storage Temperature: -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing): 95%
Form Factor: Handheld
Rugged: Yes
Color Family: Red
Product Color: Red
Height: 3.94" (100 mm)
Width: 2.99" (76 mm)
Length: 7.56" (192 mm)
Weight (Approximate): 11.29 oz (320 g)
Ingress Protection (IP) Rating: IP67,IP65
Limited Warranty: 3 Year
[custom-specifications]
| Specifications | |
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | 1990IXR-3USB-N |
| Manufacturer Website Address | http://www.honeywell.com |
| Brand Name | Honeywell |
| Product Line | Granit XP |
| Product Model | 1990iXR |
| Product Name | Granit XP 1990iXR Barcode Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 2D,1D |
| Barcode Symbology Supported |
|
| Image Sensor Type | Imager |
| Scan Pattern | Area |
| Scanner Range | Extended Range |
| Scanning Distance | 23.75 ft (7239 mm) |
| Field of View (Horizontal) | 40° |
| Field of View (Vertical) | 30° |
| Reading Angle (Skew) | 65° |
| Reading Angle (Pitch) | 45° |
| Reading Angle (Roll) | -360° |
| Motion Tolerance | 177 in/s (4495.80 mm/s) |
| Maximum Ambient Light | 100000 lux |
| Drop Specification |
|
| Minimum Print Contrast | 20% |
| Minimum Element Resolution (Code 39) | 5 mil (0.13 mm) |
| Maximum Element Resolution (Code 39) | 100 mil (2.54 mm) |
| Minimum Element Resolution (DataMatrix) | 6 mil (0.15 mm) |
| Maximum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Minimum Element Resolution (PDF417) | 6.70 mil (0.17 mm) |
| Image Sensor Resolution | 1280 x 800 |
| Air Electrostatic Discharge (+/-) | 20kV |
| Contact Electrostatic Discharge (+/-) | 8kV |
| Features | Vibration,Beep,Notification LED |
| Interfaces/Ports | |
| Host Interface | USB,Keyboard Wedge,Serial |
| Power Description | |
| Maximum Operating Power Consumption | 2.35 W |
| Input Current | 470 mA |
| Standby Current | 100 mA |
| Environmental Conditions | |
| Operating Temperature | -22°F (-30°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 95% |
| Physical Characteristics | |
| Form Factor | Handheld |
| Rugged | Yes |
| Color Family | Red |
| Product Color | Red |
| Height | 3.94" (100 mm) |
| Width | 2.99" (76 mm) |
| Length | 7.56" (192 mm) |
| Weight (Approximate) | 11.29 oz (320 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP67,IP65 |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
