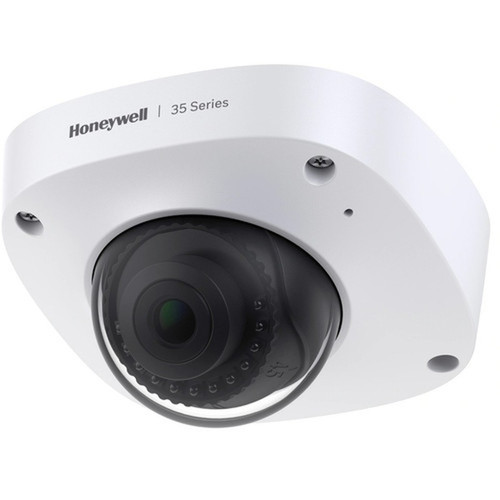

Honeywell HC35W25R3 5MP IP WDR IR Micro Dome Network Camera - Color Signal White - 98. 43 ft IR Night Vision - H. 265 - IP66/67 - IK10
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the HC35W25R3 is a high-sensitivity CMOS image sensor paired with a fixed 2.8 mm f/2.0 lens, offering an 88° horizontal and 65° vertical field of view. Advanced imaging features include Wide Dynamic Range (WDR) for challenging lighting, defog, 2D/3D noise reduction, and automatic white balance to maintain accurate color reproduction.
The camera provides flexible connectivity via a wired RJ-45 network interface and supports both 12V DC and Power over Ethernet (PoE) for simplified installation. Local storage is supported via an SD card slot, and the unit is remotely manageable for easy integration into existing security systems.
Relevant factors for this section include HD Recording, Night Vision, Night Vision Distance, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This Honeywell camera stands out with its combination of high-resolution imaging, extended infrared reach, and exceptional environmental durability. The micro dome form factor provides a discreet profile while the IK10 impact and IP66/67 ingress protection ratings ensure reliable operation in harsh indoor or outdoor conditions.
Superior Low-Light Performance
Infrared illumination delivers clear monochrome video in total darkness up to 98.43 feet, supported by features like gain control and noise reduction for clean images.
- 98.43 ft (30 m) IR range
- Automatic day/night switching
- 2D & 3D noise reduction
Ruggedized Construction
Built to withstand demanding environments with IK10 vandal resistance and IP66/67 ratings for protection against dust, jets of water, and temporary immersion.
- IK10 impact rating
- IP66/67 weatherproof
- -40°F to 140°F operating range
Deployment / Use Cases
The HC35W25R3 is ideally suited for perimeter security, entry/exit monitoring, retail surveillance, and industrial facility protection where clear identification and reliable operation in variable conditions are paramount.
Its compact micro dome design and multiple mounting options—including junction box, pole, and corner mounts—make it versatile for installations in corridors, lobbies, warehouses, and outdoor areas requiring discreet yet robust surveillance.
Relevant factors for this section include HD Recording, Night Vision, Night Vision Distance, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Commercial & Retail Security
Monitor entrances, cash registers, and stock rooms with high-resolution video for loss prevention and incident documentation.
Industrial & Perimeter Monitoring
Withstand extreme temperatures and harsh weather while providing clear identification of personnel and vehicles along fences and gates.
Physical Profile
The camera features a compact micro dome form factor with a 2.22-inch (56.40 mm) diameter and weighs approximately 1.21 pounds (550 grams). Its Signal White finish blends with modern architectural elements while the design supports junction box, pole, and corner mounting for flexible installation.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.21 lb (550 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 1.21 lb (550 g)
- Length
- 2.8 mm (0.11")
Highlights
- 5-megapixel resolution (2592 x 1944) for detailed identification
- 98.43 ft (30 m) infrared night vision with automatic switching
- H.265, H.264, and MJPEG video compression support
- Rugged IP66/67 and IK10-rated housing for harsh environments
- Flexible power via 12V DC or Power over Ethernet (PoE)
- Wide Dynamic Range (WDR) and defog for challenging lighting
- Fixed 2.8 mm lens with 88° horizontal field of view
- SD card slot for local storage backup
- Operating range from -40°F to 140°F (-40°C to 60°C)
- 5-year limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | HC35W25R3 |
| Brand Name | Honeywell |
| Product Series | 35 |
| Product Model | HC35W25R3 |
| Product Name | 5 MP IP WDR IR Micro Dome Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 98.43 ft (30 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | H:88°, V:65° |
| Effective Camera Resolution | 5 Megapixel |
| Video | |
| Video Formats | H.265 (HEVC),H.264,MJPEG |
| Maximum Video Resolution | 2592 x 1944 |
| Maximum Frame Rate | 30 fps |
| Video Signal Format | NTSC,PAL |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm (0.11") |
| Lens Included | Yes |
| Maximum Aperture | f/2.0 |
| Exposure | |
| Shortest Shutter Speed | 1/32000 Second |
| Longest Shutter Speed | 1/8 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source Type | DC,PoE |
| Physical Characteristics | |
| Color Family | White |
| Product Color | Signal White |
| Mount Type | Junction Box Mount,Pole Mount,Corner Mount |
| Form Factor | Micro Dome |
| Diameter | 2.22" (56.40 mm) |
| Weight (Approximate) | 1.21 lb (550 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | SD Card Local Storage,Wide Dynamic Range,Defog,2D Noise Reduction,3D Noise Reduction,Gain Control,Automatic White Balance,Back Light Compensation (BLC),Highlight Compensation (HLC),Day/Night |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66,IP67 |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the effective resolution of this Honeywell network camera?
The Honeywell HC35W25R3 delivers 5-megapixel resolution at 2592 x 1944 pixels, providing high-definition video quality that enables clear identification of subjects and critical details in surveillance footage.
How far does the night vision reach on this camera?
This camera features integrated infrared illumination that provides clear night vision up to 98.43 feet (30 meters) in total darkness, with automatic switching between day and night modes based on lighting conditions.
What video compression formats does this camera support?
The camera supports H.265 (HEVC), H.264, and MJPEG video formats. H.265 compression is particularly efficient, reducing bandwidth and storage requirements while maintaining high video quality.
Is this camera suitable for outdoor installation?
Yes, with an IP66/67 ingress protection rating, the camera is protected against dust, powerful water jets, and temporary immersion. Combined with its IK10 impact rating and operating temperature range of -40°F to 140°F, it is built for demanding outdoor environments.
What power options are available for this network camera?
The HC35W25R3 can be powered either by a standard 12V DC power supply or through Power over Ethernet (PoE), providing installation flexibility and reducing cable requirements when connected to a PoE switch or injector.
What mounting options does this micro dome camera support?
This camera supports junction box mounting, pole mounting, and corner mounting, offering versatile installation options for various surveillance scenarios in commercial, retail, and industrial settings.
