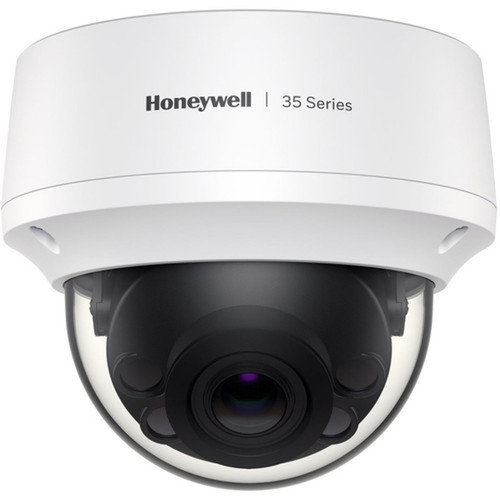

Honeywell HC35W43R2 3MP Network Camera - Mini Dome - Signal White - 164 ft IR Night Vision - H. 265 - Varifocal Lens - IP66/67
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera utilizes a CMOS image sensor that supports full-color video and efficient power consumption. The H.265 (HEVC) video compression significantly reduces bandwidth and storage requirements without compromising image clarity, while maintaining compatibility with H.264 and MJPEG formats for flexible integration. The camera supports NTSC and PAL signal formats, ensuring global compatibility.
Local storage is facilitated through an SD card slot, allowing for onboard recording without continuous network dependency. The camera's exposure control ranges from 1/32000 to 1/8 second, enabling crisp capture of fast-moving objects and adaptation to varying light levels. With a minimum operating temperature of -40°F (-40°C) and a maximum of 140°F (60°C), it performs reliably in extreme climates.
This section brings together practical product details such as HD Recording, Night Vision, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The HC35W43R2 stands out with its combination of high-resolution imaging, extended night vision, and rugged design. The 164-foot infrared night vision ensures reliable surveillance in complete darkness, while the varifocal lens allows precise adjustment to match specific monitoring needs without requiring lens swaps.
Rugged Construction
Built to withstand harsh environments, the camera's IP66/67 rating guarantees protection against dust and water ingress, and the IK10 impact rating resists physical damage, ensuring long-term durability in public or industrial settings.
- Water Proof
- Dust Proof
- Impact Resistant
Efficient Video Management
H.265 compression reduces bandwidth usage by up to 50% compared to H.264, lowering network load and storage costs while maintaining high video quality. This makes the camera ideal for large-scale deployments where efficiency is critical.
Deployment / Use Cases
This camera is designed for versatile deployment across commercial, industrial, and institutional settings. Its mini dome design and multiple mounting options allow for discreet installation on ceilings, walls, poles, or corners, making it suitable for retail stores, warehouses, parking lots, and educational campuses.
The PoE support simplifies installation by delivering both power and data over a single Ethernet cable, reducing wiring complexity and costs. With features like motion detection and remote management, it integrates seamlessly into existing security systems, providing scalable surveillance solutions that enhance safety and operational oversight.
Retail & Commercial Security
Monitor entrances, aisles, and cash registers with clear 3MP video, using the varifocal lens to zoom in on transaction areas or wide-angle views for overall store coverage.
Industrial & Outdoor Monitoring
Withstand extreme temperatures and weather conditions while providing reliable night vision for perimeter security, loading docks, or remote facilities.
Physical Profile
The camera features a compact mini dome form factor with a diameter of 5.12 inches (130 mm) and a weight of 1.90 pounds (860 g), ensuring easy installation and minimal visual intrusion. The Signal White finish blends with modern architectural designs, while the rugged housing maintains a professional appearance in diverse environments.
- Weight
- 1.90 lb (860 g)
- Length
- 2.7 mm (0.11")
Highlights
- 3-megapixel resolution for detailed 2304 x 1296 video at 30 fps
- 164-foot infrared night vision ensures clear monitoring in total darkness
- Varifocal lens with 5x optical zoom for flexible field-of-view adjustment
- H.265 video compression reduces bandwidth and storage requirements
- IP66/67 and IK10 ratings for water, dust, and impact resistance
- Power over Ethernet (PoE) support for simplified installation
- Wide Dynamic Range optimizes video in high-contrast lighting
- Multiple mounting options: ceiling, wall, pole, junction box, corner, box
- Operating temperature range from -40°F to 140°F for extreme climates
- 5-year limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | HC35W43R2 |
| Brand Name | Honeywell |
| Product Series | 35 |
| Product Model | HC35W43R2 |
| Product Name | 3MP/5MP/8MP IP WDR IR Rugged Mini Dome Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 164.04 ft (50 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | H: H:88°-24°, V:48°-14° |
| Effective Camera Resolution | 3 Megapixel |
| Video | |
| Video Formats | H.265 (HEVC),H.264,MJPEG |
| Maximum Video Resolution | 2304 x 1296 |
| Maximum Frame Rate | 30 fps |
| Video Signal Format | NTSC,PAL |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 2.7 mm (0.11") |
| Maximum Focal Length | 13.5 mm (0.53") |
| Lens Included | Yes |
| Minimum Aperture | f/3.3 |
| Maximum Aperture | f/1.6 |
| Optical Zoom | 5x |
| Exposure | |
| Shortest Shutter Speed | 1/32000 Second |
| Longest Shutter Speed | 1/8 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source Type | DC,PoE |
| Physical Characteristics | |
| Color Family | White |
| Product Color | Signal White |
| Mount Type | Junction Box Mount,Ceiling Mount,Wall Mount,Pole Mount,Corner Mount,Box Mount |
| Form Factor | Mini Dome |
| Durability | Water Proof,Dust Proof,Impact Resistant |
| Diameter | 5.12" (130 mm) |
| Weight (Approximate) | 1.90 lb (860 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | SD Card Local Storage,Wide Dynamic Range,Motion Detection,2D Noise Reduction,3D Noise Reduction,Gain Control,Automatic White Balance,Back Light Compensation (BLC),Highlight Compensation (HLC),Rugged Design |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66,IP67 |
| Country of Origin | Vietnam |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the resolution and video quality of this camera?
The Honeywell HC35W43R2 delivers 3-megapixel video at a maximum resolution of 2304 x 1296 and 30 frames per second. This provides sharp, detailed imagery suitable for identifying faces, license plates, or other critical details in surveillance footage. The camera supports H.265 compression, which maintains high quality while reducing bandwidth and storage needs compared to older formats like H.264.
How far does the night vision reach, and what type is it?
This camera features infrared night vision with a range of 164.04 feet (50 meters). The infrared illumination allows for clear black-and-white video in complete darkness, ensuring reliable monitoring during nighttime hours without requiring external lighting. This makes it effective for outdoor or low-light indoor applications.
Can I adjust the camera's field of view after installation?
Yes, the camera includes a varifocal lens with a 5x optical zoom, allowing you to adjust the focal length from 2.7 mm to 13.5 mm. This lets you fine-tune the field of view from wide-angle (88° horizontal) to telephoto (24° horizontal) without changing lenses, providing flexibility to cover large areas or focus on specific points during setup.
Is this camera suitable for outdoor use in harsh weather?
Absolutely. The HC35W43R2 is built for rugged environments with an IP66/67 rating for protection against dust and water ingress, and an IK10 impact rating for resistance to physical shocks. It operates in temperatures from -40°F to 140°F and up to 90% humidity, making it reliable for outdoor installations in extreme weather conditions.
What power options are available for this network camera?
This camera supports both 12 V DC power and Power over Ethernet (PoE). PoE allows you to deliver power and data over a single Ethernet cable, simplifying installation and reducing wiring costs. This flexibility makes it easy to integrate into existing network infrastructures or deploy in locations without convenient power outlets.
Does the camera include local storage capabilities?
Yes, the camera features an SD card slot for local storage, enabling onboard recording without continuous network connectivity. This provides a backup option or primary storage solution for video footage, enhancing reliability in case of network interruptions. It also supports remote management for easy access and control over stored content.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
