Honeywell HC35WB3R3 3MP IP WDR IR Fixed Bullet Camera - 2304 x 1296 Resolution - 131. 23 ft IR Night Vision - PoE/DC - IP66/IP67 - IK10
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This network camera utilizes a CMOS image sensor with a fixed 2.8mm lens offering an 88° horizontal and 47° vertical field of view. Video encoding supports modern H.265 (HEVC) and H.264 compression formats alongside MJPEG, optimizing bandwidth usage while maintaining quality.
The camera's imaging capabilities include wide dynamic range (WDR), motion detection, 2D/3D noise reduction, gain control, automatic white balance, back light compensation, highlight compensation, and region of interest settings for enhanced performance in challenging lighting conditions.
This section brings together practical product details such as HD Recording, Night Vision, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This Honeywell bullet camera combines high-resolution imaging with extended infrared night vision and enterprise-grade durability for reliable 24/7 surveillance operations.
Extended Night Vision Coverage
Infrared illumination provides clear monitoring up to 131.23 feet (40 meters) in complete darkness, ensuring continuous security coverage day and night.
- Infrared night vision
- 131.23 ft (40 m) range
- Color imaging in daylight
Robust Environmental Protection
IP66/IP67 ratings guarantee protection against dust ingress and water jets, while IK10 impact resistance withstands physical attacks, making this camera suitable for outdoor and high-risk environments.
- IP66/IP67 certified
- IK10 impact rated
- Water and dust proof
Flexible Power and Storage
Dual power options through 12V DC or Power over Ethernet (PoE) simplify installation, while local SD card storage provides backup recording capability without requiring continuous network connectivity.
- PoE or 12V DC power
- SD card local storage
- Wired network connectivity
Deployment / Use Cases
The HC35WB3R3 is engineered for perimeter security, entry point monitoring, and outdoor surveillance applications where reliable performance in varying environmental conditions is essential.
Commercial and industrial facilities benefit from this camera's rugged construction and extended temperature range operation from -40°F to 140°F (-40°C to 60°C). The multiple mounting options enable installation on building corners, poles, or junction boxes for optimal coverage of parking lots, loading docks, building exteriors, and perimeter fences.
Perimeter Security Monitoring
Deploy along property boundaries with infrared night vision covering distances up to 131 feet, providing continuous monitoring of fence lines and access points.
- Long-range night vision
- Multiple mounting options
- Weather-resistant construction
Entry and Exit Point Surveillance
Monitor building entrances, gates, and loading areas with the camera's 3MP resolution capturing clear facial and vehicle details for identification purposes.
- High-resolution imaging
- Wide dynamic range
- Motion detection capability
Physical Profile

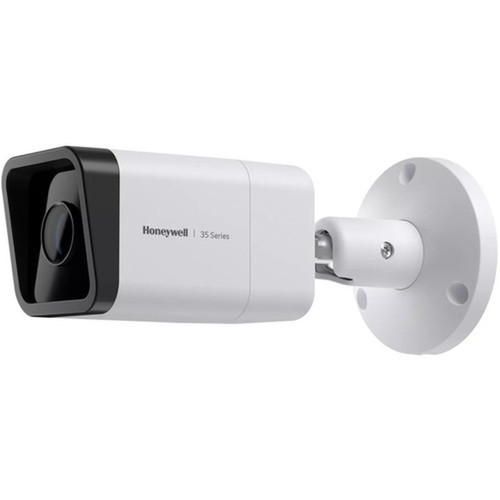

This bullet camera features a compact cylindrical design with 3.43-inch (87 mm) diameter housing in Signal White finish. The 1.54-pound (700 g) weight and multiple mounting options including junction box, pole, and corner mounts facilitate secure installation in various orientations and locations.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.54 lb (700 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 1.54 lb (700 g)
- Length
- 2.8 mm (0.11")
Highlights
- 3-megapixel resolution (2304 x 1296) for detailed surveillance imagery
- Infrared night vision covering 131.23 feet (40 meters) in complete darkness
- Dual power options: 12V DC or Power over Ethernet (PoE) for installation flexibility
- IP66/IP67 rated for dust and water resistance in outdoor environments
- IK10 impact protection rating for physical durability
- H.265 and H.264 video compression for efficient bandwidth usage
- Wide dynamic range (WDR) for balanced imaging in high-contrast lighting
- Operating temperature range from -40°F to 140°F (-40°C to 60°C)
- Multiple mounting options: junction box, pole, and corner mounts
- 5-year limited warranty for long-term reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | HC35WB3R3 |
| Brand Name | Honeywell |
| Product Series | 35 |
| Product Model | HC35WB3R3 |
| Product Name | 3MP/5MP/8MP IP WDR IR Fixed Bullet Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 131.23 ft (40 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | H:88°, V:47° |
| Effective Camera Resolution | 3 Megapixel |
| Video | |
| Video Formats | H.265 (HEVC),H.264,MJPEG |
| Maximum Video Resolution | 2304 x 1296 |
| Maximum Frame Rate | 30 fps |
| Video Signal Format | NTSC,PAL |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm (0.11") |
| Lens Included | Yes |
| Maximum Aperture | f/1.6 |
| Exposure | |
| Shortest Shutter Speed | 1/32000 Second |
| Longest Shutter Speed | 1/8 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source Type | DC,PoE |
| Physical Characteristics | |
| Color Family | White |
| Product Color | Signal White |
| Mount Type | Junction Box Mount,Pole Mount,Corner Mount |
| Form Factor | Bullet |
| Durability | Water Proof,Dust Proof |
| Diameter | 3.43" (87 mm) |
| Weight (Approximate) | 1.54 lb (700 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | SD Card Local Storage,Wide Dynamic Range,Motion Detection,2D Noise Reduction,3D Noise Reduction,Gain Control,Automatic White Balance,Back Light Compensation (BLC),Highlight Compensation (HLC),Region of Interest |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66,IP67 |
| Country of Origin | Vietnam |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the maximum resolution of this Honeywell bullet camera?
The HC35WB3R3 delivers 3-megapixel resolution at 2304 x 1296 pixels, providing detailed imagery suitable for identification purposes in surveillance applications. This resolution supports clear monitoring of faces, license plates, and other critical details at appropriate distances.
How far does the night vision reach on this camera?
Infrared illumination provides effective night vision coverage up to 131.23 feet (40 meters) in complete darkness. This extended range ensures continuous security monitoring during nighttime hours for perimeter security and outdoor surveillance applications.
What power options are available for this network camera?
This camera supports dual power input methods: standard 12V DC power or Power over Ethernet (PoE). The PoE capability simplifies installation by delivering both power and data through a single Ethernet cable, reducing wiring complexity and costs.
Is this camera suitable for outdoor installation?
Yes, the HC35WB3R3 is designed for outdoor use with IP66/IP67 ingress protection ratings against dust and water, plus IK10 impact resistance. It operates in temperatures from -40°F to 140°F (-40°C to 60°C) and withstands humidity up to 90%.
What video compression formats does this camera support?
This camera encodes video using H.265 (HEVC), H.264, and MJPEG formats. H.265 provides efficient bandwidth utilization while maintaining video quality, making it ideal for network surveillance systems where storage and bandwidth optimization are important considerations.
What mounting options are available for installation?
The camera supports junction box mounting, pole mounting, and corner mounting configurations. This flexibility allows installation in various orientations and locations to achieve optimal viewing angles for different surveillance scenarios and architectural requirements.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
