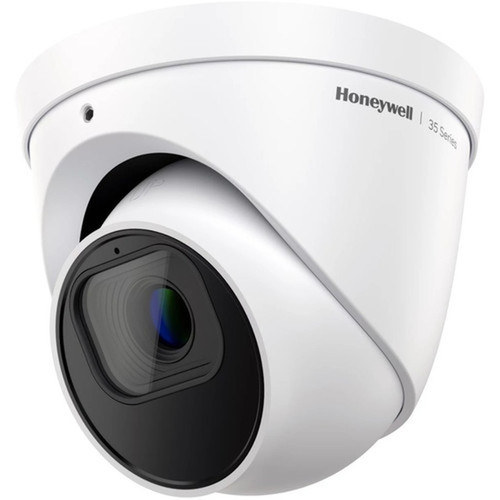

Honeywell HC35WE3R3 3MP IP WDR IR Fixed Ball Camera - Color - Signal White - 131. 23 ft Night Vision - H. 265 - IP66/IP67 - IK10
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera utilizes a CMOS image sensor for cost-effective power efficiency and high-quality HD video output. It supports multiple video signal formats including NTSC and PAL, ensuring compatibility with various regional systems. The fixed 2.8 mm lens provides a consistent field of view, while advanced imaging features like automatic white balance, backlight compensation, and 2D/3D noise reduction enhance video clarity in challenging lighting conditions.
Exposure control ranges from 1/32000 second to 1/8 second, allowing for crisp capture of both fast-moving objects and low-light scenes. The camera's video processing includes region of interest (ROI) functionality and gain control for optimized performance across different surveillance scenarios.
This section brings together practical product details such as HD Recording, Night Vision, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The HC35WE3R3 combines imaging performance with physical durability for surveillance applications where reliability is critical. Its support for Power over Ethernet (PoE) simplifies installation by delivering both data and power through a single cable, reducing wiring complexity and costs.
Extended Night Coverage
Infrared illumination reaches 131.23 feet (40 meters), providing reliable surveillance in complete darkness without additional lighting.
- Infrared night vision type
- 40-meter effective distance
- Suitable for perimeter security
Environmental Resilience
Rated IP66/IP67 for dust and water resistance plus IK10 impact protection, ensuring operation in harsh indoor and outdoor conditions.
- Waterproof and dustproof construction
- Wide temperature range: -40°F to 140°F
- 90% maximum operating humidity tolerance
Deployment / Use Cases
This camera is particularly effective for applications requiring consistent video quality across day and night cycles. The ball form factor and Signal White color provide aesthetic flexibility for retail environments, office buildings, educational facilities, and healthcare settings where discreet surveillance is preferred.
Installation versatility is enhanced through support for junction box, pole, corner, ceiling, and wall mounting configurations. The camera's 4.33-inch diameter and 1.32-pound weight facilitate installation in space-constrained locations while maintaining a professional appearance.
Commercial Perimeter Security
Monitor building exteriors, parking lots, and entry points with weatherproof construction and long-range night vision.
- IP66/IP67 rating for outdoor use
- Multiple mounting options
- Motion detection for alerting
Industrial Facility Monitoring
Supervise warehouses, manufacturing floors, and loading docks where dust, moisture, or temperature extremes are present.
- IK10 impact resistance
- Wide operating temperature range
- WDR for high-contrast areas
Physical Profile
The HC35WE3R3 features a compact ball design with a 4.33-inch (110 mm) diameter and approximate weight of 1.32 pounds (600 grams). Its Signal White finish blends with modern architectural elements while providing UV resistance for long-term color stability. The camera's construction includes durable materials that maintain performance across the specified temperature and humidity ranges, with sealed housing that prevents moisture and dust ingress according to IP66/IP67 standards.
- Weight
- 1.32 lb (600 g)
- Length
- 2.8 mm (0.11")
Highlights
- 3-megapixel resolution for detailed 2304 x 1296 video capture
- Infrared night vision effective up to 131.23 feet (40 meters)
- H.265 (HEVC) video compression for efficient bandwidth and storage usage
- IP66/IP67 weatherproof rating and IK10 impact resistance
- Power over Ethernet (PoE) support for simplified installation
- Wide Dynamic Range (WDR) for balanced imaging in high-contrast scenes
- Multiple mounting options: junction box, pole, corner, ceiling, and wall
- 5-year limited warranty for long-term reliability assurance
- CMOS sensor with low power consumption and HD video quality
- SD card slot for local storage without network dependency
Specifications
| Specifications | |
|---|---|
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | HC35WE3R3 |
| Brand Name | Honeywell |
| Product Series | 35 |
| Product Model | HC35WE3R3 |
| Product Name | 3MP/5MP/8MP IP WDR IR Fixed Ball Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 131.23 ft (40 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | H:88°, V:47° |
| Effective Camera Resolution | 3 Megapixel |
| Video | |
| Video Formats | H.265 (HEVC),H.264,MJPEG |
| Maximum Video Resolution | 2304 x 1296 |
| Maximum Frame Rate | 30 fps |
| Video Signal Format | NTSC,PAL |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm (0.11") |
| Lens Included | Yes |
| Maximum Aperture | f/1.6 |
| Exposure | |
| Shortest Shutter Speed | 1/32000 Second |
| Longest Shutter Speed | 1/8 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source Type | DC,PoE |
| Physical Characteristics | |
| Color Family | White |
| Product Color | Signal White |
| Mount Type | Junction Box Mount,Pole Mount,Corner Mount,Ceiling Mount,Wall Mount |
| Form Factor | Ball |
| Durability | Water Proof,Dust Proof |
| Diameter | 4.33" (110 mm) |
| Weight (Approximate) | 1.32 lb (600 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | SD Card Local Storage,Wide Dynamic Range,Motion Detection,2D Noise Reduction,3D Noise Reduction,Gain Control,Automatic White Balance,Back Light Compensation (BLC),Highlight Compensation (HLC),Region of Interest |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66,IP67 |
| Country of Origin | Vietnam |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the effective surveillance distance of this camera at night?
The Honeywell HC35WE3R3 provides infrared night vision coverage up to 131.23 feet (40 meters). This allows for clear monitoring of subjects in complete darkness across typical commercial perimeter distances without requiring additional lighting infrastructure.
What video resolutions and compression formats does this camera support?
This camera captures video at up to 2304 x 1296 resolution (3 megapixel) and supports H.265 (HEVC), H.264, and MJPEG compression formats. H.265 encoding provides efficient bandwidth usage while maintaining video quality, making it suitable for network-constrained installations.
How weatherproof and durable is this network camera?
The camera carries IP66 and IP67 ingress protection ratings, making it dust-tight and capable of withstanding powerful water jets and temporary immersion. It also features IK10 impact resistance, protecting against 20 joules of impact energy equivalent to 11 pounds dropped from 16 inches.
What power options are available for this camera?
The HC35WE3R3 supports both 12V DC power input and Power over Ethernet (PoE). PoE allows for single-cable installation that delivers both data and power, reducing wiring complexity and enabling placement in locations without convenient power outlets.
What mounting options does this ball camera support?
This camera accommodates junction box, pole, corner, ceiling, and wall mounting configurations. The ball form factor provides flexible positioning for optimal viewing angles across different installation scenarios in commercial and industrial environments.
What advanced imaging features enhance video quality?
The camera includes Wide Dynamic Range (WDR) for balanced exposure in high-contrast scenes, motion detection for alert generation, 2D and 3D noise reduction for cleaner low-light video, automatic white balance, backlight compensation, highlight compensation, and region of interest (ROI) focusing.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
