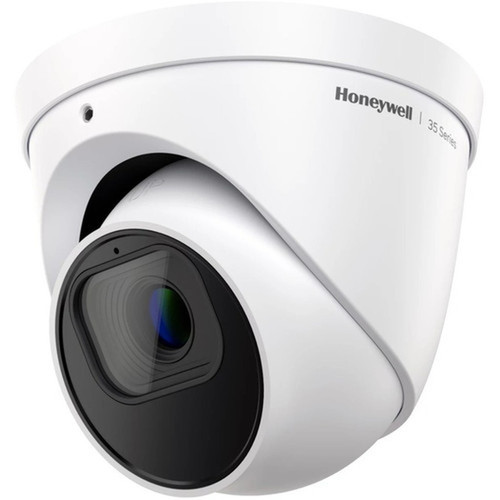

Honeywell HC35WE8R3 8MP 4K Network Camera - Signal White Ball - Infrared Night Vision 131 ft - H. 265 - PoE - IP66/IP67
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera utilizes a CMOS image sensor that balances power efficiency with high-definition video performance. The fixed 2.8 mm lens with an f/2.0 aperture captures broad scenes with clarity, while exposure control ranges from 1/32000 to 1/8 second to handle varying lighting conditions.
Network connectivity is provided through a wired RJ-45 interface, supporting Power over Ethernet for simplified installation. The camera includes SD card local storage capability and features advanced imaging technologies such as Wide Dynamic Range, motion detection, and 2D/3D noise reduction for optimized video output.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The HC35WE8R3 combines high-resolution imaging with industrial-grade durability, making it suitable for demanding surveillance environments. Its 8MP sensor captures fine details essential for forensic review, while infrared illumination ensures reliable performance in complete darkness.
Enhanced Video Quality
4K resolution and H.265 compression deliver sharp video with efficient bandwidth and storage usage, supported by features like automatic white balance and backlight compensation.
- 8MP CMOS sensor
- H.265, H.264, MJPEG formats
- Wide Dynamic Range
Rugged Environmental Design
IP66/IP67 ratings protect against dust and water ingress, while the IK10 impact rating ensures resistance to physical damage. The camera operates in extreme temperatures from -40°F to 140°F.
- IP66/IP67 certified
- IK10 impact protection
- Extended temperature range
Deployment / Use Cases
This camera is ideal for perimeter security, parking lots, retail spaces, and industrial facilities where high-resolution monitoring and night vision are critical. Its multiple mounting options allow flexible installation on walls, ceilings, poles, or junction boxes.
The PoE capability reduces wiring complexity, making it suitable for new installations or upgrades in existing network infrastructure. Remote management features enable centralized control and monitoring across distributed sites.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Outdoor Perimeter Security
Deploy along fences, gates, or building exteriors to monitor access points with clear 4K video, leveraging the 131-foot night vision and weatherproof construction.
Commercial & Industrial Surveillance
Use in warehouses, manufacturing floors, or retail environments where detailed imaging and durability against dust, moisture, and temperature fluctuations are required.
Physical Profile
The camera features a compact ball form factor with a 4.33-inch diameter and weight of 1.32 pounds, designed for discreet installation. Its Signal White finish blends with modern architectural elements while providing high visibility in security contexts.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.32 lb (600 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 1.32 lb (600 g)
- Length
- 2.8 mm (0.11")
Highlights
- 8-megapixel 4K resolution for detailed video capture
- Infrared night vision up to 131.23 feet (40 meters)
- H.265 video compression for efficient storage and bandwidth
- Power over Ethernet (PoE) support simplifies installation
- IP66/IP67 and IK10 ratings for dust, water, and impact resistance
- Wide 97° horizontal field of view covers broad areas
- Multiple mounting options: wall, ceiling, pole, junction box, corner
- Operates in extreme temperatures from -40°F to 140°F
- Includes SD card local storage and remote management
- 5-year limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | HC35WE8R3 |
| Brand Name | Honeywell |
| Product Series | 35 |
| Product Model | HC35WE8R3 |
| Product Name | 3MP/5MP/8MP IP WDR IR Fixed Ball Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | 4K |
| Night Vision | Yes |
| Night Vision Distance | 131.23 ft (40 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | H:97°, V:52° |
| Effective Camera Resolution | 8 Megapixel |
| Video | |
| Video Formats | H.265 (HEVC),H.264,MJPEG |
| Maximum Video Resolution | 3840 x 2160 |
| Maximum Frame Rate | 30 fps |
| Video Signal Format | NTSC,PAL |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm (0.11") |
| Lens Included | Yes |
| Maximum Aperture | f/2.0 |
| Exposure | |
| Shortest Shutter Speed | 1/32000 Second |
| Longest Shutter Speed | 1/8 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source Type | DC,PoE |
| Physical Characteristics | |
| Color Family | White |
| Product Color | Signal White |
| Mount Type | Junction Box Mount,Pole Mount,Corner Mount,Ceiling Mount,Wall Mount |
| Form Factor | Ball |
| Durability | Water Proof,Dust Proof |
| Diameter | 4.33" (110 mm) |
| Weight (Approximate) | 1.32 lb (600 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | SD Card Local Storage,Wide Dynamic Range,Motion Detection,2D Noise Reduction,3D Noise Reduction,Gain Control,Automatic White Balance,Back Light Compensation (BLC),Highlight Compensation (HLC),Region of Interest |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66,IP67 |
| Country of Origin | Vietnam |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the maximum video resolution of the Honeywell HC35WE8R3 camera?
The camera supports 8-megapixel resolution at 3840 x 2160 (4K UHD), delivering crisp, detailed video suitable for identification and monitoring applications. It records at up to 30 frames per second in H.265, H.264, or MJPEG formats.
How far does the night vision reach on this network camera?
Infrared illumination provides clear night vision up to 131.23 feet (40 meters), ensuring reliable surveillance in low-light or complete darkness. The camera automatically switches to night mode based on lighting conditions.
What power options are available for the HC35WE8R3?
The camera supports both 12 V DC power input and Power over Ethernet (PoE), allowing flexible installation without separate power wiring. PoE simplifies deployment by delivering power and data through a single Ethernet cable.
Is this camera suitable for outdoor use?
Yes, with IP66 and IP67 ingress protection ratings, the camera is dust-tight and waterproof, capable of withstanding harsh weather. It also has an IK10 impact rating and operates in temperatures from -40°F to 140°F, making it ideal for outdoor environments.
What mounting options does this ball camera support?
It can be mounted on walls, ceilings, poles, junction boxes, or corners, offering installation flexibility for various surveillance scenarios. The ball design allows for adjustable positioning to achieve the desired viewing angle.
Does the camera include local storage capability?
Yes, it features SD card local storage for recording video directly on the device, providing a backup or primary storage solution. This is complemented by remote management over the network for centralized control.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
