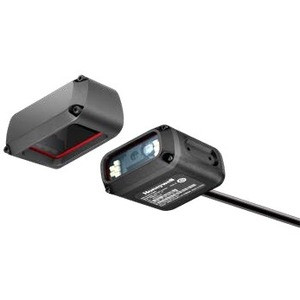

Honeywell HF800SR-R1-1V Fixed-Mount 2D Industrial Barcode Scanner - Imager - 18. 9" Scan Distance - Ethernet/Serial - IP65
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The HF800SR-R1-1V utilizes an advanced imager sensor capable of reading a wide range of barcode symbologies, including PDF417, Aztec, QR Code, Maxicode, Datamatrix, and traditional 1D barcodes. It achieves a scanning distance of 18.9 inches (480 mm), allowing for versatile placement relative to the target surface.
Resolution performance is a key strength, with a minimum element resolution of 5 mil (0.13 mm) for Code 39 and 10 mil (0.25 mm) for DataMatrix, ensuring accurate decoding of high-density and small barcodes. The maximum element resolution for DataMatrix is 20 mil (0.51 mm), accommodating various print qualities.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Host Interface, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This scanner combines industrial durability with advanced scanning technology to deliver reliable performance in challenging environments. Its IP65 rating protects against dust and water ingress, while the fixed-mount design ensures stable, hands-free operation.
High-Density Decoding
Capable of reading 5 mil Code 39 and 10 mil DataMatrix barcodes, making it ideal for applications with limited space or high information density.
- Supports DPM (Direct Part Mark)
- Decodes 2D and 1D symbologies
Flexible Connectivity
Offers both Ethernet and Serial interfaces, allowing integration into a variety of industrial networks and legacy systems without additional adapters.
- Ethernet for network integration
- Serial for direct device connection
Industrial Durability
Built to withstand harsh conditions with an IP65 rating, ensuring reliable operation in environments with dust, moisture, or occasional water exposure.
- Dust-tight construction
- Protected against water jets
Deployment / Use Cases
The Honeywell HF800SR-R1-1V is designed for fixed installation in industrial and logistics settings where automated barcode scanning improves efficiency and accuracy. Its robust build and precise decoding make it suitable for integration into production lines, sorting systems, and quality control stations.
Common applications include manufacturing assembly lines for part tracking, warehouse conveyor systems for package sorting, and distribution centers for inventory management. The scanner's ability to read DPM barcodes directly marked on metal, plastic, or other surfaces makes it valuable in automotive, electronics, and aerospace industries where traditional labels may not be feasible.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Host Interface, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile
The scanner features a fixed-mount form factor with a compact and lightweight design, weighing approximately 9.35 ounces (265 grams). This allows for easy installation on machinery, racks, or walls without adding significant bulk. The IP65-rated enclosure ensures protection against dust and water jets, maintaining performance in industrial conditions.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 9.35 oz (265 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 9.35 oz (265 g)
Highlights
- Fixed-mount 2D industrial barcode scanner with imager sensor
- Scans both 2D and 1D barcodes, including DPM, QR Code, and DataMatrix
- 18.9-inch (480 mm) scanning distance for flexible placement
- High-resolution decoding: 5 mil Code 39, 10 mil DataMatrix
- Ethernet and Serial host interfaces for versatile connectivity
- IP65 rating for dust and water jet protection
- Industrial-grade construction for harsh environments
- 3-year limited warranty for long-term reliability
- PC platform supported for easy integration
- Lightweight design at 9.35 oz (265 g) for easy mounting
Specifications
| Specifications | |
|---|---|
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | HF800SR-R1-1V |
| Brand Name | Honeywell |
| Product Model | HF800SR |
| Product Name | HF800 Fixed-mounting 2D Industrial Reader |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 2D,1D |
| Barcode Symbology Supported | Decode Capability: DPM PDF417 Aztec QR Code Maxicode Datamatrix 2D Barcodes 1D Barcode |
| Image Sensor Type | Imager |
| Scanning Distance | 18.90" (480 mm) |
| Minimum Element Resolution (Code 39) | 5 mil (0.13 mm) |
| Minimum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Maximum Element Resolution (DataMatrix) | 20 mil (0.51 mm) |
| Interfaces/Ports | |
| Host Interface | Ethernet,Serial |
| Physical Characteristics | |
| Form Factor | Fixed Mount |
| Weight (Approximate) | 9.35 oz (265 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP65 |
| Application/Usage | Industrial |
| Platform Supported | PC |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What types of barcodes can the Honeywell HF800SR-R1-1V scanner read?
The scanner reads both 2D and 1D barcodes, including symbologies such as DPM (Direct Part Mark), PDF417, Aztec, QR Code, Maxicode, Datamatrix, and traditional 1D barcodes. This wide compatibility makes it suitable for various industrial and logistics applications where different barcode types are used.
What is the scanning distance of this barcode scanner?
The Honeywell HF800SR-R1-1V has a scanning distance of 18.9 inches (480 mm). This allows for flexible installation options, enabling the scanner to be mounted at an optimal distance from conveyor belts, production lines, or other surfaces where barcodes are presented.
What connectivity options does the scanner support?
The scanner supports Ethernet and Serial host interfaces. Ethernet connectivity allows for integration into network-based systems, while Serial provides compatibility with legacy equipment. Both options offer reliable data transmission for industrial environments.
What does the IP65 rating mean for this scanner?
The IP65 rating indicates that the scanner is dust-tight and protected against water jets from any direction. This makes it suitable for use in industrial settings where exposure to dust, moisture, or occasional water splashes may occur, ensuring durability and consistent performance.
Is this scanner suitable for reading direct part marks (DPM)?
Yes, the Honeywell HF800SR-R1-1V is capable of reading direct part marks (DPM), which are barcodes etched or stamped directly onto metal, plastic, or other surfaces. This feature is essential in manufacturing industries where traditional labels are not feasible or durable enough.
What is the warranty period for this barcode scanner?
The scanner comes with a 3-year limited warranty, providing coverage for defects in materials and workmanship. This warranty supports long-term reliability and peace of mind for industrial deployments where continuous operation is critical.
What duplex or duty-cycle detail is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
What connectivity options are listed?
Connectivity details help confirm how the product integrates with your network, accessories, and surrounding peripherals before rollout or replacement planning. They are often the difference between a technically compatible device and one that is genuinely easy to deploy.
