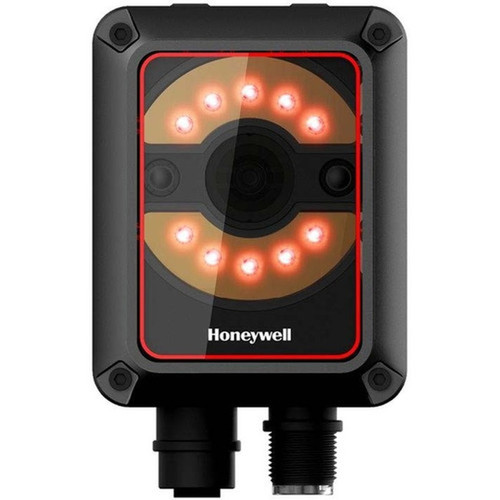

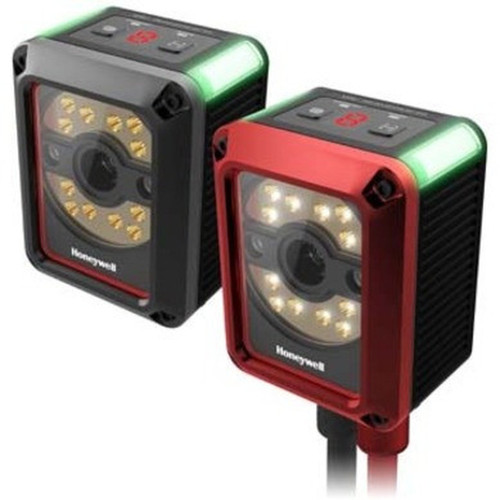

Honeywell HF810-01RT00004K-R HF810 Fixed Mount Scanner - 1D/2D Imager - Serial/Ethernet - IP65 Industrial - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The HF810 features a high-performance imager that captures both 1D and 2D barcodes, including challenging direct part marked (DPM) codes. It supports a wide range of symbologies: 1D DPM, PDF417, and 2D formats such as QR, Datamatrix, Maxicode, and Aztec.
This scanner operates effectively in bright environments with a maximum ambient light tolerance of 100,000 lux. Its 20° horizontal and 11° vertical field of view provides precise targeting for consistent read rates across various barcode placements.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Host Interface, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The HF810 delivers industrial-grade durability and scanning performance in a compact fixed-mount design. Its combination of environmental protection, versatile connectivity, and advanced decoding capabilities makes it a reliable choice for automated scanning systems.
Rugged Construction
IP65 rating ensures protection against dust and water jets, maintaining operation in harsh industrial conditions.
- Dust-tight enclosure
- Water-resistant design
- Industrial temperature tolerance
Versatile Connectivity
Serial and Ethernet interfaces provide flexible integration options for various host systems and network architectures.
- Serial RS-232 support
- Ethernet 10/100 connectivity
- Cable-based connection
Advanced Decoding
Captures both 1D and 2D barcodes including direct part marked codes that are laser-etched or dot-peened onto surfaces.
- DPM decoding capability
- Wide symbology support
- High first-read rate
Deployment / Use Cases
The HF810 fixed mount scanner is designed for integration into automated material handling systems where consistent, hands-free scanning is required. Its compact form factor and robust construction make it ideal for mounting on conveyor lines, sortation systems, and workstations.
In warehouse applications, the scanner efficiently processes carton labels, pallet tags, and item-level barcodes as products move through distribution channels. Manufacturing facilities benefit from its ability to read DPM codes on components and assemblies throughout production processes.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Host Interface, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile
The HF810 features a compact black housing measuring 2.76" high × 2.17" wide × 1.77" deep (70 × 55 × 45 mm) with a weight of 6.35 oz (180 g). This small footprint allows for installation in tight spaces while maintaining a low profile in automated systems. The fixed mount design provides stable positioning for consistent scanning performance.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2.76" (70 mm), 2.17" (55 mm), 1.77" (45 mm), 6.35 oz (180 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 2.17" (55 mm)
- Depth
- 1.77" (45 mm)
- Height
- 2.76" (70 mm)
- Weight
- 6.35 oz (180 g)
Highlights
- Fixed mount barcode scanner for industrial automation
- 1D and 2D scanning capability with imager technology
- Direct Part Marking (DPM) decoding support
- Serial and Ethernet host interfaces
- IP65 rating for dust and water resistance
- Compact design: 2.76" × 2.17" × 1.77" (70 × 55 × 45 mm)
- 100,000 lux maximum ambient light tolerance
- 20° horizontal × 11° vertical field of view
- 3-year limited warranty
- Industrial, manufacturing, and warehouse applications
Specifications
| Specifications | |
|---|---|
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | HF810-01RT00004K-R |
| Brand Name | Honeywell |
| Product Series | HF81X |
| Product Model | HF810 |
| Product Name | HF810 Fixed Mount Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D DPM PDF 417 2D (QR, Datamatrix, Maxicode, Aztec) |
| Image Sensor Type | Imager |
| Field of View (Horizontal) | 20° |
| Field of View (Vertical) | 11° |
| Maximum Ambient Light | 100000 lux |
| Direct Part Marking (DPM) Decoding | Yes |
| Interfaces/Ports | |
| Host Interface | Serial,Ethernet |
| Physical Characteristics | |
| Form Factor | Fixed Mount |
| Product Color | Black |
| Height | 2.76" (70 mm) |
| Width | 2.17" (55 mm) |
| Depth | 1.77" (45 mm) |
| Weight (Approximate) | 6.35 oz (180 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP65 |
| Application/Usage | Industrial,Manufacturing,Warehouse |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What types of barcodes can the Honeywell HF810 scanner read?
The HF810 reads both 1D and 2D barcodes, including 1D DPM, PDF417, and 2D formats such as QR codes, Datamatrix, Maxicode, and Aztec codes. It specifically supports Direct Part Marking (DPM) decoding for barcodes etched or marked directly onto product surfaces.
What connectivity options does this fixed mount scanner offer?
The HF810 provides both serial (RS-232) and Ethernet interfaces for flexible integration into various host systems. This dual-interface capability allows connection to legacy serial equipment or modern networked systems using standard Ethernet cabling.
What does the IP65 rating mean for this scanner?
The IP65 rating indicates complete protection against dust ingress (first digit 6) and protection against water jets from any direction (second digit 5). This makes the HF810 suitable for industrial environments where dust, debris, or occasional water exposure may occur.
What are the typical applications for this fixed mount scanner?
The HF810 is designed for industrial, manufacturing, and warehouse applications. Common uses include conveyor line scanning, sortation systems, workstations, and anywhere automated, hands-free barcode reading is needed in challenging environments.
What are the physical dimensions of the HF810 scanner?
The scanner measures 2.76 inches high × 2.17 inches wide × 1.77 inches deep (70 × 55 × 45 mm) and weighs 6.35 ounces (180 grams). This compact size allows for installation in space-constrained locations while maintaining a low profile.
What warranty coverage does Honeywell provide for this scanner?
Honeywell offers a 3-year limited warranty for the HF810 fixed mount scanner. This warranty covers defects in materials and workmanship under normal use conditions, providing assurance for industrial deployment.
What duplex or duty-cycle detail is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
What connectivity options are listed?
Connectivity details help confirm how the product integrates with your network, accessories, and surrounding peripherals before rollout or replacement planning. They are often the difference between a technically compatible device and one that is genuinely easy to deploy.
