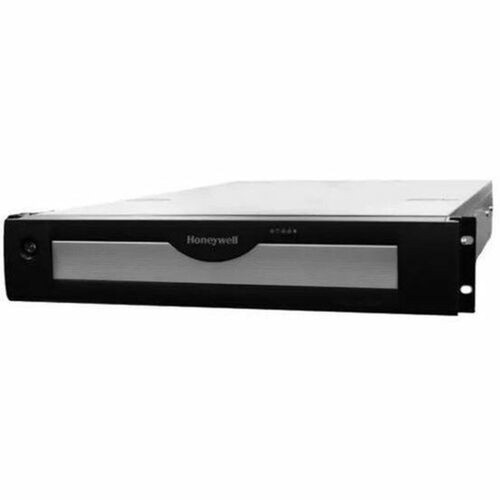

Honeywell HNMSE48D48T MAXPRO Video Surveillance Station - 48 TB HDD - 48-Channel Network Recorder - Full HD - HDMI/DVI - Rack Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This surveillance station features a comprehensive technical specification that supports professional security operations. The 48-channel capacity can handle up to 64 IP cameras with flexible recording configurations, including support for one preferred stream for continuous recording and another for motion-based recording per camera.
Network performance includes incoming bandwidth of 160 Mbps and outgoing bandwidth of 280 Mbps, with total throughput of 440 Mbps. The system supports archival of 16 channels at 4 Mbps bitrate each, with 64 Mbps total archival throughput capacity and 200 Mbps outgoing archival storage throughput.
This section brings together practical product details such as Total Number of Channels, Connectivity Technology, Recording Formats, Hard Drive Capacity, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The MAXPRO Surveillance Station delivers several distinct advantages for security professionals. The integrated processor and storage enclosure eliminates separate components, reducing rack space requirements and simplifying installation while maintaining full functionality.
Scalable Storage Architecture
Features 6 removable drive bays supporting SATA hard drives from 4 TB to 16 TB each, allowing internal storage capacity expansion from 4 TB to 96 TB. The system includes one solid-state drive for the operating system partition and video storage management.
- 6 removable drive bays
- Supports 4-16 TB drives
- Expandable to 96 TB total
- SSD for OS partition
Advanced Video Management
Supports displaying 16 cameras simultaneously on the local monitor with GPU-accelerated rendering. The system handles up to 4 streams of 1080p HD at 30 fps or 2 streams of 4K at 30 fps on local clients for detailed monitoring.
- 16-camera simultaneous display
- GPU-accelerated rendering
- 4K stream support
- Local client performance
Deployment / Use Cases
This Honeywell surveillance station is engineered for commercial and institutional security applications where reliable, high-capacity video recording is essential. The 48-channel capacity makes it suitable for medium to large facilities requiring comprehensive camera coverage.
Typical deployments include retail complexes, educational campuses, corporate offices, healthcare facilities, and government buildings. The rack-mount design integrates seamlessly into existing server rooms or security operations centers, while the dual 1 GB network ports optimize separation of recording and viewing data to ensure uninterrupted operation.
Enterprise Security Operations
Ideal for centralized security monitoring centers that require simultaneous recording of multiple camera feeds with guaranteed recording integrity. The system maintains 100% recording capability even with multiple client connections through optimized network architecture.
High-Availability Installations
Suited for environments requiring continuous surveillance with redundant recording streams. The support for configuring preferred streams for both continuous and motion-based recording per camera provides flexibility for different surveillance scenarios.
Physical Profile
The surveillance station features a 2U rack-mount form factor with dimensions of 3.5" (88.9 mm) height, 17.2" (436.88 mm) width, and 26" (660.4 mm) depth. The unit weighs 19.5 kg and includes a locking front bezel for physical security. Rack rails are included for installation in four-post racking systems, facilitating straightforward integration into standard server environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 3.50" (88.90 mm), 17.20" (436.88 mm), 26" (660.40 mm), 19.50 kg. This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.20" (436.88 mm)
- Depth
- 26" (660.40 mm)
- Height
- 3.50" (88.90 mm)
- Weight
- 19.50 kg
What's in the Box
The package includes all necessary components for immediate deployment into rack-mounted surveillance environments.
Package contents include MAXPRO HNMSE48D24T Video Surveillance Station Rack Rails, MAXPRO HNMSE48D24T Video Surveillance Station. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 48-channel network video recorder with 48 TB installed storage capacity
- Records in Full HD resolution (1920 x 1080) at up to 1920 fps
- Supports video formats including H.265, H.264, MPEG-4, and Motion JPEG
- 2U rack-mount form factor with locking front bezel and included rack rails
- 6 removable drive bays supporting SATA hard drives from 4 TB to 16 TB each
- Dual monitor support via HDMI, DVI-D, and DVI-I ports
- 7 USB 3.0 ports for peripheral connectivity and data transfer
- Remote management capability for off-site monitoring and configuration
- Windows operating system support for familiar management interfaces
- Dual 1 GB network ports optimized to separate recording and viewing data
Specifications
| Specifications | |
|---|---|
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | HNMSE48D48T |
| Brand Name | Honeywell |
| Product Line | MAXPRO |
| Product Model | HNMSE48D48T |
| Product Name | MAXPRO HNMSE48D48T Video Surveillance Station |
| Product Type | Video Surveillance Station |
| Technical Information | |
| Total Number of Channels | 48 |
| Connectivity Technology | Wired |
| Recording Formats | Full HD |
| HD Recording | Yes |
| System Components | Network Video Recorder |
| Storage | |
| Hard Drive Capacity | 48 TB |
| Optical Drive Type | DVD-Writer |
| Memory | |
| Standard Memory | 16 GB |
| Video | |
| Video Formats | Motion JPEG,H.264,MPEG-4,H.265 |
| Maximum Resolution | 1920 x 1080 |
| Maximum Frame Rate | 1920 fps |
| Network & Communication | |
| Ethernet | Yes |
| Remote Management | Yes |
| Interfaces/Ports | |
| USB | Yes |
| USB Standard | USB 3.0 |
| Number of USB Ports | 7 |
| Number of VGA Out | 1 |
| HDMI | Yes |
| DVI | Yes |
| Software | |
| Operating System Supported | Windows |
| Power Description | |
| Power Consumption | 500 W |
| Physical Characteristics | |
| Height | 3.50" (88.90 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 26" (660.40 mm) |
| NVR Weight | 19.50 kg |
| Environmental Conditions | |
| Minimum Operating Temperature | 41°F (5°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Miscellaneous | |
| Package Contents | MAXPRO HNMSE48D24T Video Surveillance Station Rack Rails |
User Manual
FAQ
How many cameras can this Honeywell surveillance station support?
The HNMSE48D48T supports up to 48 channels for recording and can monitor up to 64 IP channels. This capacity allows for comprehensive coverage of medium to large facilities, with the system capable of handling multiple camera configurations including support for one preferred stream for continuous recording and another for motion-based recording per camera.
What is the maximum storage capacity of this NVR?
This unit comes with 48 TB of installed hard drive capacity and features 6 removable drive bays that support SATA hard drives ranging from 4 TB to 16 TB each. This allows for internal storage expansion up to 96 TB total capacity, providing extensive recording duration for high-resolution surveillance footage.
What video resolutions and formats does this recorder support?
The surveillance station records in Full HD resolution (1920 x 1080) and supports multiple modern video codecs including H.265, H.264, MPEG-4, and Motion JPEG. These formats provide efficient compression without sacrificing video quality, with the system capable of recording at frame rates up to 1920 fps depending on the camera configuration and resolution settings.
Can this NVR be mounted in a standard server rack?
Yes, this unit features a 2U rack-mount form factor with dimensions of 3.5" height, 17.2" width, and 26" depth. The package includes rack rails specifically designed for installation in four-post racking systems, and the unit has a locking front bezel for physical security in shared server environments.
What connectivity options are available on this surveillance station?
The NVR provides comprehensive connectivity including 7 USB 3.0 ports for peripheral devices, HDMI and DVI outputs for dual monitor support, VGA output, and Ethernet for network connectivity. The dual 1 GB network ports are optimized to separate recording and viewing data streams, ensuring reliable operation even with multiple client connections.
What operating systems are compatible with this Honeywell NVR?
This surveillance station supports Windows operating systems, providing familiar management interfaces for security personnel. The system includes remote management capabilities, allowing for off-site monitoring and configuration through desktop clients that support live viewing, playback, and clip export functionality.
How much memory is installed?
It includes 16 GB of memory to support responsive multitasking and daily workloads.
