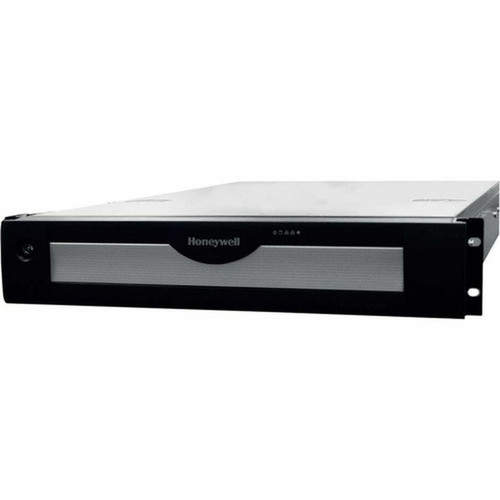

Honeywell HNMSE64D16T MAXPRO Video Surveillance Station - 64-Channel NVR with 16 TB HDD - Full HD Recording - HDMI/DVI - Windows 10 IoT
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This MAXPRO NVR SE model delivers robust technical specifications for enterprise surveillance environments. The system supports incoming network bandwidth of 160 Mbps and outgoing bandwidth of 280 Mbps, totaling 440 Mbps of throughput capacity to handle multiple high-resolution camera feeds simultaneously.
Archival operations are optimized with support for 16 channels at 4 Mbps bitrate each, totaling 64 Mbps archival throughput capacity. The recorder's multi-stream architecture supports up to 128 streams total, with configurable preferred streams for continuous recording and motion-based recording per camera. Local monitoring is enhanced through HDMI, DVI-D, and VGA ports that enable dual monitor configurations.
Relevant factors for this section include Total Number of Channels, Connectivity Technology, Recording Formats, Hard Drive Capacity. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Honeywell MAXPRO NVR provides distinct advantages for security professionals through its combination of high channel density, substantial storage capacity, and enterprise-grade management features. The integrated design eliminates the need for separate processing and storage units, reducing both physical footprint and total cost of ownership.
Integrated Storage Architecture
The chassis incorporates one solid-state drive dedicated to the operating system partition and six removable bays for video storage hard drives. This separation ensures system stability while providing flexible storage expansion options from 4 TB to 16 TB per drive.
- OS on dedicated SSD
- Six removable storage bays
- Hot-swappable drive support
Advanced Video Processing
GPU acceleration enables rendering performance of up to 4 streams at 1080p HD @ 30 fps or 2 streams at 4K @ 30 fps on local clients. The system supports displaying 16 camera feeds simultaneously on the NVR local monitor for comprehensive situational awareness.
- GPU-accelerated decoding
- 16-camera simultaneous display
- 4K playback support
Deployment / Use Cases
This surveillance station is engineered for deployment scenarios demanding high camera counts and extended video retention. The system's 64-channel capacity makes it appropriate for medium to large-scale installations where centralized recording and management are essential.
The rack-mount design with included rails facilitates integration into standard data center or security operations center environments. Dual 1 GB network ports allow separation of recording and viewing traffic, ensuring 100% recording continuity even during multiple client connections and playback sessions.
Enterprise Campus Security
Ideal for large facilities requiring extensive camera coverage, including corporate campuses, educational institutions, and government buildings where 64-channel capacity supports comprehensive perimeter and interior monitoring.
Critical Infrastructure Monitoring
Suited for utilities, transportation hubs, and industrial sites where the 2U rack-mount form factor, extended temperature operating range (41°F to 104°F), and redundant network ports ensure reliable operation in controlled environments.
Physical Profile
The MAXPRO NVR features a 2U rack-mount form factor measuring 3.50" in height, 17.20" in width, and 26" in depth, designed for standard four-post racking systems. The unit weighs 19.50 kg and includes a locking front bezel for physical security of the removable drive bays. The compact design maximizes rack space efficiency while providing adequate ventilation for the 500 W power supply and internal components.
- Width
- 17.20" (436.88 mm)
- Depth
- 26" (660.40 mm)
- Height
- 3.50" (88.90 mm)
- Weight
- 19.50 kg
What's in the Box
This package includes the complete MAXPRO HNMSE64D16T Video Surveillance Station with 16 TB of installed storage and all necessary mounting hardware for immediate deployment.
Highlights
- 64-channel network video recorder with Full HD recording capability
- 16 TB installed storage with expansion support up to 96 TB total capacity
- Windows 10 IoT Enterprise operating system for stable, long-term operation
- HDMI, DVI, and VGA outputs for dual monitor local viewing
- 2U rack-mount form factor with included mounting rails
- Seven USB ports for peripheral connectivity and data transfer
- Supports H.265, H.264, MPEG-4, and Motion JPEG video formats
- 440 Mbps total network throughput for handling multiple high-resolution streams
- GPU-accelerated playback supporting 4K resolution streams
- Three-year limited warranty with United States country of origin
Specifications
| Specifications | |
|---|---|
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | HNMSE64D16T |
| Brand Name | Honeywell |
| Product Line | MAXPRO |
| Product Model | HNMSE64D16T |
| Product Name | MAXPRO HNMSE64D16T Video Surveillance Station |
| Product Type | Video Surveillance Station |
| Technical Information | |
| Total Number of Channels | 64 |
| Connectivity Technology | Wired |
| Recording Formats | Full HD |
| HD Recording | Yes |
| System Components | Network Video Recorder |
| Storage | |
| Hard Drive Capacity | 16 TB |
| Optical Drive Type | DVD-Reader |
| Memory | |
| Standard Memory | 16 GB |
| Video | |
| Video Formats | Motion JPEG,MPEG-4,H.264,H.265 |
| Maximum Resolution | 1920 x 1080 |
| Maximum Frame Rate | 1920 fps |
| Network & Communication | |
| Ethernet | Yes |
| Interfaces/Ports | |
| USB | Yes |
| Number of USB Ports | 7 |
| Number of VGA Out | 1 |
| HDMI | Yes |
| DVI | Yes |
| Software | |
| Operating System Supported | Windows 10 IoT Enterprise |
| Power Description | |
| Power Consumption | 500 W |
| Physical Characteristics | |
| Height | 3.50" (88.90 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 26" (660.40 mm) |
| NVR Weight | 19.50 kg |
| Environmental Conditions | |
| Minimum Operating Temperature | 41°F (5°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Miscellaneous | |
| Package Contents | MAXPRO HNMSE64D08T Video Surveillance Station Rack rails |
| Country of Origin | United States |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
How many cameras can this Honeywell NVR support simultaneously?
The MAXPRO HNMSE64D16T supports up to 64 channels simultaneously, meaning it can record and monitor video from 64 individual cameras. The system can display 16 camera feeds at once on the local monitor and supports a maximum of 128 total streams for flexible recording and viewing configurations.
What is the maximum storage capacity this recorder can support?
This NVR comes with 16 TB of installed storage and supports expansion up to 96 TB total capacity. The system features six removable drive bays that accept optional SATA hard drives in 4 TB, 6 TB, 8 TB, 10 TB, 12 TB, or 16 TB capacities, providing flexible storage scaling based on retention requirements.
What video resolutions and formats does this surveillance station support?
The recorder supports Full HD resolution at 1920 x 1080 pixels and is compatible with multiple video formats including H.265, H.264, MPEG-4, and Motion JPEG. This format flexibility ensures compatibility with various IP camera models and optimizes storage efficiency through modern compression standards.
Can I connect multiple monitors to this NVR for local viewing?
Yes, the MAXPRO NVR includes HDMI, DVI-D, and VGA ports that enable dual monitor support for local viewing. This allows security operators to view live feeds, playback recordings, and manage system configurations across multiple displays simultaneously from the recorder's local interface.
What operating system does this Honeywell surveillance station use?
This NVR runs Windows 10 IoT Enterprise, a specialized version of Windows designed for dedicated devices and long-term stability. This operating system provides a familiar management interface while being optimized for continuous 24/7 operation in surveillance applications.
Is this recorder rack-mountable and what are its physical dimensions?
Yes, this is a 2U rack-mount unit measuring 3.50" in height, 17.20" in width, and 26" in depth. The package includes rack rails for installation in standard four-post racking systems. The 2U form factor provides adequate space for six removable drives and system components while maintaining rack density efficiency.
