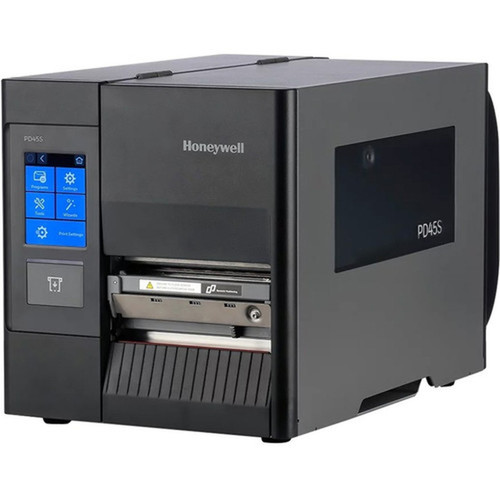

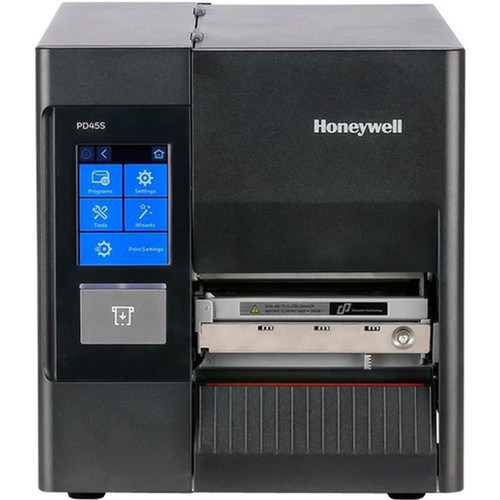

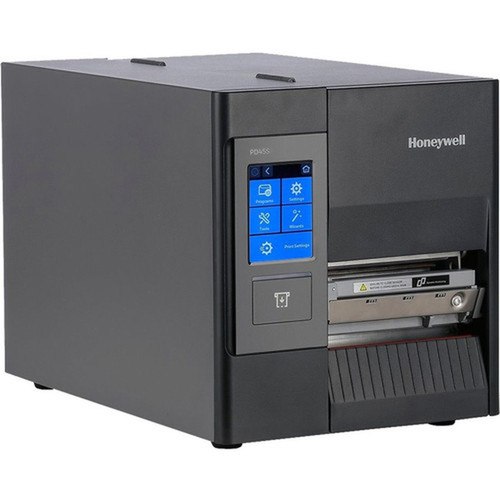

Honeywell PD45S0F0010020300 PD45S Industrial Thermal Transfer Label Printer - Monochrome - 7. 87 in/s - 300 dpi - 4. 16" Print Width - Ethernet - 3. 5"
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This printer supports a wide range of barcode symbologies including 1D, 2D, UPC/EAN, UCC/EAN 128, MH10.8, AIAG, and ISBT-128, ensuring compatibility with industry standards. Media sensors detect black marks, gaps, and label taken events for precise handling.
Language emulation covers ZPL II, ZSim2, IPL, DPL, Direct Protocol, Fingerprint, and FP, offering flexibility for integration with existing systems. The platform is PC-supported, and optional Wireless LAN connectivity expands deployment options.
This section brings together practical product details such as Recommended Use, Print Color Capability, Maximum Mono Print Speed, USB Host, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
High-Speed Labeling
Print at 7.87 in/s with 300 dpi resolution for fast, high-quality output that meets industrial throughput requirements.
- Monochrome thermal transfer
- Crisp barcode reproduction
- Reduces labeling bottlenecks
Robust Connectivity
Built-in Fast Ethernet, USB, and serial ports enable easy network integration and peripheral connections.
- Network-ready for shared access
- Optional wireless expansion
- Supports legacy serial devices
Versatile Media Support
Handles labels, tags, notch, and continuous paper up to 4.49" wide, adapting to diverse labeling needs.
- Multiple sensor types
- Max roll diameter 3.1"
- 10 mil media thickness capacity
Deployment / Use Cases
The PD45S is ideal for retail point-of-sale labeling, healthcare specimen tracking, manufacturing part identification, and logistics shipping compliance. Its rugged construction and wide operating temperature range make it suitable for environments from warehouse floors to clinical settings.
In retail, it prints price labels and shelf tags; in healthcare, it handles patient ID and lab sample labels; in manufacturing, it marks components and inventory; in transportation, it generates shipping labels and compliance tags. The Ethernet connectivity allows centralized print management across multiple workstations.
Physical Profile
The printer measures 10.63" H x 9.80" W x 17.24" D (270 x 249 x 438 mm) and weighs 23.85 lb (10820 g), offering a compact footprint for space-constrained installations. Its sturdy build ensures stability during high-volume operation, and the design facilitates easy media loading and maintenance access.
- Width
- 4.16" (105.66 mm)
- Depth
- 17.24" (438 mm)
- Height
- 10.63" (270 mm)
- Weight
- 23.85 lb (10820 g)
- Length
- 7.22" (183.39 mm)
Highlights
- Industrial thermal transfer label printer for monochrome printing at 7.87 in/s
- 300 dpi resolution ensures sharp barcodes and text for compliance and readability
- Supports labels, tags, notch, and continuous paper up to 4.49" wide
- Built-in Fast Ethernet, USB, and serial ports for flexible connectivity
- Optional Wireless LAN enables wireless deployment in dynamic environments
- 3.5" LCD display provides clear status and operational feedback
- Rugged and compact design withstands demanding industrial use
- Wide operating temperature range from 41°F to 104°F (5°C to 40°C)
- Supports industry barcode standards including 1D, 2D, UPC/EAN, and ISBT-128
- Language emulation for ZPL II, IPL, DPL, and Fingerprint ensures software compatibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | PD45S0F0010020300 |
| Brand Name | Honeywell |
| Product Model | PD45S |
| Product Name | Industrial Label Printer |
| Product Type | Thermal Transfer Printer |
| Technical Information | |
| Recommended Use | Label Print |
| Print Color Capability | Monochrome |
| Maximum Mono Print Speed | 7.87 in/s (200 mm/s) |
| Maximum Print Resolution (dpi) | 300 |
| Maximum Print Length | 7.22" (183.39 mm) |
| Maximum Print Width | 4.16" (105.66 mm) |
| Barcode Symbology Supported | 1D,2D,UPC/EAN Shipping Container,UCC/EAN 128 Serial Shipping Container,MH10.8,AIAG,OGMARS,POSTNET,HIBCC,ISBT-128,GM1724 |
| Application/Usage | Industrial,Retail,Healthcare,Manufacturing,Transportation & Logistic |
| Features | Ergonomic,Compact,Rugged,LCD Display |
| Interfaces/Ports | |
| USB Host | Yes |
| Serial Port | Yes |
| USB | Yes |
| Network & Communication | |
| Network Ready | Yes |
| Ethernet | Yes |
| Ethernet Technology | Fast Ethernet |
| Display & Graphics | |
| Display Screen | Yes |
| Screen Size | 3.5" |
| Display Screen Type | LCD |
| Media Types & Handling | |
| Media Type | Label,Tag,Notch,Continuous Label,Continuous Paper |
| Media Sensor | Black Mark Sensor,Gap Sensor,Label Taken Sensor |
| Media Thickness | 10 mil (0.254000 mm) |
| Maximum Roll Diameter | 3.1" (80 mm) |
| Maximum Label Width | 4.49" (114 mm) |
| Fonts & Emulation | |
| Language Emulation | ZPL II,ZSim2,IPL,DPL,Direct Protocol (DP),Fingerprint,FP,ZPL |
| Power Description | |
| Power Source | AC Supply |
| Environmental Conditions | |
| Operating Temperature | 41°F (5°C) - 104°F (40°C) |
| Operating Relative Humidity | 20% - 85% |
| Storage Temperature | -4°F (-20°C) - 158°F (70°C) |
| Physical Characteristics | |
| Height | 10.63" (270 mm) |
| Width | 9.80" (249 mm) |
| Depth | 17.24" (438 mm) |
| Weight (Approximate) | 23.85 lb (10820 g) |
| Miscellaneous | |
| Optional Connectivity | Wireless LAN |
| Platform Supported | PC |
FAQ
What is the maximum print speed of the Honeywell PD45S?
The PD45S prints at a maximum speed of 7.87 inches per second (200 mm/s) in monochrome, enabling fast labeling for high-volume applications in retail, manufacturing, or logistics.
What types of media can this printer handle?
It supports labels, tags, notch, continuous label, and continuous paper, with a maximum label width of 4.49 inches (114 mm) and a maximum roll diameter of 3.1 inches (80 mm).
Does the PD45S have network connectivity?
Yes, it includes built-in Fast Ethernet for network-ready operation, allowing easy sharing across multiple systems. Optional Wireless LAN is also available for wireless deployment.
What barcode symbologies are supported?
It supports 1D and 2D barcodes, including UPC/EAN Shipping Container, UCC/EAN 128, MH10.8, AIAG, POSTNET, HIBCC, ISBT-128, and GM1724, covering common industry standards.
What is the operating temperature range?
The printer operates reliably in temperatures from 41°F to 104°F (5°C to 40°C) and 20% to 85% relative humidity, suitable for various industrial and commercial environments.
What language emulations does it support?
It emulates ZPL II, ZSim2, IPL, DPL, Direct Protocol (DP), Fingerprint, FP, and ZPL, ensuring compatibility with a wide range of labeling software and legacy systems.
