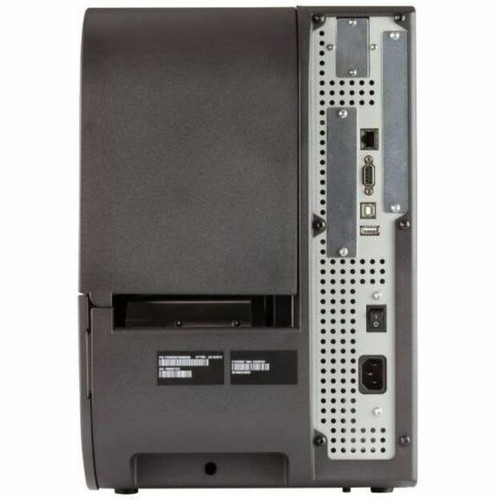

Honeywell Single Sided Industrial, Healthcare, Manufacturing, Warehouse, Automotive Direct Thermal/Thermal Transfer Printer - Color - (PX940V30100060302)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Recommended Use: Label Print
Print Color Capability: Color
Printing Capability: Single Sided
Maximum Mono Print Speed: 11.81 in/s (300 mm/s)
Maximum Print Resolution (dpi): 300
Maximum Print Length: 86.64" (2200.66 mm)
Maximum Print Width: 4.16" (105.70 mm)
Barcode Symbology Supported: 2D,1D,Code 128,Code 39,EAN-128,EAN-13,EAN-8,GS1 DataBar Expanded,GS1-128,HIBC Code 128,HIBC Code 39,ISBT-128,ITF-14,Interleaved 2 of 5,RSS14E,SCC-14,UPC-A,UPC-E
Connectivity Technology: Wired & Wireless
Fonts Included: Monotype font,non-Latin fonts
Rewinder: Yes
Application/Usage: Industrial,Healthcare,Manufacturing,Warehouse,Automotive
Features: LCD Display,Verifier,Rugged
Standard Memory: 1 GB
Flash Memory: 256 MB
USB Host: Yes
Serial Port: Yes
USB: Yes
USB Standard: USB 2.0
Ethernet: Yes
Ethernet Technology: Fast Ethernet
Bluetooth: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11a/b/g/n/ac
Near Field Communication (NFC): Yes
RFID: Yes
Display Screen: Yes
Screen Size: 3.5"
Display Screen Type: LCD
Touchscreen: Yes
Media Type: Gap,Black Mark,Tag,Notch,Label,Continuous Label
Maximum Roll Diameter: 8.4" (213 mm)
Maximum Label Width: 4.49" (114 mm)
Language Emulation: DPL,Fingerprint,ZSim2,ZPL II,Intermec Printer Language (IPL),XML-enabled for SAP AII & Oracle WMS,PDF,Direct Protocol (DP)
Power Source: AC Supply
Operating Temperature: 41°F (5°C) - 104°F (40°C)
Operating Relative Humidity: 20% - 85%
Storage Temperature: 68°F (20°C) - 158°F (70°C)
Storage Relative Humidity: 20% - 85%
Height: 15.70" (398.70 mm)
Width: 10.28" (261 mm)
Depth: 19.92" (506 mm)
Weight (Approximate): 51.81 lb (23500 g)
Power Cable Localization: US
Platform Supported: PC
Energy Star: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- Integrated label verification technology checks and ensures that barcodes are accurate every time; instantly notifies you of pass/fail status and ANSI grade.
- Extremely precise printing of up to +/-0.2 mm (0.0079 in) virtually eliminates poor-quality, unreadable labels and barcodes.
- Operational Intelligence software provides predictive analytics and data on printer health to help managers oversee their entire printer fleet and proactively prevent issues, ensuring maximum uptime.
- Smart printing capability allows users to configure and print without the need for a host computer.
- Easy to use and maintain, with a color multilingual touchscreen interface and quick side-loading design.
[custom-specifications]
| Specifications | |
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | PX940V30100060302 |
| Manufacturer Website Address | http://www.honeywell.com |
| Brand Name | Honeywell |
| Product Series | PX940 |
| Product Name | PX940 Industrial Printer |
| Product Type | Direct Thermal/Thermal Transfer Printer |
| Technical Information | |
| Recommended Use | Label Print |
| Print Color Capability | Color |
| Printing Capability | Single Sided |
| Maximum Mono Print Speed | 11.81 in/s (300 mm/s) |
| Maximum Print Resolution (dpi) | 300 |
| Maximum Print Length | 86.64" (2200.66 mm) |
| Maximum Print Width | 4.16" (105.70 mm) |
| Barcode Symbology Supported | 2D,1D,Code 128,Code 39,EAN-128,EAN-13,EAN-8,GS1 DataBar Expanded,GS1-128,HIBC Code 128,HIBC Code 39,ISBT-128,ITF-14,Interleaved 2 of 5,RSS14E,SCC-14,UPC-A,UPC-E |
| Connectivity Technology | Wired & Wireless |
| Fonts Included | Monotype font,non-Latin fonts |
| Rewinder | Yes |
| Application/Usage | Industrial,Healthcare,Manufacturing,Warehouse,Automotive |
| Features | LCD Display,Verifier,Rugged |
| Memory | |
| Standard Memory | 1 GB |
| Flash Memory | 256 MB |
| Interfaces/Ports | |
| USB Host | Yes |
| Serial Port | Yes |
| USB | Yes |
| USB Standard | USB 2.0 |
| Network & Communication | |
| Ethernet | Yes |
| Ethernet Technology | Fast Ethernet |
| Bluetooth | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11a/b/g/n/ac |
| Near Field Communication (NFC) | Yes |
| RFID | Yes |
| Display & Graphics | |
| Display Screen | Yes |
| Screen Size | 3.5" |
| Display Screen Type | LCD |
| Touchscreen | Yes |
| Media Types & Handling | |
| Media Type | Gap,Black Mark,Tag,Notch,Label,Continuous Label |
| Maximum Roll Diameter | 8.4" (213 mm) |
| Maximum Label Width | 4.49" (114 mm) |
| Fonts & Emulation | |
| Language Emulation | DPL,Fingerprint,ZSim2,ZPL II,Intermec Printer Language (IPL),XML-enabled for SAP AII & Oracle WMS,PDF,Direct Protocol (DP) |
| Power Description | |
| Power Source | AC Supply |
| Environmental Conditions | |
| Operating Temperature | 41°F (5°C) - 104°F (40°C) |
| Operating Relative Humidity | 20% - 85% |
| Storage Temperature | 68°F (20°C) - 158°F (70°C) |
| Storage Relative Humidity | 20% - 85% |
| Physical Characteristics | |
| Height | 15.70" (398.70 mm) |
| Width | 10.28" (261 mm) |
| Depth | 19.92" (506 mm) |
| Weight (Approximate) | 51.81 lb (23500 g) |
| Miscellaneous | |
| Power Cable Localization | US |
| Platform Supported | PC |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
[/custom-specifications]
