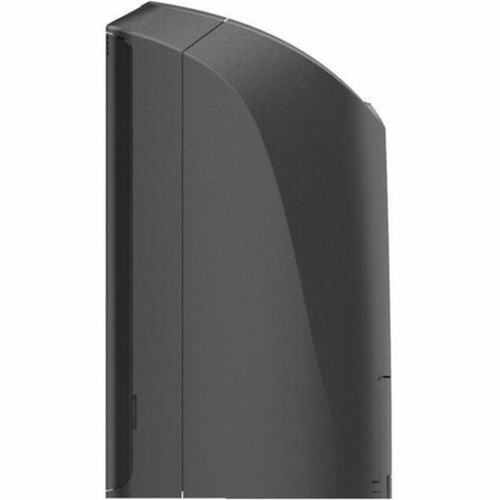

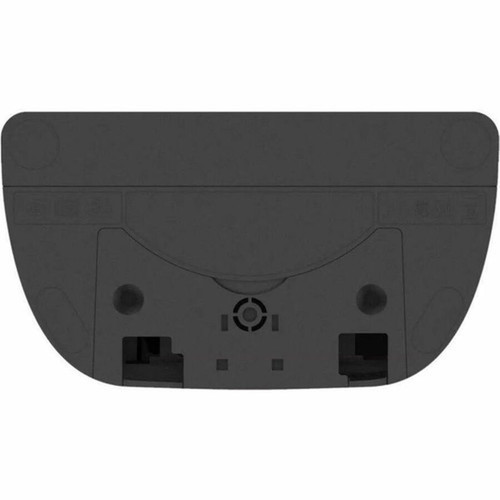

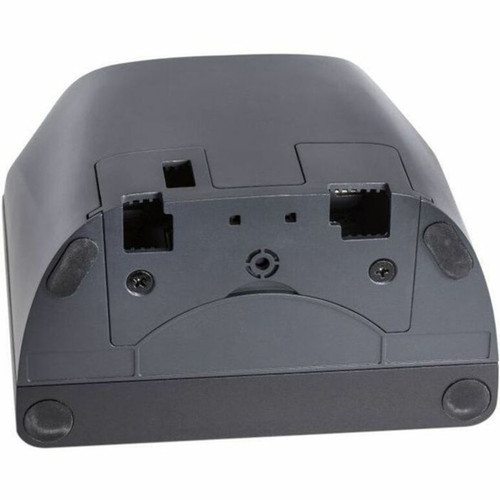

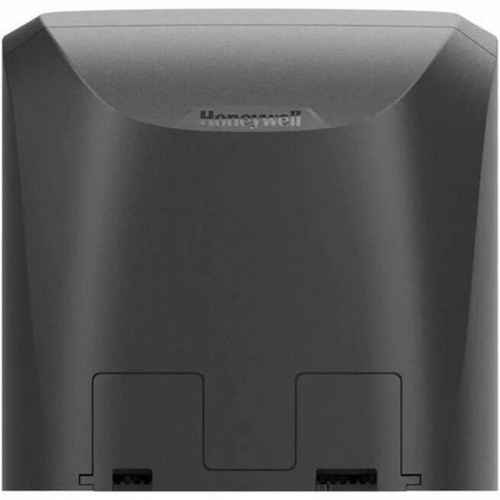

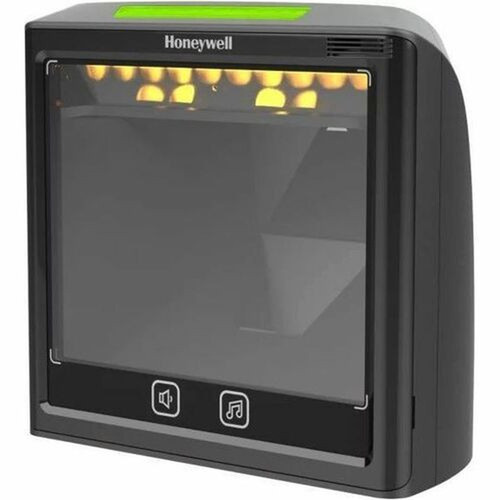

Honeywell Solaris XP 7990G Area-Imaging Vertical Slot Scanner - Cable Connectivity - 11.80" (299.72 mm) Scan Distance - 1D, 2D - Area (7990G-2USBX-1)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Reads standard 1D, PDF, 2D, Postal and OCR symbologies Note: Decode capabilities dependent on kit configuration
Connectivity Technology: Cable
Scanning Capability: 1D,2D
Barcode Symbology Supported:
Decode Capability:
Scan Pattern: Area
Scanning Distance: 11.80" (299.72 mm)
Field of View (Horizontal): 42°
Field of View (Vertical): 34°
Reading Angle (Skew): 75°
Reading Angle (Pitch): 65°
Motion Tolerance: 236.22 in/s (6000 mm/s)
Maximum Ambient Light: 100000 lux
Minimum Print Contrast: 20%
Minimum Element Resolution (Code 39): 5 mil (0.13 mm)
Maximum Element Resolution (Code 39): 20 mil (0.51 mm)
Minimum Element Resolution (DataMatrix): 20 mil (0.51 mm)
Minimum Element Resolution (PDF417): 6.70 mil (0.17 mm)
Image Sensor Resolution: 1280 x 960
Host Interface: USB
Standby Current: 270 mA
Operating Temperature: 32°F (0°C) to 104°F (40°C)
Storage Temperature: -4°F (-20°C) to 140°F (60°C)
Humidity (Non-condensing): 5% to 95%
Form Factor: Hands-free
Height: 5.83" (148 mm)
Width: 5.98" (152 mm)
Depth: 3.35" (85 mm)
Weight (Approximate): 1.16 lb (527 g)
Ingress Protection (IP) Rating: IP53
Application/Usage: Industrial,Retail,Convenience Store
Limited Warranty: 3 Year
[custom-specifications]
| Specifications | |
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | 7990G-2USBX-1 |
| Manufacturer Website Address | http://www.honeywell.com |
| Brand Name | Honeywell |
| Product Line | Solaris XP |
| Product Model | 7990g |
| Product Name | Solaris XP 7990G Area-Imaging Vertical Slot Scanner |
| Product Type | Barcode Scanner Kit |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | Decode Capability:
|
| Scan Pattern | Area |
| Scanning Distance | 11.80" (299.72 mm) |
| Field of View (Horizontal) | 42° |
| Field of View (Vertical) | 34° |
| Reading Angle (Skew) | 75° |
| Reading Angle (Pitch) | 65° |
| Motion Tolerance | 236.22 in/s (6000 mm/s) |
| Maximum Ambient Light | 100000 lux |
| Minimum Print Contrast | 20% |
| Minimum Element Resolution (Code 39) | 5 mil (0.13 mm) |
| Maximum Element Resolution (Code 39) | 20 mil (0.51 mm) |
| Minimum Element Resolution (DataMatrix) | 20 mil (0.51 mm) |
| Minimum Element Resolution (PDF417) | 6.70 mil (0.17 mm) |
| Image Sensor Resolution | 1280 x 960 |
| Interfaces/Ports | |
| Host Interface | USB |
| Power Description | |
| Standby Current | 270 mA |
| Environmental Conditions | |
| Operating Temperature | 32°F (0°C) to 104°F (40°C) |
| Storage Temperature | -4°F (-20°C) to 140°F (60°C) |
| Humidity (Non-condensing) | 5% to 95% |
| Physical Characteristics | |
| Form Factor | Hands-free |
| Height | 5.83" (148 mm) |
| Width | 5.98" (152 mm) |
| Depth | 3.35" (85 mm) |
| Weight (Approximate) | 1.16 lb (527 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP53 |
| Application/Usage | Industrial,Retail,Convenience Store |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
