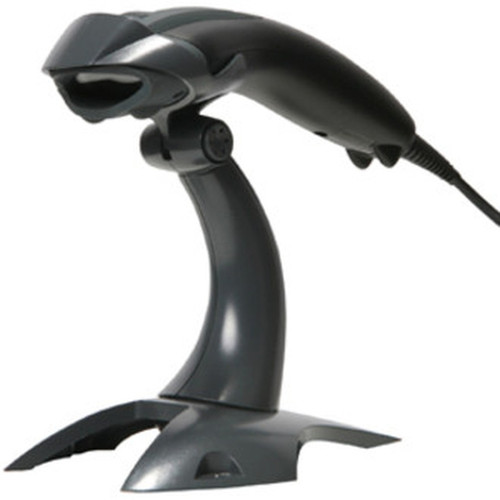

Honeywell 1200G-2USB-1 Voyager 1200g Single-Line Laser Scanner - 1D Barcode - 11. 10" Scan Distance - USB Cable - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This scanner operates with a laser light source and single-line scan pattern, achieving consistent reads at distances up to 11.10 inches (281.94 mm). A 30° horizontal field of view combined with 60° skew and pitch reading angles allows flexible positioning relative to barcodes, even on curved or awkwardly placed surfaces.
Technical resilience includes operation under ambient light up to 100,000 lux and a minimum print contrast requirement of 10%. The drop specification certifies survival after 30 drops onto concrete from 1.5 meters, making it suitable for environments where accidental impacts are likely.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Host Interface, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The Voyager 1200g combines Honeywell's scanning reliability with a durable, user-friendly form factor. Its laser technology ensures fast, accurate data entry, reducing errors and improving workflow efficiency in busy operational contexts.
Direct USB Connection
Eliminates wireless complexity with a reliable cable link to host devices, ideal for fixed workstation setups.
- Plug-and-play USB interface
- Includes USB cable
- Stand for desktop placement
Environmental Toughness
Engineered to withstand drops, dust, and moisture with IP42 rating and concrete-drop certification.
- IP42 ingress protection
- 30-drop durability
- 100,000 lux light tolerance
Broad Symbol Support
Reads standard 1D barcodes and GS1 DataBar symbologies, covering common retail, logistics, and library formats.
- 1D barcode capability
- GS1 DataBar support
- 10% minimum print contrast
Deployment / Use Cases
This scanner is tailored for applications requiring dependable, cable-connected scanning at a fixed point. Its combination of durability, simple connectivity, and precise laser reading makes it a practical choice for environments where equipment must endure daily handling and potential accidents.
Typical deployments include library circulation desks for book check-in/out, retail point-of-sale counters for price lookup, and industrial warehouses for inventory tracking. The handheld form factor allows operators to quickly scan items on shelves, conveyor belts, or countertops, while the stand provides a resting place during intermittent use.
Library Management
Scan book barcodes efficiently at circulation desks, with durability to handle frequent staff use.
Retail Point-of-Sale
Integrate into checkout stations for fast price scanning, supported by USB connectivity to POS systems.
Physical Profile
The scanner features a compact handheld design measuring 7.09" wide, 3.82" high, and 2.60" deep (180 x 97 x 66 mm), with a light weight of 4.40 ounces (124.74 g). Its black finish provides a professional appearance, and the ergonomic shape ensures comfortable grip during extended use. The rugged construction meets industrial standards, and the included stand allows for upright storage on desktops when not actively scanning.
- Width
- 7.09" (180 mm)
- Height
- 3.82" (97 mm)
- Weight
- 4.40 oz (124.74 g)
- Length
- 2.60" (66 mm)
What's in the Box
The package includes the scanner with its integrated USB cable, ready for immediate connection to a host computer or terminal.
Package contents include USB. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Laser scan engine for rapid, error-free 1D barcode reading
- 11.10-inch (281.94 mm) scanning distance for flexible positioning
- USB cable connectivity for direct plug-and-play setup
- Rugged handheld design withstands 30 drops to concrete from 1.5 m
- IP42 rating for dust and moisture resistance
- 30° field of view with 60° skew and pitch reading angles
- Operates in ambient light up to 100,000 lux
- Includes stand for convenient desktop placement
- 5-year limited warranty for long-term reliability
- Environmentally compliant with WEEE and RoHS directives
Specifications
| Specifications | |
|---|---|
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | 1200G-2USB-1 |
| Brand Name | Honeywell |
| Product Line | Voyager |
| Product Model | 1200g |
| Product Name | Voyager 1200g Single-Line Laser Scanner |
| Product Type | Barcode Scanner Kit |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D |
| Barcode Symbology Supported | Reads standard 1D and GS1 DataBar symbologies |
| Light Source | Laser |
| Scan Pattern | Single Line |
| Scanning Distance | 11.10" (281.94 mm) |
| Cable Type Included | USB |
| Stand Included | Yes |
| Field of View (Horizontal) | 30° |
| Reading Angle (Skew) | 60° |
| Reading Angle (Pitch) | 60° |
| Maximum Ambient Light | 100000 lux |
| Drop Specification | Designed to withstand 30 drops to concrete from 1.5 m |
| Minimum Print Contrast | 10% |
| Interfaces/Ports | |
| Host Interface | USB |
| Physical Characteristics | |
| Form Factor | Handheld |
| Rugged | Yes |
| Color Family | Black |
| Product Color | Black |
| Height | 3.82" (97 mm) |
| Width | 7.09" (180 mm) |
| Length | 2.60" (66 mm) |
| Weight (Approximate) | 4.40 oz (124.74 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP42 |
| Application/Usage | Library,Industrial |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What types of barcodes can this scanner read?
The Honeywell Voyager 1200g reads standard 1D barcodes and GS1 DataBar symbologies. This covers common linear barcode formats used in retail, inventory, library, and industrial applications, providing broad compatibility for most tracking and identification needs.
How does the scanning distance affect daily use?
With an 11.10-inch (281.94 mm) scanning distance, operators can read barcodes from a comfortable range without needing direct contact. This flexibility is useful for scanning items on shelves, conveyor belts, or across countertops, improving workflow speed and reducing physical strain.
What connectivity options does this scanner support?
This scanner connects via a fixed USB cable included in the package. It provides a direct, reliable link to computers, workstations, or notebooks, eliminating wireless pairing or battery concerns. The USB interface ensures plug-and-play compatibility with most modern systems.
How durable is the Voyager 1200g for industrial environments?
The scanner is built to withstand tough conditions, certified to survive 30 drops onto concrete from 1.5 meters. It also has an IP42 ingress protection rating, guarding against dust and moisture. These features make it suitable for warehouses, factories, and busy retail settings where accidental drops and environmental exposure are common.
Does the scanner come with a stand?
Yes, a stand is included with the scanner. This allows for convenient desktop placement when the scanner is not in active use, keeping it accessible and organized at point-of-sale counters, library desks, or workstation areas.
What warranty coverage is provided?
Honeywell backs the Voyager 1200g with a 5-year limited warranty. This extended coverage reflects the product's durability and reliability, offering peace of mind for long-term deployments in commercial and institutional settings.
What duplex or duty-cycle detail is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
What connectivity options are listed?
Connectivity details help confirm how the product integrates with your network, accessories, and surrounding peripherals before rollout or replacement planning. They are often the difference between a technically compatible device and one that is genuinely easy to deploy.
