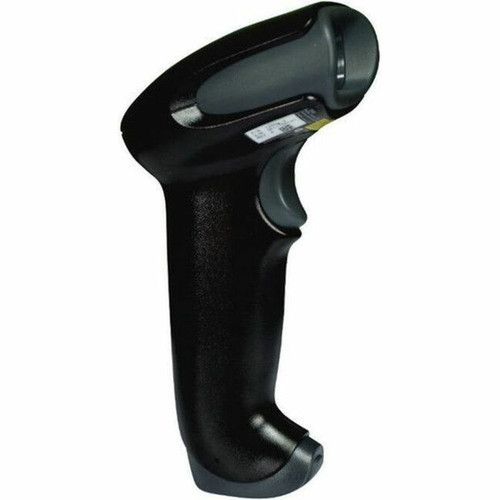

Honeywell Voyager 1250g Barcode Scanner - Cable Connectivity - 17.60" (447.04 mm) Scan Distance - 1D - Single Line - Serial, USB, - - (1250G-2USB-N)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Connectivity Technology: Cable
Scanning Capability: 1D
Barcode Symbology Supported:
Reads standard 1D and GS1 DataBar symbologies
Scan Pattern: Single Line
Scanning Distance: 17.60" (447.04 mm)
Field of View (Horizontal): 30°
Reading Angle (Skew): 60°
Reading Angle (Pitch): 60°
Maximum Ambient Light: 75000 lux
Drop Specification:
Designed to withstand 30 drops on concrete from 1.5 m (5')
Minimum Print Contrast: 20%
Host Interface: Serial,USB,Keyboard Wedge,Multi-interface
Maximum Operating Power Consumption: 700 mW
Input Current: 140 mA
Standby Current: 85 mA
Operating Temperature: 32°F (0°C) to 104°F (40°C)
Storage Temperature: -4°F (-20°C) to 140°F (60°C)
Humidity (Non-condensing): 5% to 95%
Color Family: Black
Product Color: Black
Height: 2.91" (74 mm)
Width: 6.61" (168 mm)
Length: 2.36" (60 mm)
Weight (Approximate): 4.69 oz (133 g)
Ingress Protection (IP) Rating: IP41
Environmentally Friendly: Yes
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS)
Limited Warranty: 5 Year
[custom-specifications]
| Specifications | |
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | 1250G-2USB-N |
| Manufacturer Website Address | http://www.honeywell.com |
| Brand Name | Honeywell |
| Product Line | Voyager |
| Product Model | 1250g |
| Product Name | Voyager 1250g Barcode Scanner |
| Product Type | Barcode Scanner Kit |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D |
| Barcode Symbology Supported | Reads standard 1D and GS1 DataBar symbologies |
| Scan Pattern | Single Line |
| Scanning Distance | 17.60" (447.04 mm) |
| Field of View (Horizontal) | 30° |
| Reading Angle (Skew) | 60° |
| Reading Angle (Pitch) | 60° |
| Maximum Ambient Light | 75000 lux |
| Drop Specification | Designed to withstand 30 drops on concrete from 1.5 m (5') |
| Minimum Print Contrast | 20% |
| Interfaces/Ports | |
| Host Interface | Serial,USB,Keyboard Wedge,Multi-interface |
| Power Description | |
| Maximum Operating Power Consumption | 700 mW |
| Input Current | 140 mA |
| Standby Current | 85 mA |
| Environmental Conditions | |
| Operating Temperature | 32°F (0°C) to 104°F (40°C) |
| Storage Temperature | -4°F (-20°C) to 140°F (60°C) |
| Humidity (Non-condensing) | 5% to 95% |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Height | 2.91" (74 mm) |
| Width | 6.61" (168 mm) |
| Length | 2.36" (60 mm) |
| Weight (Approximate) | 4.69 oz (133 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP41 |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
Additional-pdf3
Additional-pdf1
Additional-pdf2
[/custom-user-manual]
