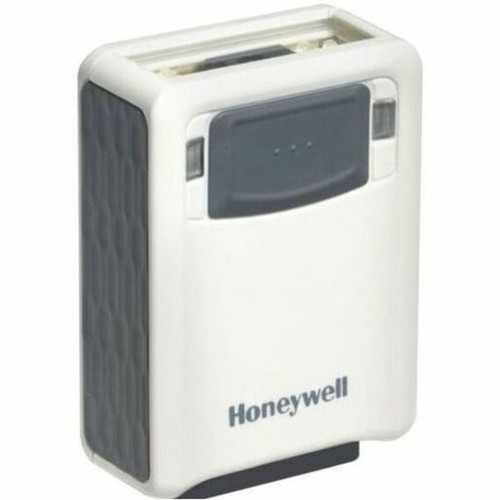

Honeywell Vuquest 3320g Barcode Scanner - Cable Connectivity - 1D, 2D - Imager - Area - USB, Serial, Keyboard Wedge - Black - IP53 - (3320G-4USB-0-N)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Connectivity Technology: Cable
Scanning Capability: 1D,2D
Barcode Symbology Supported:
Reads standard 1D, PDF, 2D, Postal and OCR symbologies
Image Sensor Type: Imager
Scan Pattern: Area
Field of View (Horizontal): 42°
Field of View (Vertical): 33°
Reading Angle (Skew): 65°
Reading Angle (Pitch): 45°
Motion Tolerance: 106 in/s (2692.40 mm/s)
Maximum Ambient Light: 100000 lux
Drop Specification:
Designed to withstand 1.5 m (5 ft) drops
Minimum Print Contrast: 20%
Minimum Element Resolution (Code 39): 5 mil (0.13 mm)
Maximum Element Resolution (Code 39): 10 mil (0.25 mm)
Maximum Element Resolution (DataMatrix): 10 mil (0.25 mm)
Maximum Element Resolution (PDF417): 6.70 mil (0.17 mm)
Image Sensor Resolution: 838 x 640
Features: Notification LED
Host Interface: USB,Serial,Keyboard Wedge
Maximum Operating Power Consumption: 2.30 W
Input Current: 450 mA
Standby Current: 90 mA
Operating Temperature: 32°F (0°C) to 104°F (40°C)
Storage Temperature: -4°F (-20°C) to 158°F (70°C)
Humidity (Non-condensing): 5% to 95%
Form Factor: Handheld
Color Family: Black
Product Color: Black
Height: 1.02" (26 mm)
Width: 2.01" (51 mm)
Length: 2.87" (73 mm)
Weight (Approximate): 2.72 oz (77 g)
Ingress Protection (IP) Rating: IP53
Application/Usage: Kiosk,Smartphone
Limited Warranty: 2 Year
[custom-specifications]
| Specifications | |
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | 3320G-4USB-0-N |
| Manufacturer Website Address | http://www.honeywell.com |
| Brand Name | Honeywell |
| Product Line | Vuquest |
| Product Model | 3320g |
| Product Name | Vuquest 3320g Barcode Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | Reads standard 1D, PDF, 2D, Postal and OCR symbologies |
| Image Sensor Type | Imager |
| Scan Pattern | Area |
| Field of View (Horizontal) | 42° |
| Field of View (Vertical) | 33° |
| Reading Angle (Skew) | 65° |
| Reading Angle (Pitch) | 45° |
| Motion Tolerance | 106 in/s (2692.40 mm/s) |
| Maximum Ambient Light | 100000 lux |
| Drop Specification | Designed to withstand 1.5 m (5 ft) drops |
| Minimum Print Contrast | 20% |
| Minimum Element Resolution (Code 39) | 5 mil (0.13 mm) |
| Maximum Element Resolution (Code 39) | 10 mil (0.25 mm) |
| Maximum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Maximum Element Resolution (PDF417) | 6.70 mil (0.17 mm) |
| Image Sensor Resolution | 838 x 640 |
| Features | Notification LED |
| Interfaces/Ports | |
| Host Interface | USB,Serial,Keyboard Wedge |
| Power Description | |
| Maximum Operating Power Consumption | 2.30 W |
| Input Current | 450 mA |
| Standby Current | 90 mA |
| Environmental Conditions | |
| Operating Temperature | 32°F (0°C) to 104°F (40°C) |
| Storage Temperature | -4°F (-20°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 5% to 95% |
| Physical Characteristics | |
| Form Factor | Handheld |
| Color Family | Black |
| Product Color | Black |
| Height | 1.02" (26 mm) |
| Width | 2.01" (51 mm) |
| Length | 2.87" (73 mm) |
| Weight (Approximate) | 2.72 oz (77 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP53 |
| Application/Usage | Kiosk,Smartphone |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
Manufacturer-Brochure
[/custom-user-manual]
