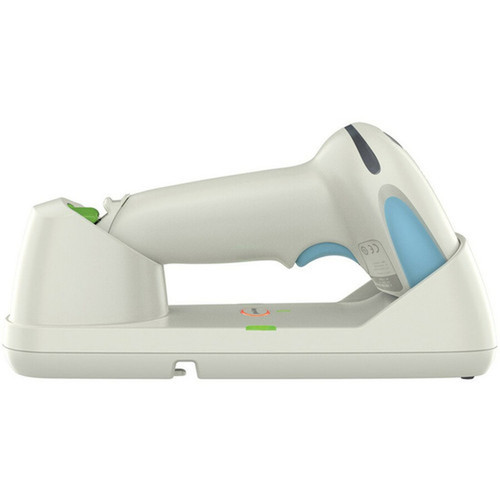

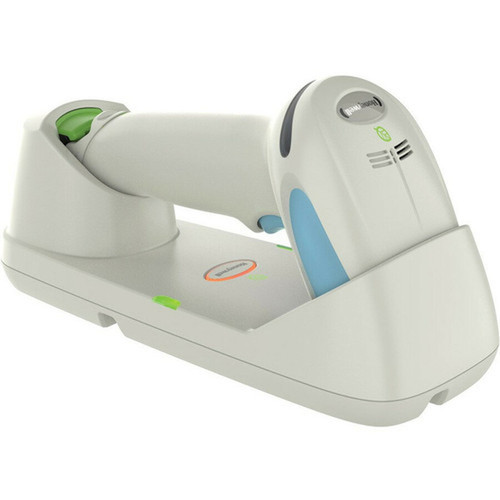

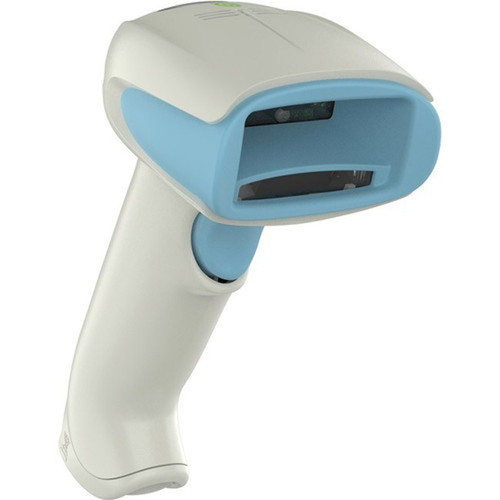

Honeywell Xenon Extreme Performance (XP) 1952h Barcode Scanner - Wireless Connectivity - 23.80" (604.52 mm) Scan Distance - 1D, 2D - - (1952HHD-5-N)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Connectivity Technology: Wireless
Scanning Capability: 1D,2D
Barcode Symbology Supported: Reads standard 1D, PDF, 2D, Postal Digimarc, DOT Code, and OCR symbologies
Image Sensor Type: Imager
Scan Pattern: Single Pass
Scanning Distance: 23.80" (604.52 mm)
Field of View (Horizontal): 48°
Field of View (Vertical): 30°
Reading Angle (Skew): 65°
Reading Angle (Pitch): 45°
Reading Angle (Roll): 360°
Motion Tolerance: 157 in/s (3987.80 mm/s)
Maximum Ambient Light: 100000 lux
Drop Specification: 6 ft to concrete
Minimum Print Contrast: 15%
Minimum Element Resolution (Code 39): 5 mil (0.13 mm)
Maximum Element Resolution (Code 39): 20 mil (0.51 mm)
Minimum Element Resolution (DataMatrix): 7.50 mil (0.19 mm)
Maximum Element Resolution (DataMatrix): 10 mil (0.25 mm)
Minimum Element Resolution (PDF417): 5 mil (0.13 mm)
Maximum Element Resolution (PDF417): 6.70 mil (0.17 mm)
Image Sensor Resolution: 1280 x 800
Features: Vibration,Beep,Notification LED
Bluetooth: Yes
Battery Chemistry: Lithium Ion (Li-Ion)
Operating Temperature: 32°F (0°C) to 122°F (50°C)
Storage Temperature: -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing): 0% to 95%
Form Factor: Handheld
Color Family: White
Product Color: White
Height: 6.30" (160 mm)
Width: 2.80" (71.10 mm)
Length: 4.10" (104.10 mm)
Weight (Approximate): 7.50 oz (212.62 g)
Ingress Protection (IP) Rating: IP52
Application/Usage: Healthcare
Limited Warranty: 3 Year
Additional Warranty Information:
Battery Pack warranty is one year
- Increases productivity by giving the opportunity to wander, without the tangle of cables
- Bluetooth technology - Allows compatibility with most of your smart devices
[custom-specifications]
| Specifications | |
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | 1952HHD-5-N |
| Manufacturer Website Address | http://www.honeywell.com |
| Brand Name | Honeywell |
| Product Line | Xenon Extreme Performance (XP) |
| Product Series | 1952 |
| Product Model | 1952h |
| Product Name | Xenon Extreme Performance (XP) 1952h Barcode Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Wireless |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | Reads standard 1D, PDF, 2D, Postal Digimarc, DOT Code, and OCR symbologies |
| Image Sensor Type | Imager |
| Scan Pattern | Single Pass |
| Scanning Distance | 23.80" (604.52 mm) |
| Field of View (Horizontal) | 48° |
| Field of View (Vertical) | 30° |
| Reading Angle (Skew) | 65° |
| Reading Angle (Pitch) | 45° |
| Reading Angle (Roll) | 360° |
| Motion Tolerance | 157 in/s (3987.80 mm/s) |
| Maximum Ambient Light | 100000 lux |
| Drop Specification | 6 ft to concrete |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (Code 39) | 5 mil (0.13 mm) |
| Maximum Element Resolution (Code 39) | 20 mil (0.51 mm) |
| Minimum Element Resolution (DataMatrix) | 7.50 mil (0.19 mm) |
| Maximum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Minimum Element Resolution (PDF417) | 5 mil (0.13 mm) |
| Maximum Element Resolution (PDF417) | 6.70 mil (0.17 mm) |
| Image Sensor Resolution | 1280 x 800 |
| Features | Vibration,Beep,Notification LED |
| Network & Communication | |
| Bluetooth | Yes |
| Battery Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Environmental Conditions | |
| Operating Temperature | 32°F (0°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 0% to 95% |
| Physical Characteristics | |
| Form Factor | Handheld |
| Color Family | White |
| Product Color | White |
| Height | 6.30" (160 mm) |
| Width | 2.80" (71.10 mm) |
| Length | 4.10" (104.10 mm) |
| Weight (Approximate) | 7.50 oz (212.62 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP52 |
| Application/Usage | Healthcare |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Battery Pack warranty is one year |
