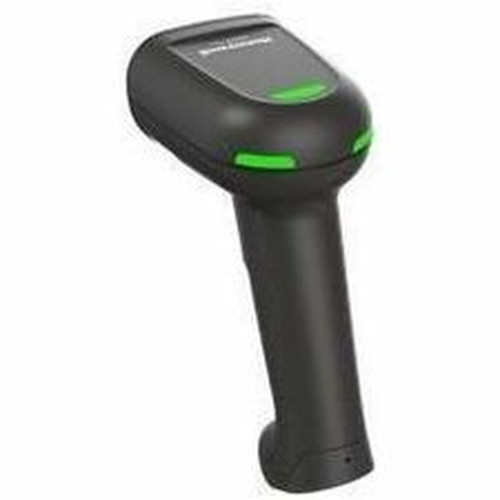

Honeywell 1960GHD-2-2-N Xenon Ultra 1960G Corded Handheld Scanner - 1D/2D Barcode - 32. 07" Scan Distance - High Density Imager - USB/Serial - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The Xenon Ultra 1960G features a 1280 x 1080 pixel image sensor that supports high-density scanning with precise element resolution. It reads Code 39 barcodes from 3 mil to 20 mil, DataMatrix codes from 5 mil to 10 mil, and PDF417 codes from 5 mil to 6.70 mil. The scanner maintains a 15% minimum print contrast requirement for consistent readability across various label qualities.
Advanced motion tolerance of 133.86 inches per second allows for rapid pass scanning, while wide reading angles (65° skew, 65° pitch, 360° roll) and a 42° horizontal by 36° vertical field of view ensure flexible positioning. The white LED illumination system operates effectively in ambient light up to 100,000 lux.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Light Source, Host Interface, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This scanner delivers professional-grade performance with the reliability needed for continuous operation in business-critical environments. The combination of imaging precision, environmental durability, and straightforward connectivity makes it a dependable tool for improving operational efficiency.
Superior Scanning Range
The 32.07-inch scanning distance allows operators to scan items without direct contact, improving workflow speed and reducing physical strain in high-volume settings.
- Extended reach for ergonomic operation
- Maintains accuracy at distance
Rugged Design
Built to withstand drops up to 1.8 meters onto concrete and rated IP52 for protection against dust and water drips, this scanner maintains performance in challenging work environments.
- Drop-tested construction
- Environmental sealing
Immediate Feedback
Audible beep and notification LED provide instant confirmation of successful scans, reducing errors and training requirements for new users.
- Visual and audible indicators
- Instant scan confirmation
Deployment / Use Cases
The Xenon Ultra 1960G is specifically designed for applications where reliability, speed, and durability are essential. Its cable connectivity makes it ideal for fixed installations where consistent power and data transmission are required without the complexity of battery management or wireless configuration.
In retail environments, this scanner excels at point-of-sale terminals, customer service desks, and price verification stations. The extended scan range allows cashiers to process items quickly without precise positioning, while the rugged construction withstands the daily demands of high-traffic stores.
Industrial & Manufacturing
Track components through assembly lines, manage inventory in warehouses, and verify parts in clean manufacturing environments. The scanner operates reliably across the full industrial temperature range.
- Component tracking
- Inventory management
- Manufacturing verification
Commercial Service & Self-Checkout
Deploy at self-service kiosks, library systems, or equipment rental counters where public use demands durability and intuitive operation. The immediate feedback mechanisms guide users through the scanning process.
- Public-facing applications
- Intuitive user experience
- High-availability operation
Physical Profile
The handheld form factor provides comfortable operation during extended use, with a balanced weight of just 5.19 ounces. The black finish offers a professional appearance that blends seamlessly with various workstation aesthetics while providing practical resistance to visible wear.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 5.19 oz (147.20 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 5.19 oz (147.20 g)
Highlights
- Reads both 1D and 2D barcodes with high accuracy
- 32.07-inch scanning distance for flexible operation
- High-density imager with 1280 x 1080 resolution
- Cable connectivity with USB and Serial interfaces
- IP52 rating for dust and drip protection
- Drop-tested to 1.8 meters onto concrete
- White LED illumination for consistent scanning
- Wide 360° reading angle for flexible positioning
- Operates in temperatures from 32°F to 122°F
- Audible beep and LED notification for scan confirmation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | 1960GHD-2-2-N |
| Brand Name | Honeywell |
| Product Line | Xenon Ultra |
| Product Model | 1960G |
| Product Name | Xenon Ultra 1960G Corded Handheld Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D,2D |
| Light Source | LED |
| Image Sensor Type | Imager |
| Scanner Range | High Density |
| Scanning Distance | 32.07" (814.58 mm) |
| Field of View (Horizontal) | 42° |
| Field of View (Vertical) | 36° |
| Reading Angle (Skew) | 65° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 360° |
| Motion Tolerance | 133.86 in/s (3400 mm/s) |
| Maximum Ambient Light | 100000 lux |
| Drop Specification | 1.8 m (6 ft) to concrete across operating temp range |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (Code 39) | 3 mil (0.08 mm) |
| Maximum Element Resolution (Code 39) | 20 mil (0.51 mm) |
| Minimum Element Resolution (DataMatrix) | 5 mil (0.13 mm) |
| Maximum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Minimum Element Resolution (PDF417) | 5 mil (0.13 mm) |
| Maximum Element Resolution (PDF417) | 6.70 mil (0.17 mm) |
| Image Sensor Resolution | 1280 x 1080 |
| Illumination Type | LED |
| Illumination Color | White |
| Air Electrostatic Discharge (+/-) | 15kV |
| Features | Beep,Notification LED |
| Interfaces/Ports | |
| Host Interface | USB,Serial |
| Power Description | |
| Maximum Operating Power Consumption | 2.50 W |
| Environmental Conditions | |
| Operating Temperature | 32°F (0°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 0% to 95% |
| Physical Characteristics | |
| Form Factor | Handheld |
| Color Family | Black |
| Product Color | Black |
| Weight (Approximate) | 5.19 oz (147.20 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP52 |
| Application/Usage | Retail,Assembly Line,Component Tracking,Manufacturing,Light/Clean Manufacturing,Inventory,Self-checkout,Commercial Service |
User Manual
FAQ
What types of barcodes can this scanner read?
The Honeywell Xenon Ultra 1960G reads both 1D linear barcodes and 2D matrix codes. It supports popular formats including Code 39 (3-20 mil), DataMatrix (5-10 mil), and PDF417 (5-6.70 mil). This comprehensive coverage makes it suitable for retail, inventory, manufacturing, and logistics applications where multiple barcode types are encountered.
How far away can I scan barcodes with this device?
This scanner has a maximum scanning distance of 32.07 inches (814.58 mm). The extended reach allows operators to scan items without direct contact, improving workflow efficiency and reducing physical strain in high-volume environments like retail checkout or warehouse picking stations.
What connectivity options does this scanner offer?
The scanner uses cable connectivity with both USB and Serial host interfaces. This wired approach provides reliable, always-on connections without wireless interference concerns or battery management requirements. The dual interface support ensures compatibility with various point-of-sale systems, computers, and industrial equipment.
Is this scanner durable enough for industrial use?
Yes, the Xenon Ultra 1960G is built for demanding environments. It's drop-tested to withstand 1.8-meter falls onto concrete and carries an IP52 rating for protection against dust and water drips. The scanner operates across a wide temperature range from 32°F to 122°F, making it suitable for manufacturing floors, warehouses, and outdoor applications.
What feedback does the scanner provide during operation?
The scanner offers both audible and visual confirmation of successful scans. An integrated beeper provides an audible tone, while a notification LED gives visual feedback. This immediate confirmation helps operators work quickly and confidently, reducing errors and training requirements in fast-paced environments.
Where is this scanner typically deployed?
This scanner is designed for retail point-of-sale, assembly line component tracking, manufacturing verification, inventory management, self-checkout systems, and commercial service applications. Its combination of scanning performance, durability, and cable connectivity makes it ideal for fixed workstation deployments where reliability is critical.
What duplex or duty-cycle detail is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
What connectivity options are listed?
Connectivity details help confirm how the product integrates with your network, accessories, and surrounding peripherals before rollout or replacement planning. They are often the difference between a technically compatible device and one that is genuinely easy to deploy.
