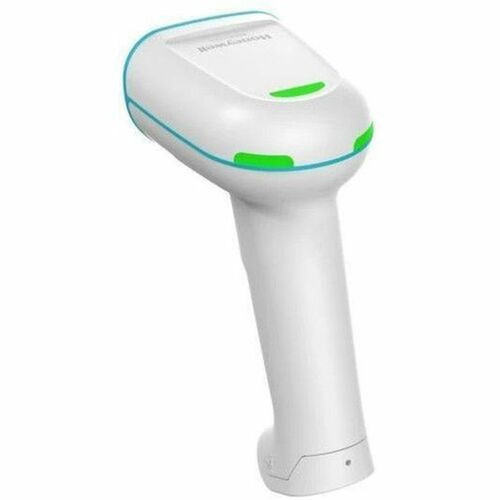

Honeywell Xenon Ultra 1960h Healthcare Scanner - Cable Connectivity - 43.90" (1115.06 mm) Scan Distance - 1D, 2D - LED - Imager - - - (1960HSR-5-N)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Reads standard 1D, PDF, 2D, Postal Digimarc, DOT Code, and OCR symbologies
- 1.8 m (6 ft) to concrete across operating temp range
Connectivity Technology: Cable
Scanning Capability: 1D,2D
Barcode Symbology Supported:
Light Source: LED
Image Sensor Type: Imager
Scanner Range: Standard Range
Scanning Distance: 43.90" (1115.06 mm)
Field of View (Horizontal): 42°
Field of View (Vertical): 36°
Reading Angle (Skew): 65°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 360°
Motion Tolerance: 157.48 in/s (4000 mm/s)
Maximum Ambient Light: 100000 lux
Drop Specification:
Minimum Print Contrast: 15%
Minimum Element Resolution (Code 39): 3 mil (0.08 mm)
Maximum Element Resolution (Code 39): 20 mil (0.51 mm)
Minimum Element Resolution (DataMatrix): 7.50 mil (0.19 mm)
Maximum Element Resolution (DataMatrix): 10 mil (0.25 mm)
Minimum Element Resolution (PDF417): 5 mil (0.13 mm)
Maximum Element Resolution (PDF417): 6.70 mil (0.17 mm)
Image Sensor Resolution: 1280 x 1080
Illumination Type: LED
Illumination Color: White
Air Electrostatic Discharge (+/-): 15kV
Features: Vibration,Beep,Notification LED
Maximum Operating Power Consumption: 2.50 W
Operating Temperature: 32°F (0°C) to 122°F (50°C)
Storage Temperature: -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing): 0% to 95%
Form Factor: Handheld
Color Family: White
Product Color: White
Weight (Approximate): 5.19 oz (147.20 g)
Ingress Protection (IP) Rating: IP52
Application/Usage: Healthcare,Inventory,Component Tracking,Specimen Collection,Pharmacy
- The Xenon Ultra offers an improved design reducing the amount of nooks or crannies to aid in the reduction of lingering germs.
- In addition to a greendot aimer to visibly enhance targeting and improve scan accuracy, the newly engineered and innovative scan platform empowers snappy scanning operations.
- Multiple operating modes are available to ensure maximum patient comfort while maintaining clinician productivity, such as Patient Do-Not Disturb, Vibration, and Scan Lamp.
- Utilize the cable from your existing deployment of the Xenon XP 1950h on your new deployment of Xenon Ultra 1960.
- The Honeywell Scanner Management Utility (SMU) creates a holistic solution that helps automate how you deploy and update the scanners in your environment.
[custom-specifications]
| Specifications | |
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | 1960HSR-5-N |
| Manufacturer Website Address | http://www.honeywell.com |
| Brand Name | Honeywell |
| Product Line | Xenon Ultra |
| Product Model | 1960H |
| Product Name | Xenon Ultra 1960h Healthcare Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported |
|
| Light Source | LED |
| Image Sensor Type | Imager |
| Scanner Range | Standard Range |
| Scanning Distance | 43.90" (1115.06 mm) |
| Field of View (Horizontal) | 42° |
| Field of View (Vertical) | 36° |
| Reading Angle (Skew) | 65° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 360° |
| Motion Tolerance | 157.48 in/s (4000 mm/s) |
| Maximum Ambient Light | 100000 lux |
| Drop Specification |
|
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (Code 39) | 3 mil (0.08 mm) |
| Maximum Element Resolution (Code 39) | 20 mil (0.51 mm) |
| Minimum Element Resolution (DataMatrix) | 7.50 mil (0.19 mm) |
| Maximum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Minimum Element Resolution (PDF417) | 5 mil (0.13 mm) |
| Maximum Element Resolution (PDF417) | 6.70 mil (0.17 mm) |
| Image Sensor Resolution | 1280 x 1080 |
| Illumination Type | LED |
| Illumination Color | White |
| Air Electrostatic Discharge (+/-) | 15kV |
| Features | Vibration,Beep,Notification LED |
| Power Description | |
| Maximum Operating Power Consumption | 2.50 W |
| Environmental Conditions | |
| Operating Temperature | 32°F (0°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 0% to 95% |
| Physical Characteristics | |
| Form Factor | Handheld |
| Color Family | White |
| Product Color | White |
| Weight (Approximate) | 5.19 oz (147.20 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP52 |
| Application/Usage | Healthcare,Inventory,Component Tracking,Specimen Collection,Pharmacy |
