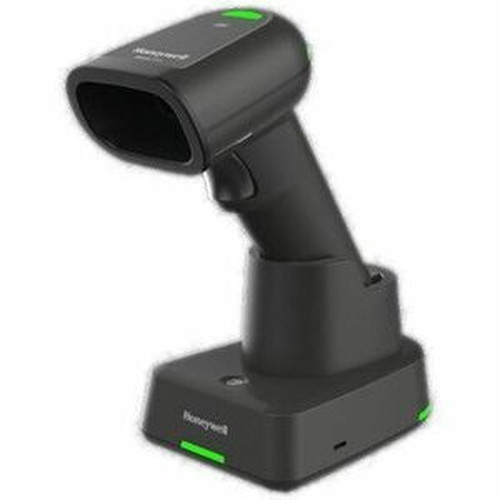

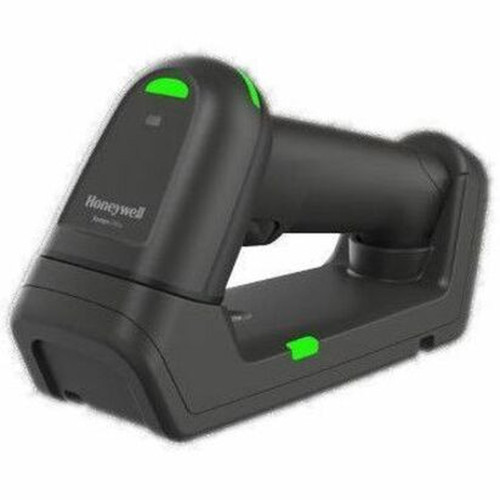

Honeywell 1962GHD-2 XENON ULTRA 1962G Cordless Bluetooth Handheld Scanner - Wireless - 32. 07" Scan Distance - LED - IP52/IP41 - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The scanner uses an area scan pattern with a 42° horizontal and 36° vertical field of view, capable of reading barcodes at skew and pitch angles up to 65° and a full 360° roll. It supports high-density scanning with a motion tolerance of 157.48 in/s, ensuring reliable capture even on fast-moving items.
With an image sensor resolution of 1280 x 1080 and white LED illumination, it achieves a minimum print contrast of 15% and handles barcodes from 3 mil Code 39 up to 20 mil. The scanner operates in ambient light up to 100,000 lux and includes ESD protection rated at ±15kV for static-prone environments.
This section brings together practical product details such as Connectivity Technology, Light Source, Image Sensor Type, Bluetooth, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This scanner stands out with its combination of wireless convenience, industrial durability, and precise scanning performance. The cordless Bluetooth design allows operators to move freely without being tethered to a base, directly increasing productivity in dynamic settings like retail floors or warehouse aisles.
Rugged Construction
Built to withstand 50 drops from 6 feet onto concrete across the full operating temperature range, with IP52 and IP41 ratings for dust and water resistance.
- Meets MIL-STD drop specs
- Water and dust proof
- Wide temperature tolerance
Advanced Scanning Optics
Features a high-resolution imager with wide reading angles and excellent motion tolerance, capable of capturing damaged, poorly printed, or high-density barcodes.
- 1280 x 1080 resolution
- 65° skew and pitch tolerance
- Handles 3 mil to 20 mil barcodes
Deployment / Use Cases
The Honeywell XENON ULTRA 1962G is designed for environments where mobility, durability, and reliable barcode capture are critical. Its wireless operation and long battery life make it ideal for shift-based work where constant connectivity and minimal downtime are required.
In retail settings, it supports self-checkout stations, price verification, and inventory management. For manufacturing and assembly lines, it enables component tracking, work-in-progress monitoring, and quality control. The scanner also suits light industrial applications such as warehouse inventory, logistics, and distribution centers where operators need to move freely between zones.
Retail & Point-of-Sale
Enables fast checkout and price lookup without cable restrictions, with LED feedback suitable for customer-facing interactions.
- Self-checkout compatible
- Patient-friendly LED aimer
- Reduces cable clutter
Industrial & Warehouse
Supports inventory management, asset tracking, and assembly verification in demanding environments with its drop-tested and IP-rated housing.
- Component tracking
- Assembly line scanning
- Inventory cycle counts
Physical Profile
The scanner features a compact handheld form factor measuring 6.31" high, 2.77" wide, and 4.26" long, with a weight of 8.71 ounces. Its black finish provides a professional appearance, while the ergonomic shape ensures comfortable grip during extended use. The design includes integrated mounting points for holsters or lanyards, supporting both handheld and hands-free operation modes in active workflows.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 6.31" (160.20 mm), 2.77" (70.40 mm), 8.71 oz (247 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 2.77" (70.40 mm)
- Height
- 6.31" (160.20 mm)
- Weight
- 8.71 oz (247 g)
- Length
- 4.26" (108.20 mm)
Highlights
- Cordless Bluetooth handheld scanner with complete wireless freedom
- Long-range scanning up to 32.07 inches (814.58 mm) for flexible operation
- High-density imager with 1280 x 1080 resolution for precise barcode capture
- Up to 22 hours of battery life from a 3300 mAh lithium-ion pack
- Rugged construction withstands 50 drops from 6 feet onto concrete
- IP52 and IP41 ratings for dust and water resistance in harsh environments
- Wide operating temperature range from 32°F to 122°F (0°C to 50°C)
- White LED illumination with 100,000 lux ambient light tolerance
- Supports retail, manufacturing, inventory, and self-checkout applications
- Includes 3-year limited warranty with extended coverage for key components
Specifications
| Specifications | |
|---|---|
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | 1962GHD-2 |
| Brand Name | Honeywell |
| Product Line | Xenon Ultra |
| Product Model | 1962G |
| Product Name | XENON ULTRA 1962G Cordless Bluetooth Handheld Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Wireless |
| Light Source | LED |
| Image Sensor Type | Imager |
| Scan Pattern | Area |
| Scanner Range | High Density |
| Scanning Distance | 32.07" (814.58 mm) |
| Field of View (Horizontal) | 42° |
| Field of View (Vertical) | 36° |
| Reading Angle (Skew) | 65° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 360° |
| Motion Tolerance | 157.48 in/s (4000 mm/s) |
| Maximum Ambient Light | 100000 lux |
| Drop Specification | Engineered to withstand 50 drops at 1.8 m (6 ft) to concrete across operating temp range |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (Code 39) | 3 mil (0.08 mm) |
| Maximum Element Resolution (Code 39) | 20 mil (0.51 mm) |
| Minimum Element Resolution (DataMatrix) | 5 mil (0.13 mm) |
| Maximum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Minimum Element Resolution (PDF417) | 5 mil (0.13 mm) |
| Maximum Element Resolution (PDF417) | 6.70 mil (0.17 mm) |
| Image Sensor Resolution | 1280 x 1080 |
| Illumination Type | LED |
| Illumination Color | White |
| Air Electrostatic Discharge (+/-) | 15kV |
| Features | Beep,Notification LED |
| Network & Communication | |
| Bluetooth | Yes |
| Radio Frequency | Yes |
| Power Description | |
| Maximum Operating Power Consumption | 10 W |
| Battery Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Capacity | 3300 mAh |
| Maximum Battery Run Time | 22 Hour |
| Maximum Battery Recharge Time | 4.50 Hour |
| Environmental Conditions | |
| Operating Temperature | 32°F (0°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 0% to 95% |
| Physical Characteristics | |
| Form Factor | Handheld |
| Color Family | Black |
| Product Color | Black |
| Durability | Water Proof,Dust Proof |
| Height | 6.31" (160.20 mm) |
| Width | 2.77" (70.40 mm) |
| Length | 4.26" (108.20 mm) |
| Weight (Approximate) | 8.71 oz (247 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP52,IP41 |
| Application/Usage | Retail,Self-checkout,Component Tracking,Assembly Line,Inventory,Light/Clean Manufacturing,Manufacturing |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Supercapacitor: 5 year factory warranty Lithium-ion Battery Pack: 1 year |
User Manual
FAQ
What is the maximum scanning distance of this Honeywell scanner?
The Honeywell XENON ULTRA 1962G scanner has a maximum scanning distance of 32.07 inches (814.58 mm). This long-range capability allows operators to scan barcodes from a comfortable distance, reducing the need to bring items close to the scanner and increasing workflow efficiency in retail, warehouse, or inventory settings.
How long does the battery last on a single charge?
The scanner's 3300 mAh lithium-ion battery provides up to 22 hours of continuous operation on a full charge. This extended runtime supports full shift work without frequent recharging, and the battery recharges in approximately 4.5 hours using the included charging cradle or cable.
Is this scanner durable enough for industrial environments?
Yes, the scanner is engineered for industrial durability. It withstands 50 drops from 1.8 meters (6 feet) onto concrete across the entire operating temperature range. It also carries IP52 and IP41 ingress protection ratings, making it resistant to dust and water splashes in demanding environments like manufacturing floors or warehouses.
What types of barcodes can this scanner read?
The scanner reads a wide range of 1D and 2D barcodes including Code 39 (3 mil to 20 mil), DataMatrix (5 mil to 10 mil), and PDF417 (5 mil to 6.70 mil). Its high-density imager and 15% minimum print contrast capability ensure reliable capture of both standard and challenging barcodes, even those that are damaged, poorly printed, or on reflective surfaces.
What wireless connectivity options does it support?
The scanner features Bluetooth wireless connectivity for cable-free operation. This allows data transmission to compatible base stations, computers, or mobile devices without physical cables. The wireless design increases operator mobility and eliminates cable clutter in retail, inventory, or manufacturing workflows.
What is included in the warranty coverage?
The scanner comes with a 3-year limited warranty. Additionally, specific components have extended coverage: the supercapacitor has a 5-year factory warranty, and the lithium-ion battery pack is covered for 1 year. This comprehensive warranty support ensures long-term reliability for business-critical scanning operations.
What duplex or duty-cycle detail is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
What connectivity options are listed?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
