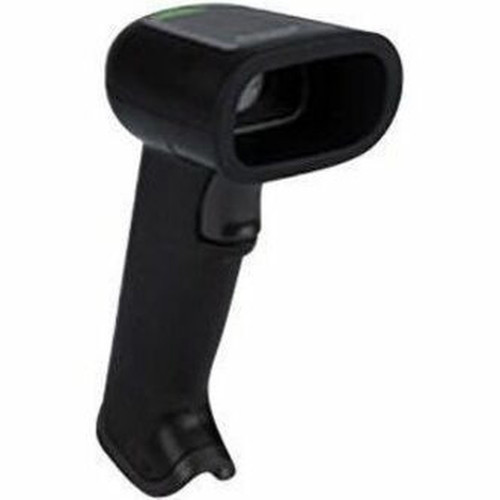

Honeywell 1962GSR-2USB-9BFWC Xenon Ultra 1962G Cordless Bluetooth Handheld Scanner - Wireless - 43. 9" Scan Distance - IP52/IP41 - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The Xenon Ultra 1962G employs advanced imaging technology with a 1280 x 1080 resolution sensor that captures crisp barcode images for accurate decoding. The scanner supports a wide range of barcode symbologies including Code 39, DataMatrix, and PDF417, with minimum element resolutions as fine as 3 mils for Code 39 and 5 mils for 2D codes.
Wireless connectivity is central to the scanner's design, featuring Bluetooth technology for flexible data transmission to host devices. The included USB host interface provides reliable wired connectivity when needed, while the wall-mount charge communication base ensures convenient charging and data synchronization.
This section brings together practical product details such as Connectivity Technology, Light Source, Scanner Range, Bluetooth, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The Xenon Ultra 1962G combines industrial-grade durability with wireless flexibility, making it suitable for environments where both mobility and reliability are essential. Its rugged construction and comprehensive environmental protection ensure consistent performance across diverse operational conditions.
Rugged Construction
Engineered to withstand 50 drops from 6 feet onto concrete, the scanner maintains operation across the full temperature range from 32°F to 122°F.
- IP52/IP41 ingress protection
- Humidity tolerance 0-95% non-condensing
- Storage temperature -40°F to 158°F
Advanced Scanning Optics
The scanner features precise optical characteristics that enable reliable barcode capture from multiple angles and orientations.
- Reading angles: 65° skew, 65° pitch, 360° roll
- Minimum print contrast: 15%
- White LED illumination for consistent performance
Deployment / Use Cases
The cordless design and robust construction of the Xenon Ultra 1962G make it ideal for applications where mobility and durability are paramount. Retail environments benefit from the scanner's ability to handle inventory management, price verification, and self-checkout operations without cable constraints.
In industrial and manufacturing settings, the scanner supports component tracking, assembly line verification, and quality control processes. The wireless connectivity enables operators to move freely throughout facilities while maintaining real-time data capture and transmission capabilities.
Retail Operations
Support inventory management, price verification, and customer self-checkout with wireless scanning flexibility.
- Mobile price checking
- Inventory cycle counting
- Self-service kiosk integration
Industrial Applications
Enable component tracking, assembly verification, and quality control in manufacturing and warehouse environments.
- Assembly line scanning
- Component serialization
- Quality assurance processes
Physical Profile
The Xenon Ultra 1962G features a compact handheld form factor measuring 6.31" in height, 2.77" in width, and 4.26" in length, with a weight of approximately 8.01 ounces. The black finish provides a professional appearance while maintaining visibility in various lighting conditions. The ergonomic design supports comfortable extended use during shift-long scanning operations.
- Width
- 2.77" (70.40 mm)
- Height
- 6.31" (160.20 mm)
- Weight
- 8.01 oz (227 g)
- Length
- 4.26" (108.20 mm)
What's in the Box
The scanner kit includes all components necessary for immediate deployment in wireless scanning applications.
Highlights
- Cordless Bluetooth handheld scanner with wireless connectivity for maximum mobility
- 43.9-inch scanning distance enables flexible barcode capture positioning
- Laser-free LED illumination provides safe, eye-friendly scanning operation
- Rugged construction withstands 50 drops from 6 feet onto concrete
- IP52/IP41 ingress protection for dust and water resistance
- 1280 x 1080 image sensor resolution for precise barcode capture
- Operating temperature range from 32°F to 122°F for diverse environments
- 3-year limited warranty for long-term reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | 1962GSR-2USB-9BFWC |
| Brand Name | Honeywell |
| Product Line | Xenon Ultra |
| Product Series | 1962G |
| Product Name | Xenon Ultra 1962G Cordless Bluetooth Handheld Scanner |
| Product Type | Barcode Scanner Kit |
| Technical Information | |
| Connectivity Technology | Wireless |
| Light Source | LED |
| Scanner Range | Standard Range |
| Scanning Distance | 43.90" (1115.06 mm) |
| Cable Type Included | USB |
| Field of View (Horizontal) | 42° |
| Field of View (Vertical) | 36° |
| Reading Angle (Skew) | 65° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 360° |
| Motion Tolerance | 157.48 in/s (4000 mm/s) |
| Maximum Ambient Light | 100000 lux |
| Drop Specification | Engineered to withstand 50 drops at 1.8 m (6 ft) to concrete across operating temp range |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (Code 39) | 3 mil (0.08 mm) |
| Maximum Element Resolution (Code 39) | 20 mil (0.51 mm) |
| Minimum Element Resolution (DataMatrix) | 5 mil (0.13 mm) |
| Maximum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Minimum Element Resolution (PDF417) | 5 mil (0.13 mm) |
| Maximum Element Resolution (PDF417) | 6.70 mil (0.17 mm) |
| Image Sensor Resolution | 1280 x 1080 |
| Illumination Color | White |
| Network & Communication | |
| Bluetooth | Yes |
| Interfaces/Ports | |
| Host Interface | USB |
| Environmental Conditions | |
| Operating Temperature | 32°F (0°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 0% to 95% |
| Physical Characteristics | |
| Form Factor | Handheld |
| Color Family | Black |
| Product Color | Black |
| Height | 6.31" (160.20 mm) |
| Width | 2.77" (70.40 mm) |
| Length | 4.26" (108.20 mm) |
| Weight (Approximate) | 8.01 oz (227 g) |
| Miscellaneous | |
| Package Contents | Xenon Ultra 1962G Cordless Bluetooth Handheld Scanner USB Type A 2.7M straight cable Wallmount Charge Communication Base |
| Ingress Protection (IP) Rating | IP52,IP41 |
| Application/Usage | Retail,Industrial,Assembly Line,Component Tracking,Inventory,Self-checkout,Manufacturing |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What type of connectivity does the Honeywell Xenon Ultra 1962G scanner support?
The Xenon Ultra 1962G features wireless Bluetooth connectivity for cordless operation, along with a USB host interface for wired connectivity when needed. The included wall-mount charge communication base provides both charging and data synchronization capabilities for flexible deployment in various scanning environments.
How durable is this handheld scanner for industrial use?
The scanner is engineered to withstand 50 drops from 1.8 meters (6 feet) onto concrete across its full operating temperature range. It features IP52 and IP41 ingress protection ratings for dust and water resistance, and operates reliably in temperatures from 32°F to 122°F with humidity tolerance from 0% to 95% non-condensing.
What is the maximum scanning distance of this barcode scanner?
The Xenon Ultra 1962G has a scanning distance of 43.90 inches (1115.06 mm), allowing operators to capture barcodes from a comfortable distance. This extended range is particularly useful for scanning items on high shelves, across conveyor belts, or in other situations where close proximity isn't practical.
What types of barcodes can this scanner read?
The scanner reads standard 1D and 2D barcode symbologies including Code 39, DataMatrix, and PDF417. It supports minimum element resolutions as fine as 3 mils (0.08 mm) for Code 39 and 5 mils (0.13 mm) for DataMatrix and PDF417 codes, with maximum resolutions up to 20 mils for Code 39 and 10 mils for DataMatrix.
What is included in the package with the scanner?
The complete kit includes the Xenon Ultra 1962G Cordless Bluetooth Handheld Scanner, a USB Type A 2.7-meter straight cable for connectivity, and a wall-mount charge communication base. This base serves as both a charging station and communication hub for the wireless scanner.
What environments is this scanner suitable for?
The scanner is designed for retail, industrial, assembly line, component tracking, inventory management, self-checkout, and manufacturing applications. Its rugged construction, wireless operation, and environmental protection make it suitable for demanding environments where mobility, durability, and reliable performance are essential.
What duplex or duty-cycle detail is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
What connectivity options are listed?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
