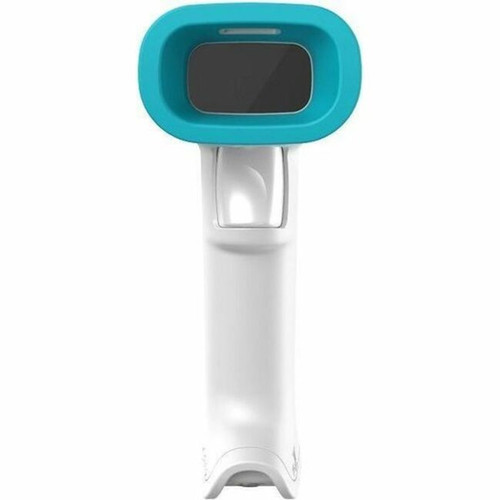

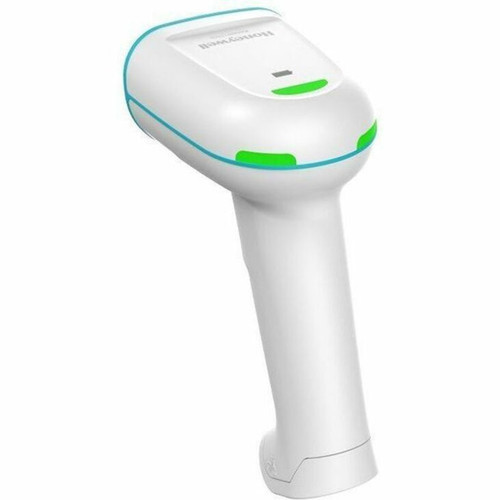

Honeywell 1962HSR-5USB-5-N Xenon Ultra 1962h Healthcare Scanner - Wireless 1D/2D Barcode Scanner with Bluetooth - RF - USB - 1 scan/s - LED Imager
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This scanner utilizes an imager-based sensor with a resolution of 1280 x 1088 and a white LED illumination source for consistent barcode reading in various lighting conditions, handling ambient light up to 100,000 lux. It supports a wide range of barcode symbologies including standard 1D, PDF, 2D, Postal, Digimarc, DOT Code, and OCR, with precise element resolution down to 3 mil for Code 39.
The optical system offers a 42° horizontal and 36° vertical field of view, with generous reading angles of 65° skew, 65° pitch, and 360° roll to accommodate awkward scanning positions. Power management is efficient with a maximum operating consumption of 2.50 W, and the battery recharges fully within 4.5 hours. The host interface is USB, ensuring broad compatibility with existing systems.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Bluetooth, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Xenon Ultra 1962h combines industrial durability with healthcare-optimized features, providing a reliable scanning solution that enhances operational efficiency and reduces downtime.
Rugged Healthcare Design
Engineered to survive 50 drops from 1.8 meters onto concrete across its full operating temperature range, with IP52 and IP41 ratings for protection against dust and water ingress, making it ideal for clinical and warehouse environments.
- 50-drop durability
- IP52/IP41 rated
- Wide temperature tolerance
Wireless Flexibility
Offers true cable-free operation with dual wireless connectivity via Bluetooth and radio frequency, paired with a presentation charge and communication base that simplifies docking and data transfer.
- Bluetooth and RF
- USB base included
- Eliminates cable clutter
Precision Scanning
Delivers accurate reads with a high-resolution imager, supporting a broad spectrum of 1D and 2D symbologies at resolutions from 3 mil to 20 mil, ensuring compatibility with diverse barcode types.
- 1D/2D support
- 3 mil minimum resolution
- Wide symbology range
Deployment / Use Cases
This scanner is purpose-built for environments where reliability, hygiene, and mobility are critical. Its healthcare-focused design and robust construction make it suitable for patient-facing applications, while its wireless capability and durability support efficient asset management in dynamic settings.
In hospital pharmacies, it streamlines medication tracking and inventory control. For specimen collection labs, it ensures accurate sample identification. In retail backrooms and warehouses, it accelerates inventory audits and asset verification. The scanner's drop resistance and IP ratings allow it to perform consistently in emergency rooms, mobile clinics, and industrial sites where equipment is subject to rough handling.
Healthcare & Clinical Settings
Ideal for patient wristband scanning, medication administration, lab specimen tracking, and pharmacy inventory, with a design that withstands frequent cleaning and accidental drops.
Inventory & Asset Management
Supports warehouse stock counts, retail inventory audits, and equipment tracking with wireless mobility that allows workers to move freely without being tethered to a station.
Physical Profile
The scanner features a compact handheld form factor measuring 6.31" in height, 2.77" in width, and 4.26" in length, with an approximate weight of 8.99 oz (255 g). This ergonomic design ensures comfortable extended use, while the robust construction includes reinforced corners and a grip-friendly texture. The included USB base provides a stable docking station for charging and communication, maintaining a tidy workspace.
- Width
- 2.77" (70.40 mm)
- Height
- 6.31" (160.20 mm)
- Weight
- 8.99 oz (255 g)
- Length
- 4.26" (108.20 mm)
What's in the Box
The kit includes all necessary components for immediate deployment.
Highlights
- Wireless 1D/2D barcode scanner with Bluetooth and radio frequency connectivity
- Scan speed of 1 scan per second with high-motion tolerance up to 157.48 in/s
- Durable construction withstands 50 drops from 1.8 m and features IP52/IP41 ratings
- Long-lasting 3300 mAh Lithium Ion battery with 4.5-hour recharge time
- LED imager with 1280 x 1088 resolution for reliable reads in bright light up to 100,000 lux
- Supports wide barcode symbology including Code 39, DataMatrix, PDF417, and OCR
- Compact handheld design (6.31" x 2.77" x 4.26") weighing only 8.99 oz
- Ideal for healthcare, inventory, asset tracking, pharmacy, and specimen collection

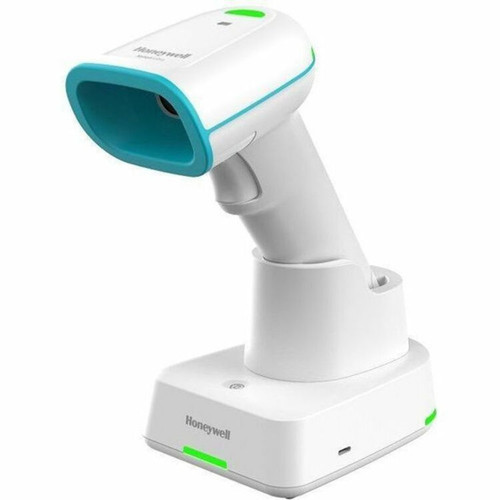

- Includes USB presentation charge and communication base for easy docking
- Backed by a 3-year limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | 1962HSR-5USB-5-N |
| Brand Name | Honeywell |
| Product Line | Xenon |
| Product Model | 1962h |
| Product Name | Xenon Ultra 1962h Healthcare Scanner |
| Product Type | Barcode Scanner Kit |
| Technical Information | |
| Connectivity Technology | Wireless |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | Reads standard 1D PDF 2D Postal Digimarc DOT Code OCR |
| Light Source | LED |
| Image Sensor Type | Imager |
| Scan Rate | 1 scan/s |
| Scanner Range | Standard Range |
| Field of View (Horizontal) | 42° |
| Field of View (Vertical) | 36° |
| Reading Angle (Skew) | 65° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 360° |
| Motion Tolerance | 157.48 in/s (4000 mm/s) |
| Maximum Ambient Light | 100000 lux |
| Drop Specification | Engineered to withstand 50 1.8 m drops to concrete across operating temp range |
| Minimum Element Resolution (Code 39) | 3 mil (0.08 mm) |
| Maximum Element Resolution (Code 39) | 20 mil (0.51 mm) |
| Minimum Element Resolution (DataMatrix) | 5 mil (0.13 mm) |
| Maximum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Minimum Element Resolution (PDF417) | 5 mil (0.13 mm) |
| Maximum Element Resolution (PDF417) | 6.70 mil (0.17 mm) |
| Image Sensor Resolution | 1280 x 1088 |
| Illumination Color | White |
| Network & Communication | |
| Bluetooth | Yes |
| Radio Frequency | Yes |
| Interfaces/Ports | |
| Host Interface | USB |
| Power Description | |
| Maximum Operating Power Consumption | 2.50 W |
| Battery Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Capacity | 3300 mAh |
| Maximum Battery Recharge Time | 4.50 Hour |
| Environmental Conditions | |
| Operating Temperature | 41°F (5°C) to 95°F (35°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 95% |
| Physical Characteristics | |
| Form Factor | Handheld |
| Height | 6.31" (160.20 mm) |
| Width | 2.77" (70.40 mm) |
| Length | 4.26" (108.20 mm) |
| Weight (Approximate) | 8.99 oz (255 g) |
| Miscellaneous | |
| Package Contents | Xenon Ultra 1962h Healthcare Scanner USB Type A Presentation Charge and Communication Base |
| Ingress Protection (IP) Rating | IP52,IP41 |
| Application/Usage | Healthcare,Inventory,Asset Tracking,Pharmacy,Specimen Collection |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What types of barcodes can the Honeywell Xenon Ultra 1962h scanner read?
This scanner reads both 1D and 2D barcodes, supporting a wide range of symbologies including standard 1D codes, PDF, 2D codes, Postal codes, Digimarc, DOT Code, and OCR. It handles precise resolutions from 3 mil (0.08 mm) for Code 39 up to 20 mil (0.51 mm), making it versatile for various labeling standards in healthcare and commercial applications.
How does the wireless connectivity work, and what is included?
The scanner offers dual wireless connectivity via Bluetooth and radio frequency (RF), allowing cable-free operation and data transmission. It includes a USB Type A presentation charge and communication base that serves as a docking station for recharging the battery and facilitating communication with the host system, ensuring seamless integration into your workflow.
What is the battery life and recharge time for this scanner?
The scanner is powered by a 3300 mAh Lithium Ion battery, providing extended usage between charges. It recharges fully in a maximum of 4.5 hours when docked in the included USB base. With a low maximum operating power consumption of 2.50 W, it offers efficient energy use for all-day productivity.
How durable is the Xenon Ultra 1962h for healthcare environments?
Built for rugged use, this scanner is engineered to withstand 50 drops from 1.8 meters onto concrete across its operating temperature range. It also has an IP52 rating for protection against limited dust ingress and water dripping, and an IP41 rating for protection against solid objects larger than 1 mm and vertically falling water drops, making it suitable for clinical settings with frequent cleaning and handling.
What are the key scanning performance specifications?
The scanner delivers a scan rate of 1 scan per second with a motion tolerance of 157.48 inches per second (4000 mm/s). It features a 42° horizontal and 36° vertical field of view, with reading angles of 65° skew, 65° pitch, and 360° roll. The LED imager has a resolution of 1280 x 1088 and operates effectively in ambient light up to 100,000 lux for reliable performance in various lighting conditions.
What applications is this scanner best suited for?
Designed for healthcare and commercial use, it excels in patient-facing applications, inventory management, asset tracking, pharmacy operations, and specimen collection. Its wireless mobility, durability, and precise scanning make it ideal for hospitals, clinics, warehouses, retail stores, and any environment requiring accurate and efficient barcode capture.
What duplex or duty-cycle detail is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
What connectivity options are listed?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
