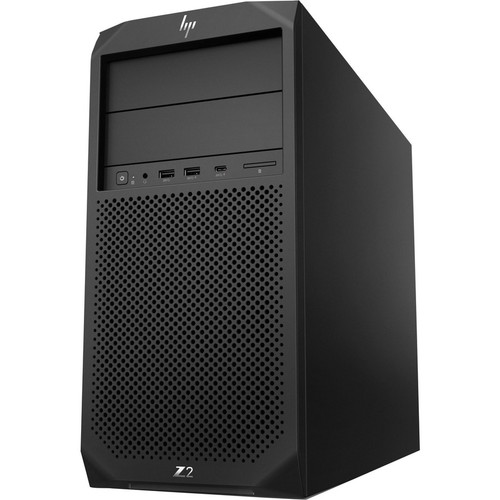

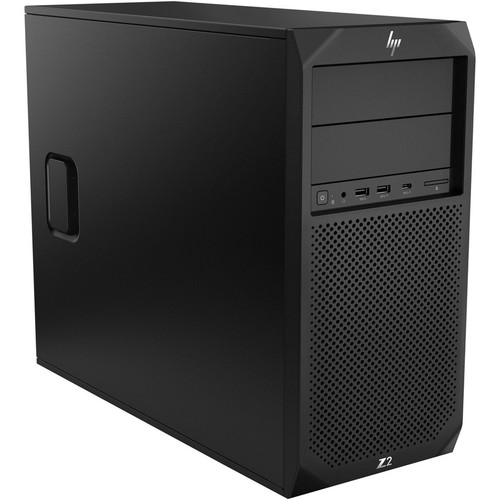

HP 5TG73UP#ABA Z2 G4 Workstation - Intel Core i7-8700 8th Gen - 16 GB RAM - 512 GB SSD - Mini-tower - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the HP Z2 G4 is a hexa-core Intel Core i7-8700 processor running at 3.20 GHz, providing high-speed processing for complex calculations and multitasking. The system includes 16 GB of DDR4 SDRAM across four memory slots, with Intel Optane Memory readiness for future performance enhancements. Storage is handled by a 512 GB solid-state drive connected via a Serial ATA/600 controller, which supports RAID 0 and 1 for data redundancy or performance optimization.
Connectivity features include six USB 3.0 ports and two USB 2.0 ports for peripheral expansion, along with a DisplayPort for monitor output. Gigabit Ethernet ensures fast network transfers, while the power supply accepts 120 V AC or 230 V AC input for flexible deployment. The Mini-tower form factor measures 14.02" x 6.65" x 17.13" (356 mm x 169 mm x 435 mm), offering a compact yet expandable chassis for internal upgrades.
Key Product Advantages
The HP Z2 G4 Workstation stands out with its blend of performance, reliability, and environmental compliance. It is designed to handle intensive workloads while maintaining energy efficiency and meeting strict environmental standards.
Processor Performance
The Intel Core i7-8700 8th Gen processor delivers 3.20 GHz clock speed and six cores, ensuring smooth operation for applications like CAD, virtualization, and data analytics.
- Hexa-core design for parallel processing
- 8th Gen architecture for improved efficiency
- 3.20 GHz base speed for responsive performance
Memory and Storage Flexibility
With 16 GB of DDR4 RAM expandable to 128 GB and a 512 GB SSD, this workstation offers ample resources for current tasks and future growth.
- Four memory slots for easy upgrades
- SSD for faster boot and load times
- RAID support for data protection
Compact and Durable Design
The Mini-tower form factor saves desk space without compromising on internal expansion, built with materials that comply with RoHS and WEEE directives.
- Black finish for professional appearance
- Compact dimensions for flexible placement
- Environmentally friendly construction

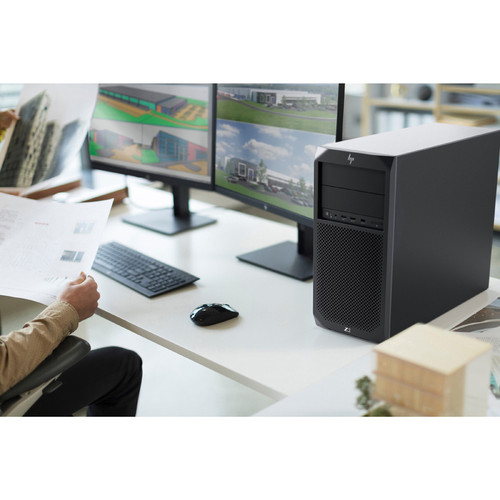

Deployment / Use Cases
The HP Z2 G4 Workstation is ideal for professional environments where reliability and performance are critical. Its configuration supports a wide range of business and technical applications, from office productivity to specialized engineering software.
Common use cases include CAD and 3D modeling workstations, financial analysis systems, software development environments, and multimedia editing stations. The RAID support and Gigabit Ethernet make it suitable for small server roles or network-attached storage solutions in office settings. The compact size allows deployment in space-constrained areas like labs, studios, or shared workspaces, while the robust connectivity ensures compatibility with peripherals like monitors, printers, and external drives.
Engineering and Design
Handles AutoCAD, SolidWorks, and other design software with the Core i7 processor and ample RAM, ensuring smooth rendering and simulation.
Business and Data Analysis
Supports database management, statistical analysis, and virtualization tasks, with SSD storage for quick data access and RAID for data integrity.
Physical Profile
The HP Z2 G4 features a Mini-tower chassis in black, measuring 14.02" in height, 6.65" in width, and 17.13" in depth (356 mm x 169 mm x 435 mm). Weighing approximately 25.13 lb (11400 g), it is designed for easy placement under desks or in compact work areas. The form factor provides internal space for additional components while maintaining a low profile, and the build meets environmental standards including RoHS and WEEE compliance.
- Width
- 6.65" (169 mm)
- Depth
- 17.13" (435 mm)
- Height
- 14.02" (356 mm)
- Weight
- 25.13 lb (11400 g)
Highlights
- Intel Core i7-8700 8th Gen processor with 3.20 GHz speed and six cores
- 16 GB of DDR4 SDRAM, expandable to 128 GB across four memory slots
- 512 GB solid-state drive for fast boot times and application loading
- Mini-tower form factor in black, saving space without sacrificing expandability
- Supports RAID 0 and 1 configurations for data performance or redundancy
- Gigabit Ethernet for high-speed network connectivity
- Multiple USB ports including six USB 3.0 and two USB 2.0 for peripheral support
- DisplayPort output for monitor connectivity
- Environmentally friendly with RoHS and WEEE compliance
- Intel Optane Memory ready for future performance upgrades
Specifications
| Specifications | |
|---|---|
| Manufacturer | HP Inc. |
| Manufacturer Part Number | 5TG73UP#ABA |
| Brand Name | HP |
| Product Series | Z2 G4 |
| Product Name | Z2 Tower G4 Workstation |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Core i7 |
| Processor Generation | 8th Gen |
| Processor Model | i7-8700 |
| Processor Core | Hexa-core (6 Core) |
| Processor Speed | 3.20 GHz |
| Memory | |
| Standard Memory | 16 GB |
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR4 SDRAM |
| Total Number of Memory Slots | 4 |
| Intel Optane Memory Ready | Yes |
| Storage | |
| Total Solid State Drive Capacity | 512 GB |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Number of USB 2.0 Ports | 2 |
| Number of Onboard USB 2.0 Ports | 2 |
| Number of USB 3.0 Ports | 6 |
| Number of Onboard USB 3.0 Ports | 1 |
| DisplayPort | Yes |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Mini-tower |
| Height | 14.02" (356 mm) |
| Width | 6.65" (169 mm) |
| Depth | 17.13" (435 mm) |
| Weight (Approximate) | 25.13 lb (11400 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | China Energy Conservation Program (CECP) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
User Manual
FAQ
What processor does the HP Z2 G4 Workstation use?
The HP Z2 G4 is equipped with an Intel Core i7-8700 8th Gen processor. This hexa-core CPU runs at a base speed of 3.20 GHz, providing strong performance for multitasking and demanding applications like CAD, data analysis, and virtualization. It supports single-processor configurations and is part of Intel's efficient 8th Gen family, ensuring reliable operation in professional environments.
How much memory is installed and can it be upgraded?
This workstation comes with 16 GB of DDR4 SDRAM installed. It has four memory slots, allowing expansion up to a maximum of 128 GB. The DDR4 technology offers faster data transfer rates compared to older standards, and the system is Intel Optane Memory ready, which can further enhance performance with compatible storage accelerators for frequently accessed data.
What type of storage does it have and is RAID supported?
The HP Z2 G4 includes a 512 GB solid-state drive (SSD) connected via a Serial ATA/600 controller. RAID is supported with levels 0 and 1, enabling either striping for improved performance or mirroring for data redundancy. This makes the workstation suitable for tasks requiring fast storage access or additional data protection, such as video editing or server applications.
What are the connectivity options on this workstation?
Connectivity includes six USB 3.0 ports and two USB 2.0 ports for peripherals like keyboards, mice, and external drives. It also features a DisplayPort for monitor output and Gigabit Ethernet for network connections. These ports ensure compatibility with a wide range of devices and support high-speed data transfers, making the system versatile for office or technical use.
What is the form factor and dimensions of the HP Z2 G4?
The HP Z2 G4 has a Mini-tower form factor, measuring 14.02" in height, 6.65" in width, and 17.13" in depth (356 mm x 169 mm x 435 mm). It weighs approximately 25.13 lb (11400 g) and comes in a black finish. This compact design saves desk space while still providing internal room for upgrades, making it ideal for environments where footprint is a consideration.
Does this workstation meet any environmental standards?
Yes, the HP Z2 G4 is environmentally friendly and complies with Restriction of Hazardous Substances (RoHS) and Waste Electrical and Electronic Equipment Directive (WEEE) standards. It also holds the China Energy Conservation Program (CECP) certification for energy efficiency. These features reflect HP's commitment to sustainable manufacturing and reduce the environmental impact of the product throughout its lifecycle.
