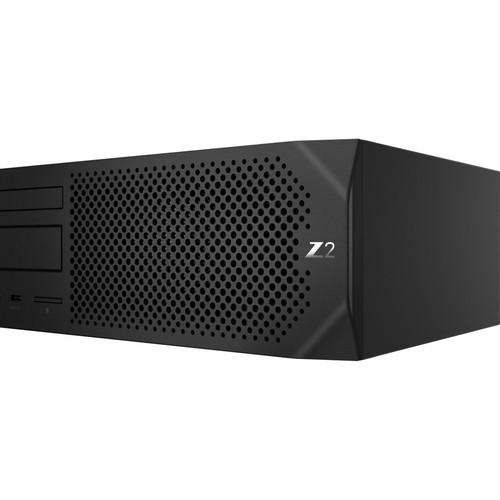

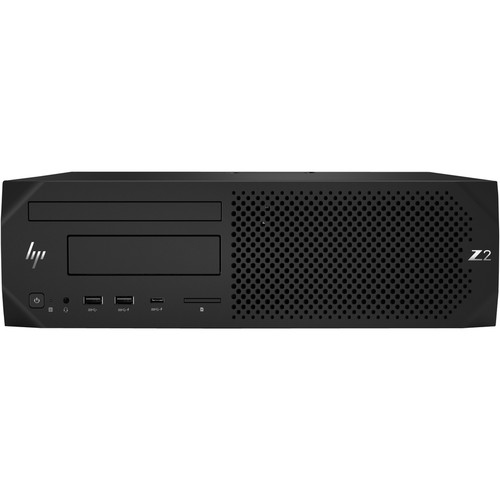

HP 5WF14UP#ABA Z2 G4 Workstation - Intel Core i7-8700 8th Gen Hexa-core 3. 20 GHz - 16 GB DDR4 RAM - Small Form Factor - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the Z2 G4 is the Intel Core i7-8700 processor, a 6-core, 12-thread CPU from the 8th Gen family, providing a solid foundation for compute-heavy tasks. The system supports Intel Optane Memory readiness, allowing for future acceleration of storage performance when paired with compatible modules.
Storage management is handled by a Serial ATA/600 controller with hardware RAID 0 and 1 support, enabling data striping for performance or mirroring for redundancy based on user configuration. Network connectivity is assured through integrated Gigabit Ethernet, suitable for high-bandwidth file transfers and stable network operations.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Standard Memory. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This workstation balances professional-grade performance with a space-efficient footprint, making it an ideal choice for offices, labs, or creative studios where physical space is at a premium. The specialized components and validation typical of HP's Z-series ensure stability under sustained loads.
Expandable Memory Architecture
Four DDR4 memory slots support up to 128 GB of RAM, allowing significant future upgrades to accommodate growing application demands without replacing the entire system.
Robust Connectivity Suite
A total of six USB 3.0 ports, two USB 2.0 ports, DisplayPort output, and Gigabit Ethernet provide ample options for peripherals, displays, and network attachments.
Professional Storage Features
The integrated Serial ATA/600 controller with RAID 0 and 1 support offers flexibility for performance-optimized or fault-tolerant storage configurations using standard SATA drives.
Deployment / Use Cases
The HP Z2 G4 Workstation is tailored for professional scenarios that require dependable computing power in a compact enclosure. Its combination of a capable Intel Core i7 processor, generous RAM, and RAID-ready storage makes it suitable for a range of business and technical applications.
In engineering and design environments, the system can efficiently run CAD software, finite element analysis tools, and simulation programs. For financial analysts and data scientists, the hexa-core processor and expandable memory support complex spreadsheet models, statistical computations, and database queries. Media production teams will appreciate the connectivity for external storage and displays, while the small form factor fits neatly in edit suites or broadcast control rooms.
Engineering & Design Workloads
Run CAD applications, 3D rendering, and simulation software with the multi-threaded performance of the Core i7-8700 and fast data access via DDR4 memory.
Data Analysis & Financial Modeling
Handle large datasets, complex calculations, and multi-tab spreadsheet operations smoothly thanks to the 16 GB RAM and six processing cores.
Physical Profile
The workstation adopts a small form factor chassis measuring 3.94" in height, 13.31" in width, and 15" in depth, offering a compact footprint that conserves valuable desk or workspace. Finished in a professional black color, the design is both discreet and durable. Weighing approximately 17.20 lb, the unit remains manageable for relocation or installation in rack-mount environments with appropriate mounting hardware. The form factor does not sacrifice essential ports, maintaining full connectivity for daily operation.
- Width
- 13.31" (338 mm)
- Depth
- 15" (381 mm)
- Height
- 3.94" (100 mm)
- Weight
- 17.20 lb (7800 g)
Highlights
- Intel Core i7-8700 8th Gen Hexa-core processor at 3.20 GHz for high-performance computing
- 16 GB of DDR4 SDRAM installed, expandable to 128 GB across four memory slots
- Small form factor design with a compact footprint ideal for space-constrained environments
- Serial ATA/600 controller with hardware RAID 0 and 1 support for storage flexibility
- Gigabit Ethernet port for fast and reliable network connectivity
- Six USB 3.0 ports and two USB 2.0 ports for extensive peripheral connectivity
- DisplayPort video output for high-resolution monitor support
- Professional black finish and environmentally compliant construction (RoHS, WEEE)
Specifications
| Specifications | |
|---|---|
| Manufacturer | HP Inc. |
| Manufacturer Part Number | 5WF14UP#ABA |
| Brand Name | HP |
| Product Series | Z2 G4 |
| Product Name | Z2 G4 Workstation |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Core i7 |
| Processor Generation | 8th Gen |
| Processor Model | i7-8700 |
| Processor Core | Hexa-core (6 Core) |
| Processor Speed | 3.20 GHz |
| Memory | |
| Standard Memory | 16 GB |
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR4 SDRAM |
| Total Number of Memory Slots | 4 |
| Intel Optane Memory Ready | Yes |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Number of USB 2.0 Ports | 2 |
| Number of Onboard USB 2.0 Ports | 2 |
| Number of USB 3.0 Ports | 6 |
| Number of Onboard USB 3.0 Ports | 1 |
| DisplayPort | Yes |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Small Form Factor |
| Height | 3.94" (100 mm) |
| Width | 13.31" (338 mm) |
| Depth | 15" (381 mm) |
| Weight (Approximate) | 17.20 lb (7800 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
User Manual
FAQ
What processor is installed in the HP Z2 G4 Workstation?
This workstation comes with an Intel Core i7-8700 processor from the 8th Generation family. It is a hexa-core (6-core) CPU with a base clock speed of 3.20 GHz, designed to handle multi-threaded applications and demanding computational tasks efficiently in professional environments.
How much memory does this workstation have, and can it be expanded?
The system is equipped with 16 GB of DDR4 SDRAM. It features four total memory slots, allowing for expansion up to a maximum of 128 GB. This scalability ensures the workstation can grow with your needs, supporting more memory-intensive applications over time.
What storage controller and RAID options are available?
The HP Z2 G4 includes a Serial ATA/600 (SATA 3.0) storage controller. It supports hardware RAID configurations, specifically levels 0 (striping for performance) and 1 (mirroring for redundancy). This allows users to optimize storage for speed or data protection using compatible SATA drives.
What are the physical dimensions and form factor of this workstation?
This is a small form factor workstation measuring 3.94" in height, 13.31" in width, and 15" in depth. It weighs approximately 17.20 lb. The compact design saves desk space while still providing full workstation capabilities, making it suitable for offices, labs, or environments where space is limited.
What connectivity ports are included on the HP Z2 G4?
Connectivity includes six USB 3.0 ports and two USB 2.0 ports for peripherals, one DisplayPort for video output, and a Gigabit Ethernet port for network access. This range of ports supports multiple monitors, external storage devices, input devices, and fast network transfers.
Is this workstation environmentally compliant?
Yes, the HP Z2 G4 Workstation meets key environmental standards, including Restriction of Hazardous Substances (RoHS) and Waste Electrical and Electronic Equipment Directive (WEEE) compliance. This ensures the product is manufactured with reduced hazardous materials and supports responsible end-of-life recycling practices.
