HP 6K9C1UP#ABA Z2 G9 Workstation - Intel Core i9-14900 14th Gen - 32GB DDR5 RAM - 512GB NVMe SSD - Windows 11 Pro - Tower
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the heart of the Z2 G9 is the Intel Core i9-14900 processor, a 14th Gen chip with a base clock of 2 GHz, built on the LGA-1700 socket and paired with the Intel W680 chipset. This combination supports advanced features like PCIe 4.0 lanes, RAID 0/1 configurations via the integrated SATA/600 controller, and robust memory overclocking headroom. The 32 GB of installed DDR5 RAM operates at 4800 MHz, delivering significantly higher bandwidth than previous generations for improved application responsiveness.
Storage is handled by a 512 GB NVMe SSD using the PCI Express 4.0 x4 interface, offering sequential read/write speeds that dramatically reduce load times for large files and applications. The system does not include an optical drive, reflecting modern usage patterns. For connectivity, the workstation provides 11 USB ports total, with a front-panel USB Type-C port supporting 20 Gbps SuperSpeed data transfer, alongside DisplayPort video output and Gigabit Ethernet for network access.
Key Product Advantages
The Z2 G9 Workstation balances high-performance computing with enterprise manageability and long-term upgradeability. Its tower chassis is designed for easy access to internal components, allowing users to add more memory, storage, or expansion cards as needs evolve. The 700 W power supply ensures stable operation even under peak loads, while the black finish gives it a professional appearance suitable for office or studio environments.
Enterprise-Grade Security & Management
Intel vPro technology enables hardware-enhanced security features like threat detection and remote management, reducing IT overhead for deployment and maintenance.
- Hardware-based security
- Remote configuration and troubleshooting
- Out-of-band management capabilities
Future-Proof Memory Architecture
With four DDR5 memory slots supporting up to 128 GB, the Z2 G9 can scale to meet growing memory demands. The 4800 MHz clock speed ensures low latency for data-intensive tasks.
- 4 DIMM slots
- 128 GB maximum capacity
- DDR5 for higher bandwidth
High-Speed Storage & Expansion
The PCIe NVMe 4.0 SSD delivers exceptional storage performance, while the tower design accommodates additional drives and RAID configurations for redundancy or capacity.
- NVMe for fast boot and load times
- RAID 0/1 support
- Easy internal drive installation
Deployment / Use Cases
This workstation is ideal for professionals in engineering, architecture, media production, and scientific research who require reliable performance for resource-intensive applications. Its combination of a high-core-count CPU, ample RAM, and fast storage makes it well-suited for tasks like finite element analysis, 3D modeling, video editing, and software development.
In corporate or educational IT environments, the Z2 G9 serves as a powerful desktop for users running multiple virtual machines, databases, or simulation software. The tower form factor allows IT departments to standardize on a single platform that can be customized with specific GPUs, network cards, or storage controllers based on departmental needs. The included Windows 11 Pro license ensures compatibility with business software and security policies.
Engineering & Design Workloads
Run CAD software (e.g., AutoCAD, SolidWorks), rendering engines, and simulation tools with smooth performance, thanks to the 24-core processor and fast memory.
Content Creation & Media Production
Handle 4K video editing, 3D animation, and graphic design projects efficiently, with the NVMe SSD reducing project load and export times.
Localization and Operating System
The workstation comes pre-installed with Windows 11 Pro 64-bit in English, providing a full-featured operating system optimized for professional use. Windows 11 Pro includes advanced security features like BitLocker encryption, Windows Defender, and support for domain join, making it suitable for business networks. The English (US) keyboard localization ensures that the physical keyboard matches the OS layout for seamless typing.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile

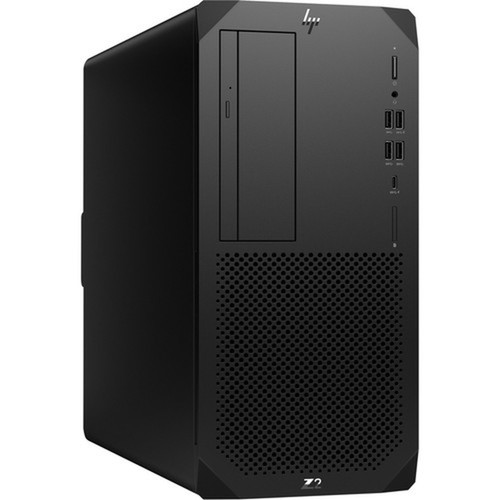

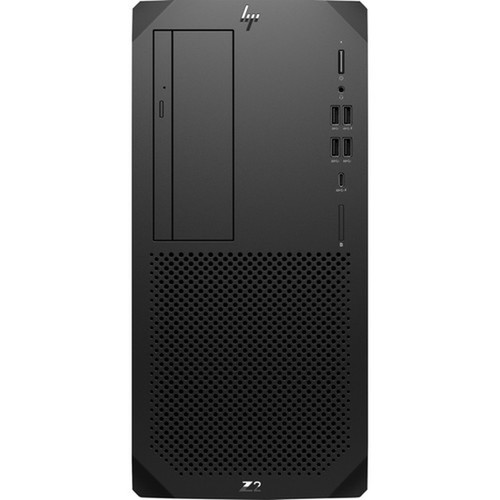

The Z2 G9 features a black tower chassis measuring 15.16 inches in height, 14.02 inches in width, and 6.65 inches in depth (385 mm x 356 mm x 169 mm), with an approximate weight of 13.67 lbs (6200 g). Its compact footprint fits comfortably under a desk or on a workstation cart, while the tower orientation provides excellent airflow for cooling. The design includes tool-less access panels for easy maintenance and upgrades.
- Width
- 14.02" (356 mm)
- Depth
- 6.65" (169 mm)
- Height
- 15.16" (385 mm)
- Weight
- 13.67 lb (6200 g)
What's in the Box
The package includes all essential components to get started right away.
Highlights
- Intel Core i9-14900 14th Gen processor with 24 cores and 32 threads for maximum multitasking performance
- 32 GB of DDR5 RAM at 4800 MHz for fast data access and smooth application responsiveness
- 512 GB PCIe NVMe 4.0 SSD delivers rapid boot times and quick file transfers
- Windows 11 Pro 64-bit pre-installed with English language and US keyboard layout
- Tower form factor in black finish, offering easy internal access for future upgrades
- Intel vPro technology provides enhanced security and remote management capabilities
- 700 W power supply ensures stable operation under heavy computational loads
- 11 USB ports including a front-panel USB Type-C 20Gbps port for high-speed connectivity
- Supports RAID 0/1 configurations for data redundancy or performance optimization
- Gigabit Ethernet and DisplayPort outputs for network and display connectivity
Specifications
| Specifications | |
|---|---|
| Manufacturer | HP Inc. |
| Manufacturer Part Number | 6K9C1UP#ABA |
| Brand Name | HP |
| Product Series | Z2 G9 |
| Product Name | Z2 G9 Workstation |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Core i9 |
| Processor Generation | 14th Gen |
| Processor Model | i9-14900 |
| Processor Core | Tetracosa-core (24 Core) |
| Processor Threads | 32 |
| Processor Speed | 2 GHz |
| Processor Socket | Socket LGA-1700 |
| vPro Technology | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | W680 |
| Memory | |
| Standard Memory | 32 GB |
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 4 |
| Intel Optane Memory Ready | No |
| Memory Clock Speed | 4.80 GHz |
| Memory Configuration | 2 x 16GB |
| Error Checking | Non-ECC |
| Signal Processing | Unbuffered |
| Storage | |
| Total Solid State Drive Capacity | 512 GB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Optical Drive Type | No |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Input Devices | |
| Keyboard Localization | English (US) |
| Interfaces/Ports | |
| Total Number of USB Ports | 11 |
| USB Type-C | Yes |
| USB Type-C Detail | Single Type-C SuperSpeed USB 20Gbps Front Port |
| DisplayPort | Yes |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Language | English |
| Operating System Architecture | 64-bit |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Maximum Power Supply Wattage | 700 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Tower |
| Height | 15.16" (385 mm) |
| Width | 14.02" (356 mm) |
| Depth | 6.65" (169 mm) |
| Weight (Approximate) | 13.67 lb (6200 g) |
| Miscellaneous | |
| Package Contents | Z2 Tower G9 Workstation HP USB 320K Keyboard HP Wired 320M Mouse C13 1.83m Sticker Conventional Desktop Power Cord |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | China Energy Conservation Program (CECP) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3/3/3 (material/labor/onsite) Warranty |
User Manual
FAQ
What processor does the HP Z2 G9 Workstation use?
It features an Intel Core i9-14900 14th Gen processor with 24 cores and 32 threads, operating at a base clock of 2 GHz on the LGA-1700 socket. This high-core-count CPU is designed for demanding workloads like 3D rendering, simulation, and data analysis, providing substantial parallel processing power.
How much memory is installed, and can it be upgraded?
The workstation comes with 32 GB of DDR5 SDRAM installed as two 16 GB modules running at 4800 MHz. It has four total memory slots, supporting a maximum of 128 GB, so you can easily add more RAM by populating the empty slots with compatible DDR5 DIMMs.
What type of storage does it have?
It includes a 512 GB solid-state drive using the PCI Express NVMe 4.0 x4 interface, which offers significantly faster read/write speeds compared to SATA SSDs. This results in quicker boot times, faster application launches, and reduced loading times for large files.
Does it come with an operating system?
Yes, it comes pre-installed with Windows 11 Pro 64-bit in English. Windows 11 Pro provides advanced security features, support for domain join, and compatibility with professional software, making it ideal for business and creative environments.
What connectivity options are available?
The workstation offers 11 USB ports in total, including a front-panel USB Type-C port that supports SuperSpeed 20 Gbps data transfer. It also includes DisplayPort for video output and Gigabit Ethernet for wired network connectivity, ensuring versatile peripheral and display support.
Is this workstation suitable for upgrade and expansion?
Absolutely. The tower form factor provides ample internal space for adding components like additional storage drives, more RAM, or expansion cards. It supports up to 128 GB of RAM across four slots and includes RAID 0/1 support for storage configurations, allowing customization to meet evolving performance needs.
