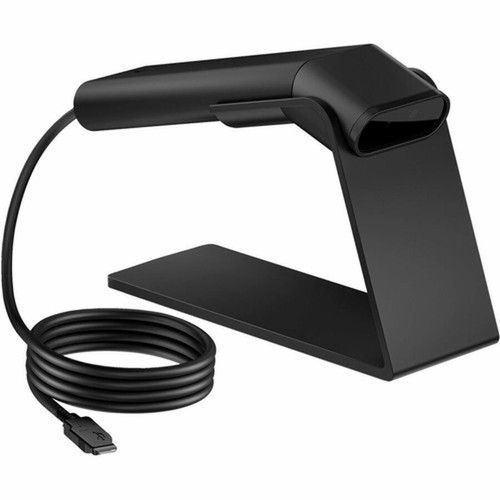

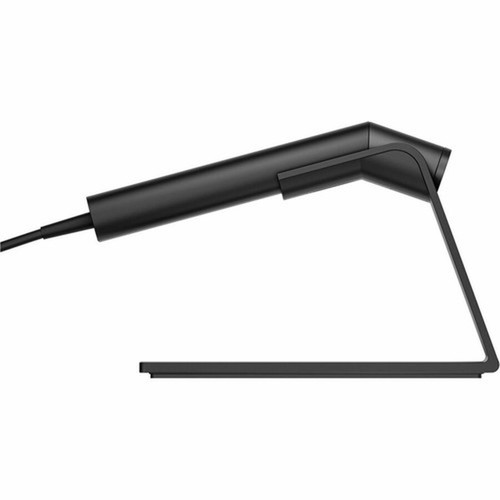

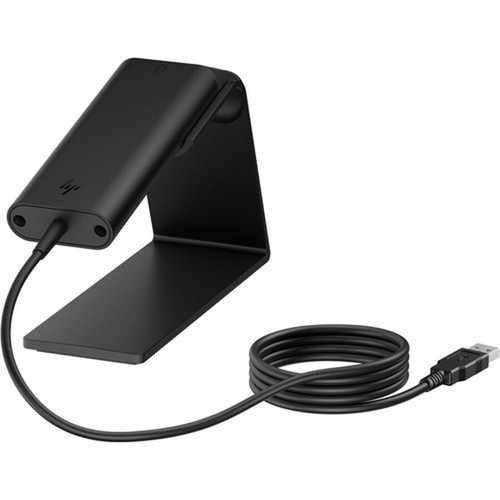

HP 6Y2V4AA Engage 2D G2 Barcode Scanner - USB Cable Connectivity - 1D/2D Imager - Ebony Black - IP42
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This scanner supports comprehensive barcode symbology including Code 128, QR code, Data Matrix, PDF417, UPC/EAN, and postal codes from multiple regions. The 60° skew and 55° pitch reading angles provide flexible scanning positions, while 20% minimum print contrast ensures reliable performance on challenging labels.
Advanced features include Direct Part Marking (DPM) decoding for etched or engraved codes, plus integrated data parsing and formatting capabilities. The scanner operates across a wide temperature range from -4°F (-20°C) to 140°F (60°C) with 5% to 95% humidity tolerance for versatile deployment.
Relevant factors for this section include Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Host Interface. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The HP Engage 2D G2 combines high-performance scanning with practical durability. The imager technology captures both 1D and 2D codes with precision, while the compact 6.30" x 1.70" x 1.30" design fits comfortably in hand for extended use.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Comprehensive Symbology Support, Durable Construction.
Comprehensive Symbology Support
Handles over 30 barcode types including industrial, retail, postal, and 2D matrix codes for universal compatibility across applications.
Durable Construction
IP42 rating provides protection against dust ingress and water splashes, ensuring reliable operation in challenging environments.
Deployment / Use Cases
This scanner excels in retail environments where rapid, accurate scanning drives customer throughput. The USB connectivity integrates seamlessly with existing PC-based POS systems, while the wide symbology support handles everything from standard UPC codes to specialized industrial markings.
In warehouse and logistics applications, the scanner's DPM capability allows reading of etched serial numbers on metal components, while the environmental tolerance ensures operation across temperature-controlled and non-conditioned spaces.
Relevant factors for this section include Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Host Interface. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Retail Point of Sale
Ideal for checkout counters with quick scanning of product barcodes, loyalty cards, and mobile payment QR codes.
Warehouse Inventory Management
Supports inventory tracking with DPM decoding for direct-marked parts and comprehensive industrial symbology support.
Physical Profile
The handheld form factor measures 6.30" (160.02 mm) in height, 1.70" (43.18 mm) in width, and 1.30" (33.02 mm) in depth, with a lightweight 4.59 oz (130.12 g) construction. The Ebony Black finish provides a professional appearance that complements retail and industrial environments alike.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 6.30" (160.02 mm), 1.70" (43.18 mm), 1.30" (33.02 mm), 4.59 oz (130.12 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 1.70" (43.18 mm)
- Depth
- 1.30" (33.02 mm)
- Height
- 6.30" (160.02 mm)
- Weight
- 4.59 oz (130.12 g)
Highlights
- 1D and 2D barcode scanning capability
- USB cable connectivity for PC integration
- Imager sensor with 1280 x 800 resolution
- Supports over 30 barcode symbologies
- Direct Part Marking (DPM) decoding
- IP42 dust and water splash protection
- Compact handheld design in Ebony Black
- Wide operating temperature range (-4°F to 140°F)
- 60° skew and 55° pitch reading angles
- Includes data parsing and formatting features
Specifications
| Specifications | |
|---|---|
| Manufacturer | HP Inc. |
| Manufacturer Part Number | 6Y2V4AA |
| Brand Name | HP |
| Product Line | Engage |
| Product Name | Engage 2D G2 Barcode Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 2D: Code 93 Industrial 2 of 5 Code 39 Code 49 ISBT 128 ISBN GS1 DataBar QR code MaxiCode Aztec code MicroPDF417 Codabar Code 128 Code 11 Code 16K Interleaved 2 of 5 PDF417 MSI-Plessey Data Matrix Australian Post China Post Kix (Netherlands) Post Plessey, ISSN Royal Mail ITF-14 GS1 DataBar Expanded Stacked Standard 2 of 5 GS1-128 UPC/EAN supplementals ITF-6 FEBRABAN GS1-128 Composites Chinese Sensible Code Code One AIM128 Coupon Code Matrix 25 GM Code GS1 DataBar Expanded Omni-directional Postal Code USPS Intelligent Mail USPS Planet USPS Postnet |
| Image Sensor Type | Imager |
| Reading Angle (Skew) | 60° |
| Reading Angle (Pitch) | 55° |
| Minimum Print Contrast | 20% |
| Direct Part Marking (DPM) Decoding | Yes |
| Image Sensor Resolution | 1280 x 800 |
| Illumination Type | LED |
| Illumination Color | White |
| Features | Data Parser,Data Formatter |
| Interfaces/Ports | |
| Host Interface | USB |
| Environmental Conditions | |
| Operating Temperature | -4°F (-20°C) to 140°F (60°C) |
| Humidity (Non-condensing) | 5% to 95% |
| Physical Characteristics | |
| Form Factor | Handheld |
| Product Color | Ebony Black |
| Height | 6.30" (160.02 mm) |
| Width | 1.70" (43.18 mm) |
| Depth | 1.30" (33.02 mm) |
| Weight (Approximate) | 4.59 oz (130.12 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP42 |
| Platform Supported | PC |
User Manual
FAQ
What types of barcodes can this HP scanner read?
The HP Engage 2D G2 Scanner reads both 1D and 2D barcodes, supporting over 30 symbologies including Code 128, QR code, Data Matrix, PDF417, UPC/EAN, postal codes from multiple regions, and industrial codes like Code 39 and Interleaved 2 of 5. This comprehensive support covers retail, warehouse, logistics, and specialized industrial applications.
How does this scanner connect to my system?
This scanner uses USB cable connectivity for direct connection to PC systems. The USB interface provides plug-and-play compatibility with Windows-based point-of-sale and inventory management software, requiring no additional interface converters or power adapters for operation.
What is Direct Part Marking (DPM) decoding?
Direct Part Marking decoding allows the scanner to read barcodes that are etched, engraved, or directly marked onto metal, plastic, or other material surfaces. This capability is essential for tracking serial numbers on manufactured components, automotive parts, and industrial equipment where traditional label application isn't practical.
What environmental protection does the IP42 rating provide?
The IP42 rating indicates protection against solid objects larger than 1mm (dust protection) and water droplets falling vertically at up to 15 degrees from vertical. This makes the scanner suitable for retail environments where occasional liquid splashes occur and dusty warehouse conditions where particulate matter is present.
What are the scanning angle specifications?
The scanner offers 60° skew (horizontal) and 55° pitch (vertical) reading angles, providing flexibility in scanning position. These wide angles allow operators to scan barcodes from various orientations without requiring perfect alignment, increasing scanning speed and reducing user fatigue during extended use.
What is included with the scanner purchase?
The scanner comes as a standalone unit with USB cable connectivity. Documentation including user manuals and manufacturer brochures are available for download through the provided links. The compact design requires minimal setup—simply connect the USB cable to your PC system for immediate scanning capability.
