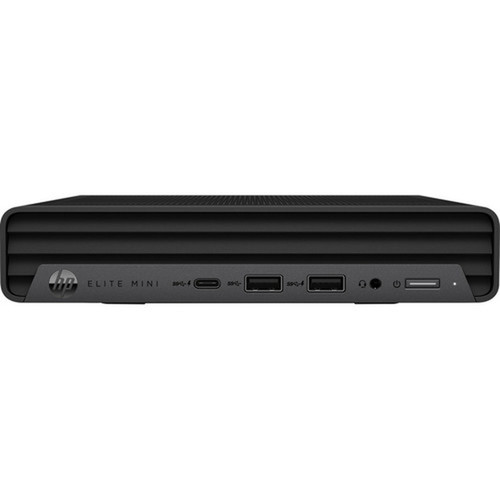

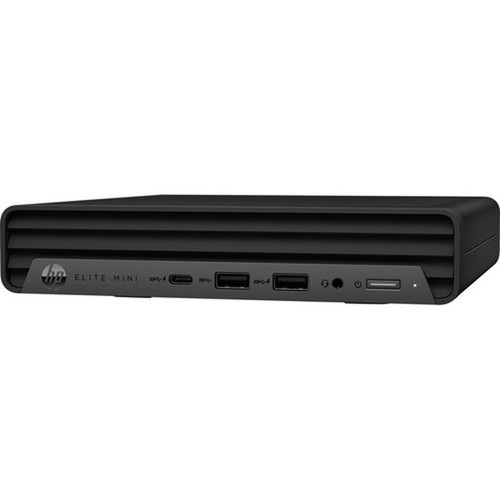

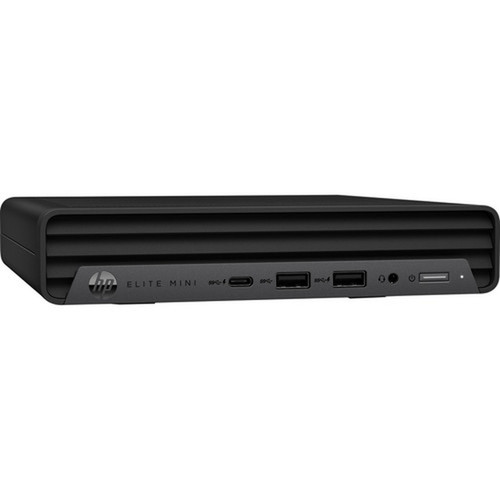

HP 7J4P9EC#ABA Elite Mini 800 G9 Desktop Computer - Intel Core i7-12700 12th Gen vPro - 16 GB DDR5 - Mini PC
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the heart of the Elite Mini 800 G9 is Intel's Core i7-12700 processor, featuring 12 cores (8 performance + 4 efficiency) with a base clock of 2.10 GHz and maximum turbo frequency reaching 4.90 GHz. This 12th Gen architecture delivers significant performance improvements over previous generations, particularly in multi-threaded applications. The processor includes Intel vPro technology for enhanced security, remote management, and hardware-based stability features essential for business environments.
Memory performance is accelerated through 16 GB of DDR5 SDRAM, providing higher bandwidth and improved power efficiency compared to DDR4. The Intel Q670 chipset enables robust platform features including support for multiple high-speed storage devices and peripheral connectivity. Graphics are handled by Intel UHD Graphics 770 with shared DDR5 memory, capable of driving multiple displays and accelerating media processing tasks through hardware decoding.
Key Product Advantages
The Elite Mini 800 G9 combines enterprise performance with minimalist design, offering distinct advantages for modern workspace deployment.
Space-Efficient Power
Despite its compact dimensions (under 7 inches square and just 1.34 inches tall), this mini PC delivers full desktop processing capability. The small footprint enables flexible placement options including VESA mounting, desktop tucking, or integration into kiosk and digital signage applications where space is at a premium.
Business-Grade Management
Intel vPro technology provides hardware-enhanced security features, remote management capabilities, and system stability controls. Combined with tool-less chassis access for easy maintenance, this makes the Elite Mini 800 G9 ideal for IT-managed environments requiring reliable operation with minimal onsite intervention.
Modern Connectivity Suite
The system includes six USB ports with five supporting USB 3.2 Gen 2 speeds (10 Gbps) and one front-facing USB Type-C port operating at 20 Gbps. This connectivity, combined with Gigabit Ethernet via the Intel I219-LM controller, ensures compatibility with high-speed peripherals, external storage, and network resources.
Deployment / Use Cases
The HP Elite Mini 800 G9 is engineered for environments where space constraints cannot compromise computing performance. Its compact form factor and enterprise features make it suitable for diverse deployment scenarios across business, education, and specialized applications.
In office settings, these mini PCs work well as primary workstations for general productivity, accounting, CRM systems, and departmental servers. Their small size allows placement in tight spaces like under desks, behind monitors, or in secure enclosures while maintaining full desktop functionality. The vPro technology supports remote management for distributed office environments, retail locations, or branch offices where IT staff may not be physically present.
Digital Signage & Kiosk Systems
The compact dimensions and VESA mounting capability make this system ideal for digital signage, interactive kiosks, and information displays. The Intel UHD Graphics 770 supports multiple display outputs for creating video walls or multi-screen installations in retail, hospitality, or public information applications.
Healthcare & Point-of-Sale Environments
With its tool-less access for easy cleaning and maintenance, dust filter for improved reliability in particle-rich environments, and security slot for physical theft prevention, the Elite Mini 800 G9 suits clinical settings, pharmacy counters, and retail point-of-sale stations where equipment must be both accessible and secure.
Physical Profile
The Elite Mini 800 G9 measures 6.97 inches wide by 6.89 inches deep by 1.34 inches high (177 × 175 × 34 mm), with a weight of approximately 3.13 pounds (1420 grams). This compact form factor represents approximately 90% less volume than traditional desktop towers while maintaining full computing capability. The chassis features tool-less access panels that simplify component upgrades and maintenance without specialized tools.
The system's small footprint enables flexible placement options including vertical orientation with optional stands, VESA mounting behind displays, or discreet placement on desktops. A built-in dust filter helps maintain internal cleanliness in environments with higher particulate levels, while the security slot accommodates standard Kensington-style locks for theft prevention in public or shared spaces.
- Width
- 6.97" (177 mm)
- Depth
- 6.89" (175 mm)
- Height
- 1.34" (34 mm)
- Weight
- 3.13 lb (1420 g)
What's in the Box
This product ships with all essential components for immediate setup and operation.
Highlights
- Intel Core i7-12700 12th Gen processor with 12 cores and vPro technology
- 16 GB of DDR5 SDRAM for responsive multitasking and application performance
- Compact mini PC form factor (6.97" × 6.89" × 1.34") for space-constrained deployments
- Intel UHD Graphics 770 with shared DDR5 memory for display and media tasks
- Gigabit Ethernet connectivity via Intel I219-LM controller
- Six USB ports including five USB 3.2 Gen 2 and one front USB Type-C 20Gbps
- Tool-less chassis access for easy maintenance and upgrades
- Multiple environmental certifications including EPEAT Gold and CECP compliance
- Dust filter and security slot for enhanced reliability and physical security
- Universal power input (120-230V AC) for global deployment flexibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | HP Inc. |
| Manufacturer Part Number | 7J4P9EC#ABA |
| Brand Name | HP |
| Product Line | Elite Mini |
| Product Series | 800 G9 |
| Product Name | Elite Mini 800 G9 Desktop Computer |
| Product Type | Desktop Computer |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Type | Core i7 |
| Processor Generation | 12th Gen |
| Processor Model | i7-12700 |
| Processor Core | Dodeca-core (12 Core) |
| Processor Speed | 2.10 GHz |
| Maximum Turbo Speed | 4.90 GHz |
| vPro Technology | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | Q670 |
| Memory | |
| Standard Memory | 16 GB |
| Memory Technology | DDR5 SDRAM |
| Display & Graphics | |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | UHD Graphics 770 |
| Graphics Memory Technology | DDR5 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| LAN Model | I219-LM |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 3.2 Gen 2 Ports | 5 |
| USB Type-C (Front) | Yes |
| USB Type-C Detail | 1 x SuperSpeed USB Type-C® 20Gbps signaling rate |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Physical Characteristics | |
| Form Factor | Mini PC |
| Height | 1.34" (34 mm) |
| Width | 6.97" (177 mm) |
| Depth | 6.89" (175 mm) |
| Weight (Approximate) | 3.13 lb (1420 g) |
| Miscellaneous | |
| Package Contents | Elite Mini 800 G9 Desktop Computer Power Adapter |
| Features | Tool-less Access,Dust Filter,Security Slot |
| TCO Certified | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold) |
| Energy Efficiency Certification | China Energy Conservation Program (CECP) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
What processor does the HP Elite Mini 800 G9 use and what are its key features?
The Elite Mini 800 G9 is powered by an Intel Core i7-12700 processor from the 12th Generation family. This CPU features 12 total cores (8 performance cores and 4 efficiency cores) with a base clock speed of 2.10 GHz and maximum turbo frequency of 4.90 GHz. It includes Intel vPro technology, which provides enhanced security features, remote management capabilities, and hardware-based stability controls for business environments. The processor supports Intel's latest architectural improvements including better multi-threaded performance and power efficiency compared to previous generations.
How much memory is installed and what type of memory technology does it use?
This configuration comes with 16 GB of DDR5 SDRAM installed. DDR5 memory offers significant advantages over previous DDR4 technology, including higher bandwidth for faster data transfer, improved power efficiency through lower operating voltage, and enhanced reliability features. The 16 GB capacity provides ample memory for running multiple business applications simultaneously, handling large datasets, and supporting virtualized environments without performance degradation during heavy multitasking sessions.
What graphics capabilities does this mini PC offer for display and media tasks?
The system features Intel UHD Graphics 770 integrated graphics, which shares system DDR5 memory. This graphics solution supports multiple display outputs (specific port configuration may vary) and hardware acceleration for video decoding, making it suitable for office productivity, HD video playback, photo editing, and basic graphical applications. While not designed for intensive gaming or professional 3D rendering, the UHD Graphics 770 handles everyday graphical tasks efficiently and supports modern display technologies through its integrated architecture.
How compact is the Elite Mini 800 G9 and what are its physical dimensions?
The Elite Mini 800 G9 has an exceptionally compact form factor measuring 6.97 inches wide, 6.89 inches deep, and just 1.34 inches high (177 × 175 × 34 mm). It weighs approximately 3.13 pounds (1420 grams). This represents approximately 90% less volume than traditional desktop towers while maintaining full computing capability. The small footprint enables flexible placement options including VESA mounting behind displays, placement in tight desk spaces, or integration into kiosk and digital signage applications where space is limited.
What connectivity options are available on this desktop computer?
The system provides comprehensive connectivity with six total USB ports, including five USB 3.2 Gen 2 ports (10 Gbps) and one front-facing SuperSpeed USB Type-C port operating at 20 Gbps signaling rate. Network connectivity is handled by Gigabit Ethernet through an Intel I219-LM controller, providing reliable wired networking for office environments. The specific display output ports may vary by configuration, but typically include modern digital interfaces to support multiple monitors. The universal power input (120-230V AC) allows deployment in various geographical regions.
What business and environmental features does this HP desktop include?
The Elite Mini 800 G9 includes several business-oriented features including Intel vPro technology for enhanced security and manageability, tool-less chassis access for easy maintenance, a dust filter to protect internal components, and a security slot for physical theft prevention. Environmentally, it carries Electronic Product Environmental Assessment Tool Gold (EPEAT Gold) certification, China Energy Conservation Program (CECP) compliance, and meets WEEE and RoHS directives for reduced environmental impact. These certifications reflect HP's commitment to sustainable manufacturing and energy-efficient operation.
