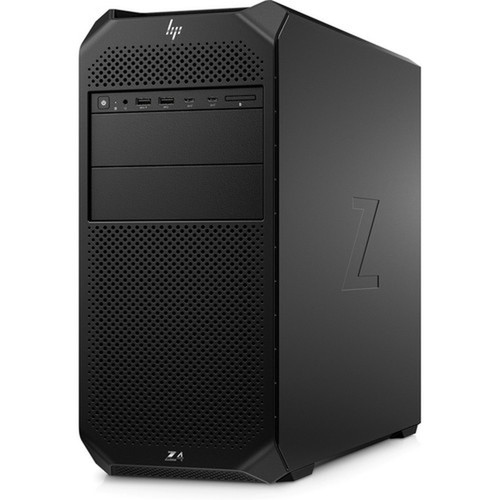

HP 805L8UT#ABC Z4 G5 Workstation - Intel Xeon w3-2435 3. 10 GHz - 16 GB DDR5 RAM - 512 GB NVMe SSD - Windows 11 Pro French - Tower - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The workstation's technical foundation centers on the Intel Xeon w3-2435 octa-core processor operating at 3.10 GHz. This CPU utilizes the Socket LGA-4677 interface and is paired with the Intel W790 chipset, providing a robust platform for compute-intensive applications.
Memory architecture employs DDR5 SDRAM technology with a 4.80 GHz clock speed, delivering efficient data transfer across eight available slots. The current configuration uses a single 16 GB module, leaving substantial room for expansion up to the 512 GB maximum capacity. Storage performance is accelerated through PCI Express NVMe 4.0 x4 interface technology, while the integrated Serial ATA/600 controller supports traditional storage devices with RAID 0, 1, 5, and 10 functionality.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
Professional-Grade Processing
The Intel Xeon w3-2435 processor with vPro technology combines high core count with enterprise security features and remote management capabilities, making it ideal for business-critical applications.
- Octa-core (8 Core) architecture
- Built-in hardware security
- Remote management support
Expandable Memory Architecture
Eight DDR5 memory slots support configurations up to 512 GB, allowing substantial memory expansion as workload requirements grow over time.
- DDR5 SDRAM technology
- 4.80 GHz clock speed
- Registered memory support
Comprehensive Connectivity
Thirteen USB ports including high-speed USB Type-C connections provide extensive peripheral support, while four Mini DisplayPort outputs enable multi-monitor configurations.
- 2 × USB Type-C 20Gbps
- 4 × Mini DisplayPort
- Gigabit Ethernet
Deployment / Use Cases
This workstation is engineered for professional environments where computational power and reliability are paramount. Its balanced configuration of processing capability, memory bandwidth, and storage performance makes it suitable for CAD/CAM applications, 3D modeling, financial analysis, scientific computing, and media production workflows.
The tower form factor provides excellent thermal management for sustained performance during extended compute sessions. With support for RAID configurations and extensive expansion capabilities, the system can be tailored to specific project requirements while maintaining data integrity through redundant storage setups.
Engineering & Design
Handle complex simulations, rendering tasks, and CAD modeling with the Xeon processor's computational power and dedicated graphics memory.
Data Analysis & Research
Process large datasets efficiently using the high-speed DDR5 memory architecture and rapid NVMe storage access.
Localization and Operating System
The workstation ships with Windows 11 Pro pre-installed in French language localization. This includes the complete French interface, system messages, and documentation, ensuring immediate usability in French-speaking work environments.
Keyboard localization is also configured for French layouts, providing proper key mapping and character support. The operating system includes all professional features of Windows 11 Pro, offering enhanced security, management tools, and productivity applications tailored for business use.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The tower chassis measures 15.20 inches in height, 6.65 inches in width, and 17.50 inches in depth, providing a substantial footprint for component cooling and expansion. Weighing approximately 23.15 pounds, the workstation maintains a professional black finish suitable for office environments.
The tower form factor offers excellent internal accessibility for maintenance and upgrades, with ample space for additional storage drives, expansion cards, and cooling solutions. The design prioritizes airflow and component placement to ensure stable operation during demanding computational tasks.
- Width
- 160 GB/s
- Depth
- 17.50" (444.50 mm)
- Height
- 15.20" (386.10 mm)
- Weight
- 23.15 lb (10500 g)
What's in the Box
The workstation ships complete with all essential components for immediate setup and operation.
Package contents include Z4 G5 Workstation PC Keyboard Mouse, Z4 G5 Workstation PC. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Intel Xeon w3-2435 octa-core processor with vPro technology
- 16 GB DDR5 SDRAM running at 4.80 GHz
- 512 GB PCI Express NVMe 4.0 x4 solid state drive
- Windows 11 Pro operating system with French localization
- Tower form factor with professional black finish
- Eight memory slots supporting up to 512 GB expansion
- Dedicated 4 GB graphics memory with 160 GB/s bandwidth
- Thirteen USB ports including two USB Type-C 20Gbps
- Four Mini DisplayPort outputs for multi-monitor setups
- Gigabit Ethernet connectivity for network-intensive applications
Specifications
| Specifications | |
|---|---|
| Manufacturer | HP Inc. |
| Manufacturer Part Number | 805L8UT#ABC |
| Brand Name | HP |
| Product Series | Z4 G5 |
| Product Name | Z4 G5 Workstation PC |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Xeon |
| Processor Model | w3-2435 |
| Processor Core | Octa-core (8 Core) |
| Processor Speed | 3.10 GHz |
| Processor Socket | Socket LGA-4677 |
| vPro Technology | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | W790 |
| Memory | |
| Standard Memory | 16 GB |
| Maximum Memory Supported | 512 GB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 8 |
| Intel Optane Memory Ready | Yes |
| Memory Clock Speed | 4.80 GHz |
| Memory Configuration | 1 x 16GB |
| Error Checking | Non-ECC |
| Signal Processing | Registered |
| Storage | |
| Total Solid State Drive Capacity | 512 GB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Display & Graphics | |
| Graphics Memory Capacity | 4 GB |
| Graphics Memory Accessibility | Dedicated |
| Maximum Memory Bandwidth | 160 GB/s |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Input Devices | |
| Keyboard Localization | French |
| Interfaces/Ports | |
| Total Number of USB Ports | 13 |
| Number of Onboard USB 2.0 Ports | 3 |
| Number of Onboard USB 3.0 Ports | 1 |
| USB Type-C | Yes |
| USB Type-C Detail | 2 SuperSpeed USB Type-C® 20Gbps signaling rate (USB Power Delivery) |
| Mini DisplayPort | Yes |
| Number of Mini DisplayPort | 4 |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Language | French |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Tower |
| Height | 15.20" (386.10 mm) |
| Width | 6.65" (168.90 mm) |
| Depth | 17.50" (444.50 mm) |
| Weight (Approximate) | 23.15 lb (10500 g) |
| Miscellaneous | |
| Package Contents | Z4 G5 Workstation PC Keyboard Mouse |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | China Energy Conservation Program (CECP) |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| TCO Certified | Yes |
User Manual
FAQ
What processor does this HP workstation use?
This HP Z4 G5 Workstation features the Intel Xeon w3-2435 processor. This is an octa-core (8 core) CPU operating at 3.10 GHz with Socket LGA-4677 compatibility. The processor includes Intel vPro technology, which provides enhanced security features and remote management capabilities for business environments.
How much memory is installed and what type is it?
The workstation comes with 16 GB of DDR5 SDRAM installed. This memory operates at 4.80 GHz and is configured as a single 16 GB module. The system has eight total memory slots, allowing expansion up to 512 GB maximum capacity. The memory architecture supports registered memory modules for enhanced stability in workstation applications.
What storage configuration does this workstation have?
Storage is provided by a 512 GB solid state drive using PCI Express NVMe 4.0 x4 interface technology. This delivers high-speed data transfer rates for rapid application loading and file access. The system also includes a Serial ATA/600 controller that supports RAID 0, 1, 5, and 10 configurations for data redundancy and performance optimization.
What operating system is pre-installed?
The workstation ships with Windows 11 Pro pre-installed with French language localization. This includes the complete French interface, system messages, and documentation. The operating system provides professional features such as enhanced security controls, remote desktop capabilities, and business management tools suitable for enterprise environments.
What connectivity options are available?
Connectivity includes 13 total USB ports: three USB 2.0 ports, one USB 3.0 port, and two SuperSpeed USB Type-C ports with 20Gbps signaling rate and USB Power Delivery. The system also features four Mini DisplayPort outputs for multi-monitor configurations and Gigabit Ethernet for network connectivity. Keyboard localization is configured for French layouts.
What are the physical dimensions and form factor?
The workstation uses a tower form factor measuring 15.20 inches in height, 6.65 inches in width, and 17.50 inches in depth. It weighs approximately 23.15 pounds and features a professional black finish. The tower design provides excellent internal space for component cooling and expansion, making it suitable for environments requiring sustained computational performance.
