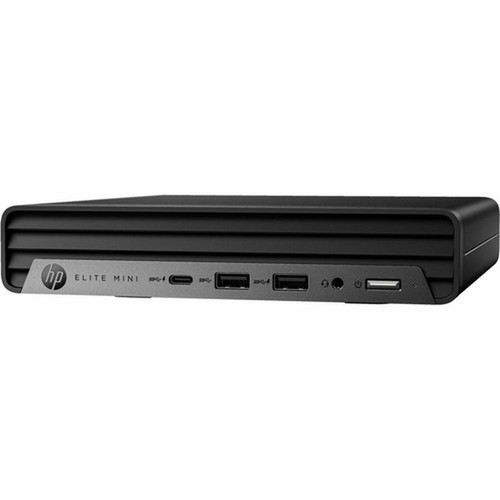

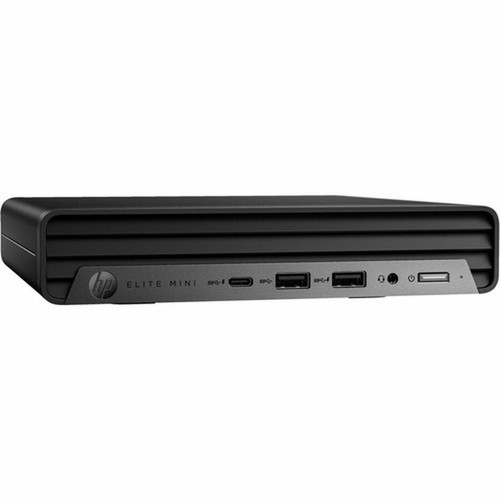

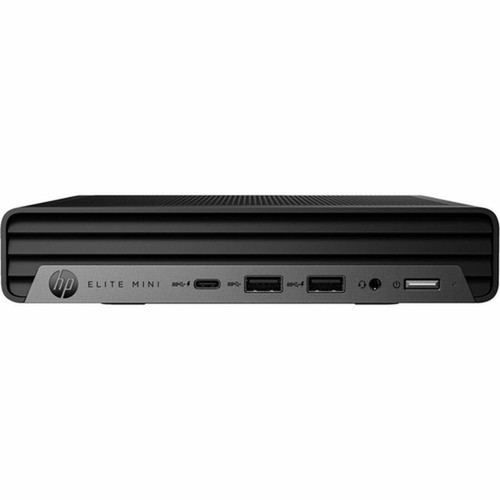

HP 893L8EC#ABA Elite Mini 800 G9 Desktop Computer - Intel Core i5-12600T vPro - 16GB DDR5 RAM - 256GB PCIe NVMe SSD - Mini PC
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the Elite Mini 800 G9 is Intel's Q670 chipset paired with a hexa-core Core i5-12600T processor. This 12th Gen CPU operates at a 2.10 GHz base frequency with Intel Turbo Boost Technology reaching up to 4.60 GHz. The integrated Intel UHD Graphics 770 handles display output and basic visual tasks using shared system memory.
Storage is provided by a 256 GB PCI Express NVMe solid-state drive in the M.2 form factor, delivering fast boot times and application loading. The system includes 16 GB of DDR5 SDRAM operating at standard speeds for the platform. Networking is handled by an Intel I219-LM Gigabit Ethernet controller for reliable wired connectivity.
Relevant factors for this section include Processor Manufacturer, Processor Type, Processor Generation, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Elite Mini 800 G9 combines business-grade features with a space-saving design that doesn't compromise on connectivity or management capabilities.
Compact Business Desktop
The Mini PC form factor occupies minimal desk space while providing full desktop functionality. Measuring just 1.34 inches tall, it fits easily in constrained environments or can be mounted behind displays using VESA-compatible brackets.
- Space-saving design
- VESA mount compatible
- Lightweight at 3.13 lb
Enterprise Management Features
Intel vPro technology enables remote management capabilities for IT departments, while tool-less access simplifies maintenance and upgrades. The security slot provides physical theft protection for the chassis.
- Intel vPro for remote management
- Tool-less chassis access
- Kensington lock slot
Modern Connectivity
Six USB ports include five USB 3.2 Gen 2 ports and one USB 3.2 Gen 2x2 Type-C port for high-speed data transfer. Gigabit Ethernet ensures reliable network connectivity for business applications.
- USB 3.2 Gen 2x2 Type-C
- Multiple high-speed USB ports
- Dedicated Gigabit Ethernet
Deployment / Use Cases
The HP Elite Mini 800 G9 is designed for business environments where space efficiency and reliable performance are equally important. Its compact size makes it suitable for reception areas, call centers, shared workspaces, and point-of-sale installations.
With Intel vPro technology and tool-less access, this system simplifies IT management in distributed office environments. The energy-efficient design and environmental certifications make it appropriate for organizations with sustainability initiatives.
Office Productivity Workstation
Ideal for general office applications, email, web browsing, and document processing. The compact size fits easily on crowded desks or in shared workspace configurations.
Digital Signage & Kiosk Platform
The small footprint and VESA mounting capability make this system suitable for digital signage, information kiosks, or interactive displays in retail and public spaces.
Physical Profile
The Elite Mini 800 G9 measures 6.97 inches wide by 6.89 inches deep by 1.34 inches tall (177 × 175 × 34 mm), with a weight of approximately 3.13 pounds (1.42 kg). The compact dimensions allow placement in spaces where traditional desktop towers won't fit. The chassis includes a dust filter to maintain internal cleanliness and features tool-less access for simplified maintenance.
- Width
- 6.97" (177 mm)
- Depth
- 6.89" (175 mm)
- Height
- 1.34" (34 mm)
- Weight
- 3.13 lb (1420 g)
What's in the Box
This configuration includes the complete system with all standard components for immediate deployment.
Highlights
- Intel Core i5-12600T processor with vPro technology for business management
- 16 GB DDR5 memory for responsive multitasking and application performance
- 256 GB PCI Express NVMe SSD for fast boot times and application loading
- Compact Mini PC form factor saves valuable desk and floor space
- Intel UHD Graphics 770 handles display output and basic visual tasks
- Gigabit Ethernet provides reliable wired network connectivity
- Tool-less chassis access simplifies maintenance and upgrades
- TCO Certified and meets multiple environmental compliance standards
Specifications
| Specifications | |
|---|---|
| Manufacturer | HP Inc. |
| Manufacturer Part Number | 893L8EC#ABA |
| Brand Name | HP |
| Product Line | Elite Mini |
| Product Series | 800 G9 |
| Product Name | Elite Mini 800 G9 Desktop PC |
| Product Type | Desktop Computer |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Type | Core i5 |
| Processor Generation | 12th Gen |
| Processor Model | i5-12600T |
| Processor Core | Hexa-core (6 Core) |
| Processor Speed | 2.10 GHz |
| Maximum Turbo Speed | 4.60 GHz |
| vPro Technology | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | Q670 |
| Memory | |
| Standard Memory | 16 GB |
| Memory Technology | DDR5 SDRAM |
| Storage | |
| Total Solid State Drive Capacity | 256 GB |
| Solid State Drive Interface | PCI Express NVMe |
| SSD Form Factor | M.2 |
| Display & Graphics | |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | UHD Graphics 770 |
| Graphics Memory Technology | DDR5 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| LAN Model | I219-LM |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 3.2 Gen 2 Ports | 5 |
| Number of USB 3.2 Gen 2x2 Type-C Ports | 1 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Physical Characteristics | |
| Form Factor | Mini PC |
| Height | 1.34" (34 mm) |
| Width | 6.97" (177 mm) |
| Depth | 6.89" (175 mm) |
| Weight (Approximate) | 3.13 lb (1420 g) |
| Miscellaneous | |
| Package Contents | Elite Mini 800 G9 Desktop PC Power Adapter |
| Features | Tool-less Access,Dust Filter,Security Slot |
| TCO Certified | Yes |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | China Energy Conservation Program (CECP) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
User Manual
FAQ
What processor does the HP Elite Mini 800 G9 use?
This system features an Intel Core i5-12600T processor from the 12th Generation family. It's a hexa-core (6-core) CPU with a base clock speed of 2.10 GHz that can turbo boost up to 4.60 GHz. The processor includes Intel vPro technology for enhanced business management capabilities.
How much memory and storage does this desktop include?
The HP Elite Mini 800 G9 comes with 16 GB of DDR5 SDRAM installed, providing ample memory for business applications and multitasking. Storage is handled by a 256 GB PCI Express NVMe solid-state drive in the M.2 form factor, offering fast data access and improved system responsiveness compared to traditional hard drives.
What graphics capabilities does this system have?
Graphics are handled by the integrated Intel UHD Graphics 770, which shares system memory. This solution supports display output for productivity applications, web browsing, and basic multimedia tasks. It's not designed for gaming or professional graphics work but is sufficient for typical business computing needs.
How many USB ports does the Elite Mini 800 G9 offer?
The system includes six USB ports total: five USB 3.2 Gen 2 ports and one USB 3.2 Gen 2x2 Type-C port. These high-speed connections support fast data transfer for peripherals and external storage devices. The Type-C port offers additional versatility for modern accessories and displays.
What are the physical dimensions of this Mini PC?
The HP Elite Mini 800 G9 measures 6.97 inches wide by 6.89 inches deep by 1.34 inches tall (177 × 175 × 34 mm). It weighs approximately 3.13 pounds (1.42 kg). This compact form factor makes it suitable for space-constrained environments and allows for VESA mounting behind displays if desired.
What management features does this desktop include?
The system features Intel vPro technology, which enables remote management capabilities for IT departments. It also includes tool-less access to the chassis interior for easier maintenance and upgrades. A security slot allows for physical theft prevention using a Kensington-style lock.
