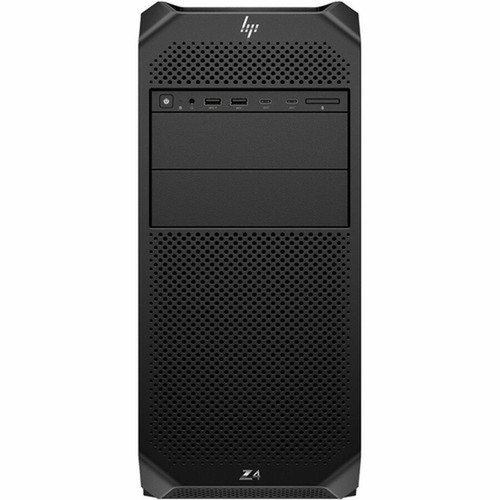

HP 8H8K9UA#ABA Z4 G5 Workstation - Intel Xeon W w5-2465 x 16-Core - 64 GB DDR5 - 512 GB NVMe SSD - Windows 11 Pro - 4 GB Graphics - Tower - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the Z4 G5 is the Intel Xeon W w5-2465X processor, a hexadeca-core CPU operating at 3.10 GHz on the Socket LGA-4677 platform. This processor is paired with the Intel W790 chipset, providing a stable foundation for workstation-class workloads and supporting advanced features like AI acceleration. The memory subsystem utilizes 64 GB of DDR5 SDRAM configured across four 16 GB modules running at 4.80 GHz, with ECC and Registered signal processing to maintain data integrity under heavy loads.
Storage performance is driven by a 512 GB PCI Express NVMe 4.0 x4 solid-state drive, offering exceptional read/write speeds for operating systems, applications, and project files. The system supports RAID configurations (0, 1, 5, 10) via Serial ATA/600 and NVMe controllers, enabling data redundancy or performance optimization based on user requirements. Graphics output is handled by a dedicated 4 GB card with 80 GB/s memory bandwidth, sufficient for professional 2D/3D applications and multi-monitor setups through three Mini DisplayPort connectors.
Key Product Advantages
The Z4 G5 Workstation distinguishes itself through its balanced combination of enterprise-grade components, expandable tower design, and professional software environment. Unlike standard desktops, it incorporates registered ECC memory that automatically detects and corrects data corruption, a critical feature for scientific computing and financial modeling where accuracy is non-negotiable.
Workstation-Grade Reliability
Built with components validated for 24/7 operation, including a robust 775 W power supply with wide voltage input (120/230 V AC) and comprehensive thermal management via air cooling.
- Xeon W processor with advanced security features
- Registered ECC memory for data integrity
- Stable power delivery for consistent performance
Professional Connectivity Suite
Offers extensive peripheral support with 14 USB ports spanning multiple generations, plus Gigabit Ethernet for fast network transfers and server backups.
- 8 USB 3.1 Gen 1 ports for high-speed devices
- 3 Mini DisplayPort outputs for multi-monitor setups
- Gigabit Ethernet for large file transfers
Deployment / Use Cases
This workstation is ideally suited for engineering firms, architectural studios, research laboratories, and media production houses where computational intensity and data reliability are paramount. Its configuration supports simultaneous operation of resource-heavy applications like CAD software, finite element analysis tools, video editing suites, and virtual machine environments without performance degradation.
The tower form factor provides ample internal space for additional storage drives, expansion cards, or memory upgrades, making it a long-term investment that can evolve with project demands. IT departments will appreciate the Windows 11 Pro operating system for its enterprise management tools, security enhancements, and compatibility with professional software ecosystems. The system's environmental certifications (EPEAT Gold, TCO Certified) also make it appropriate for organizations with strict sustainability procurement policies.
Engineering & Design
Handles complex 3D modeling, simulation, and rendering tasks with the multi-core Xeon processor and dedicated graphics memory.
Scientific Computing
Supports data-intensive research applications through ECC memory protection and high-speed NVMe storage for large datasets.
Localization and Operating System
The workstation ships with Windows 11 Pro pre-installed, providing a professional-grade operating system optimized for productivity and security. Windows 11 Pro includes BitLocker device encryption, remote desktop access, and enhanced group policy management—features essential for business environments where data protection and administrative control are priorities.
While the system does not specify keyboard localization in product details, it is configured for the North American market with standard input compatibility. The operating system platform is Windows, ensuring broad software support for commercial, engineering, and creative applications commonly used in workstation deployments.
Relevant factors for this section include AI-powered, Number of Processors Supported, Number of Processors Installed, Processor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
Housed in a black tower chassis measuring 15.20" high, 6.65" wide, and 17.50" deep, the Z4 G5 presents a professional appearance while maintaining a relatively compact footprint for a workstation. The tower design prioritizes internal accessibility, with tool-less entry points facilitating easy upgrades to memory, storage, or expansion cards. The system weighs approximately 23.15 lb, making it manageable for placement under desks or on sturdy work surfaces.
The black finish and clean lines ensure visual compatibility with office environments, while the air cooling system maintains optimal operating temperatures during extended compute sessions. The form factor supports standard VESA mounting options if desk space conservation is required, though the included configuration is designed for standalone use.
- Width
- 80 GB/s
- Depth
- 17.50" (444.50 mm)
- Height
- 15.20" (386.10 mm)
- Weight
- 23.15 lb (10500 g)
What's in the Box
The workstation arrives ready for setup with all essential components included for immediate operation.
Package contents include Z4 G5 Workstation PC Mouse Keyboard, Z4 G5 Workstation PC. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Intel Xeon W w5-2465X processor with 16 cores and 32 threads for demanding multitasking
- 64 GB of DDR5 ECC Registered memory ensures data integrity and high-speed performance
- 512 GB PCI Express NVMe 4.0 SSD delivers fast boot times and application loading
- Windows 11 Pro operating system with enterprise security and management features
- Dedicated 4 GB graphics card with 80 GB/s bandwidth for professional visualization
- 14 USB ports provide extensive connectivity for peripherals and storage devices
- Tower form factor allows easy upgrades and expansion for future needs
- 775 W power supply supports stable operation under full load conditions
- Gigabit Ethernet enables fast network transfers and server connectivity
- Environmental certifications include EPEAT Gold, TCO Certified, and RoHS compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | HP Inc. |
| Manufacturer Part Number | 8H8K9UA#ABA |
| Brand Name | HP |
| Product Series | Z4 G5 |
| Product Name | Z4 G5 Workstation PC |
| Product Type | Workstation |
| Technical Information | |
| AI-powered | Yes |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Xeon W |
| Processor Model | w5-2465X |
| Processor Core | Hexadeca-core (16 Core) |
| Processor Threads | 32 |
| Processor Speed | 3.10 GHz |
| Processor Socket | Socket LGA-4677 |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | W790 |
| Memory | |
| Standard Memory | 64 GB |
| Maximum Memory Supported | 512 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Clock Speed | 4.80 GHz |
| Memory Configuration | 4 x 16 GB |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 512 GB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | Serial ATA/600,NVMe |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Display & Graphics | |
| Graphics Memory Capacity | 4 GB |
| Graphics Memory Accessibility | Dedicated |
| Maximum Memory Bandwidth | 80 GB/s |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 14 |
| Number of Onboard USB 2.0 Ports | 3 |
| Number of USB 3.1 Gen 1 Ports | 8 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Mini DisplayPort | Yes |
| Number of Mini DisplayPort | 3 |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Maximum Power Supply Wattage | 775 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Cooler Type | Air Cooler |
| Form Factor | Tower |
| Height | 15.20" (386.10 mm) |
| Width | 6.65" (168.90 mm) |
| Depth | 17.50" (444.50 mm) |
| Weight (Approximate) | 23.15 lb (10500 g) |
| Miscellaneous | |
| Package Contents | Z4 G5 Workstation PC Mouse Keyboard |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold),Electronic Product Environmental Assessment Tool Climate+ (EPEAT Climate+) |
| Energy Efficiency Certification | China Energy Conservation Program (CECP) |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| TCO Certified | Yes |
User Manual
FAQ
What type of processor does this HP workstation use?
This workstation features an Intel Xeon W w5-2465X processor, which is a hexadeca-core (16-core) CPU with 32 threads and a base clock speed of 3.10 GHz. It uses the Socket LGA-4677 platform and includes AI-powered capabilities, making it suitable for compute-intensive professional applications like engineering simulations, data analysis, and content creation.
How much memory is installed and what type is it?
The system comes with 64 GB of DDR5 SDRAM installed across four 16 GB modules. This memory operates at 4.80 GHz and features ECC (Error-Correcting Code) and Registered signal processing, which helps prevent data corruption and ensures stability during prolonged, memory-intensive workloads common in workstation environments.
What storage configuration does this workstation have?
Storage is provided by a 512 GB solid-state drive using the PCI Express NVMe 4.0 x4 interface for high sequential read/write speeds. The system supports RAID configurations (levels 0, 1, 5, 10) via Serial ATA/600 and NVMe controllers, allowing users to set up data redundancy or performance-optimized arrays with additional drives.
What graphics capabilities are included?
Graphics are handled by a dedicated card with 4 GB of dedicated memory and a maximum memory bandwidth of 80 GB/s. The workstation includes three Mini DisplayPort outputs, supporting multi-monitor setups for applications that benefit from extended screen real estate, such as CAD software, financial trading platforms, or video editing timelines.
What operating system is pre-installed?
Windows 11 Pro is pre-installed, offering a full-featured professional operating system with enhanced security tools like BitLocker encryption, remote desktop functionality, and advanced group policy management. This OS version is optimized for business and technical workflows, providing compatibility with a wide range of professional software applications.
What are the physical dimensions and form factor?
The workstation uses a tower form factor with dimensions of 15.20" high, 6.65" wide, and 17.50" deep, weighing approximately 23.15 lb. The black tower chassis is designed for easy internal access to components, supporting future upgrades to memory, storage, or expansion cards while maintaining a professional appearance suitable for office or lab environments.
