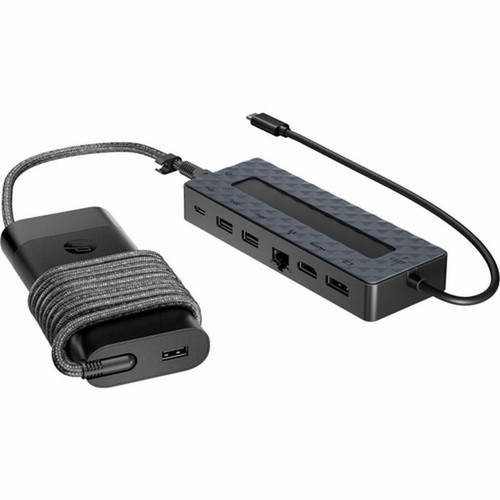

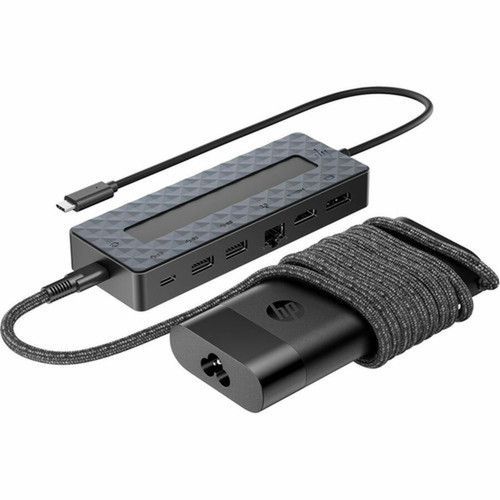

HP 9H0H9AA#ABA Universal USB-C Hub and Laptop Charger Combo - 100W Power Delivery - 4K Dual Display - Ethernet - 4 Ports
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At its core, the hub utilizes a USB Type-C host interface to deliver robust connectivity options. It supports dual displays at 4K UHD resolution (3840 x 2160) through its HDMI and DisplayPort 1.2 outputs, enabling crisp visuals for productivity or multimedia tasks. The integrated Gigabit Ethernet port provides reliable wired network access, while management features like PXE Boot, Wake-on-LAN, and MAC Address Pass-through offer advanced control for IT deployments.
Power delivery is a key strength, with the hub supplying up to 65W via USB Power Delivery to charge compatible laptops, tablets, and other devices. The included 100W AC power adapter ensures sufficient overhead for simultaneous high-demand operations. Four USB ports (two USB-C and two USB-A) accommodate peripherals such as external storage, keyboards, and mice, with one USB-C port operating at 5Gbps signaling rates for fast data transfers.
Key Product Advantages
This hub stands out by combining essential docking functions with high-power charging, reducing cable clutter and simplifying desk setups. Its ability to drive dual 4K displays enhances multitasking and visual clarity, while the integrated Ethernet ensures low-latency network connections critical for video conferencing and large file transfers.
Universal Compatibility
Works seamlessly with Windows 10, Windows 11, macOS, and ChromeOS, supporting a wide range of devices from monitors and notebooks to tablets and desktop PCs.
- Cross-Platform Support
- Broad Device Coverage
Compact and Portable Design
With dimensions of 5.91" x 2.17" x 0.85" and a weight of 4 oz, the hub is highly portable, making it easy to carry between home and office or on business trips.
- Lightweight Build
- Travel-Friendly
Deployment / Use Cases
The HP Universal USB-C Hub is ideal for professionals who require a reliable docking station for hybrid work environments. It serves as a central hub for laptops, enabling quick connectivity to external monitors, wired networks, and peripherals with a single cable. This makes it perfect for hot-desking setups, conference rooms, or home offices where users switch between different devices frequently.
In corporate IT deployments, the hub's management features like PXE Boot and Wake-on-LAN allow for streamlined device provisioning and remote maintenance. Educational institutions and creative studios can leverage its dual 4K output for detailed design work or collaborative presentations, while its charging capability ensures devices remain powered throughout the day.
Remote Work Solution
Provides a consistent docking experience for remote employees, reducing setup time and improving productivity with plug-and-play connectivity to monitors, Ethernet, and USB devices.
IT-Managed Workspaces
Supports enterprise management tools for efficient deployment and maintenance, ideal for organizations with standardized IT environments.
Physical Profile
The hub features a sleek black enclosure measuring 5.91 inches in width, 2.17 inches in depth, and 0.85 inches in height, with a lightweight design at approximately 4 ounces. Its compact footprint minimizes desk space usage, while the durable construction ensures longevity in daily use. The wired connectivity design eliminates wireless interference, providing stable performance for critical business applications.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 0.85" (21.59 mm), 5.91" (150.11 mm), 2.17" (55.12 mm), 4 oz (113.40 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 5.91" (150.11 mm)
- Depth
- 2.17" (55.12 mm)
- Height
- 0.85" (21.59 mm)
- Weight
- 4 oz (113.40 g)
What's in the Box
The package includes all necessary components for immediate setup and use:
Highlights
- Supports dual 4K UHD displays at 3840 x 2160 resolution
- Delivers up to 65W USB Power Delivery for charging laptops and devices
- Includes Gigabit Ethernet port for reliable wired networking
- Features 4 USB ports (2 USB-C, 2 USB-A) for peripheral connectivity
- Compatible with Windows 10, Windows 11, macOS, and ChromeOS
- Compact and portable design with black finish
- Management features: PXE Boot, Wake-on-LAN, MAC Address Pass-through
- Backed by a 1-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | HP Inc. |
| Manufacturer Part Number | 9H0H9AA#ABA |
| Brand Name | HP |
| Product Line | Universal |
| Product Name | Universal USB-C Hub and Laptop Charger Combo |
| Product Type | Docking Station |
| Technical Information | |
| Connectivity Technology | Wired |
| Charging Capability | Yes |
| Number of Displays Supported | 2 |
| Supported Resolutions | 3840 x 2160 |
| Screen Mode Supported | 4K,4K UHD |
| Management Features | PXE Boot,Wake-on-LAN,MAC Address Pass-through |
| Device Supported | Monitor,Tablet,Notebook,Desktop PC |
| Network & Communication | |
| Ethernet Technology | Ethernet |
| Interfaces/Ports | |
| Host Interface | USB Type C |
| Total Number of USB Ports | 4 |
| Number of USB Type-C Ports | 2 |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB Type-C® 5Gbps signaling rate, 1 x USB Type-C® pass-through |
| Number of USB Type-A Ports | 2 |
| USB Type-A | Yes |
| Number of RJ-45 Ports | 1 |
| Network (RJ-45) | Yes |
| Number of DisplayPorts | 1 |
| DisplayPort | Yes |
| DisplayPort Version | 1.2 |
| Number of HDMI Ports | 1 |
| HDMI | Yes |
| USB Power Delivery | 65W |
| Software | |
| Operating System Supported | Windows 10,Windows 11,macOS,ChromeOS |
| Power Description | |
| Maximum Power Supply Wattage | 100 W |
| Physical Characteristics | |
| Product Color | Black |
| Height | 0.85" (21.59 mm) |
| Width | 5.91" (150.11 mm) |
| Depth | 2.17" (55.12 mm) |
| Weight (Approximate) | 4 oz (113.40 g) |
| Miscellaneous | |
| Package Contents | Universal USB-C Hub and Laptop Charger Combo AC Power Cord Quick Setup Poster Warranty Card AC Power Adapter |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What devices are compatible with this USB-C hub?
The HP Universal USB-C Hub is compatible with a wide range of devices, including monitors, tablets, notebooks, and desktop PCs. It supports operating systems such as Windows 10, Windows 11, macOS, and ChromeOS, making it versatile for mixed-environment use in offices, homes, or educational settings.
How many displays can this hub support and at what resolution?
This hub supports dual displays simultaneously, with a maximum resolution of 3840 x 2160 (4K UHD) per display. It uses HDMI and DisplayPort 1.2 outputs to deliver crisp visuals, ideal for multitasking, video editing, or presentations that require high-definition screen real estate.
What is the power delivery capability of this hub?
The hub provides up to 65W of USB Power Delivery, which is sufficient to charge most laptops, tablets, and other compatible devices. It includes a 100W maximum power supply adapter to ensure stable performance even under high load, reducing the need for separate chargers and simplifying cable management.
Does this hub include an Ethernet port?
Yes, it features one Gigabit Ethernet (RJ-45) port, offering reliable wired network connectivity. This is particularly useful for environments where Wi-Fi is unstable or for applications requiring low latency, such as video conferencing, large file transfers, or online gaming.
What management features are available for IT deployment?
The hub includes advanced management features like PXE Boot for network-based operating system installation, Wake-on-LAN for remote power management, and MAC Address Pass-through for consistent network identification. These tools help IT administrators streamline device provisioning, maintenance, and security in corporate or educational settings.
What is included in the package with this hub?
The package contains the Universal USB-C Hub and Laptop Charger Combo unit, an AC power adapter, an AC power cord, a quick setup poster for easy installation, and a warranty card. All components are designed for immediate use, ensuring a complete out-of-the-box experience without additional purchases.
