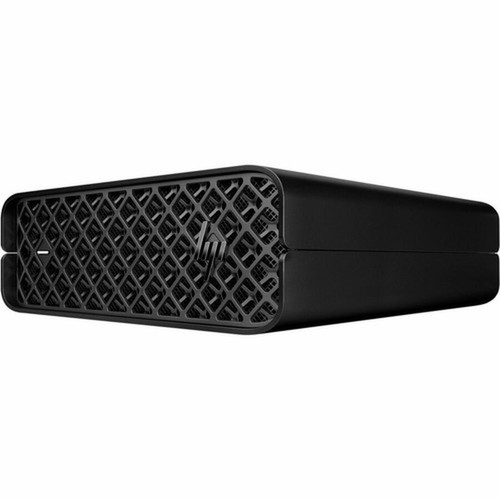

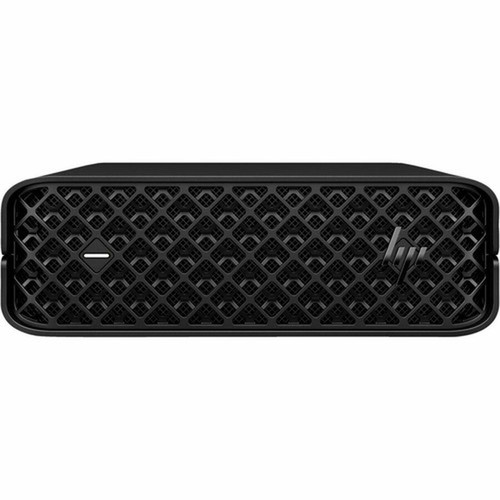

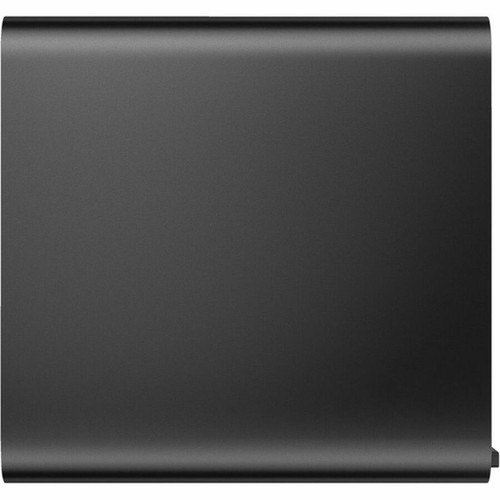

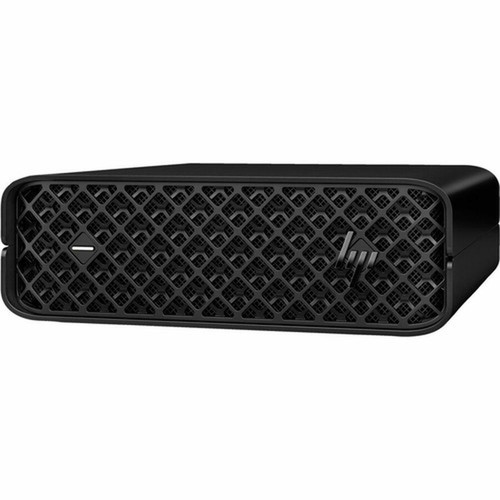

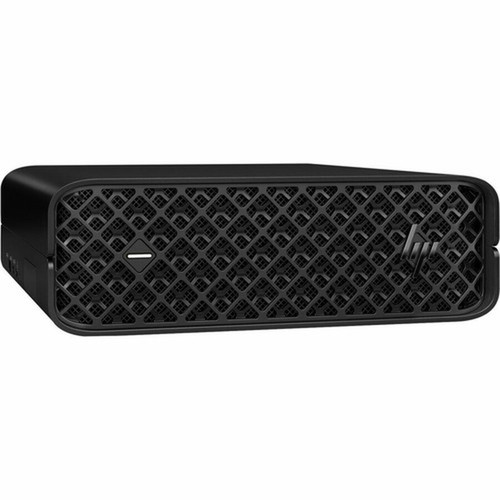

HP 9J2N9EC#ABA Z2 Mini G9 Workstation - Intel Core i7-12700 12th Gen - 32GB DDR5512GB NVMe SSD - Mini PC Form Factor
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the Z2 Mini G9 is the Intel Core i7-12700 processor, featuring a hybrid architecture with 12 cores (8 Performance-cores and 4 Efficient-cores) and 20 threads. Operating at a base frequency of 2.10 GHz, this CPU provides substantial multi-threaded performance for rendering, simulation, and computational tasks. The inclusion of Intel vPro technology enhances security and remote manageability for IT deployments.
Memory performance is driven by 32 GB of DDR5 SDRAM, which offers higher bandwidth and improved power efficiency compared to previous generations. The system supports expansion up to 64 GB for future upgrades. Storage is handled by a 512 GB PCI Express NVMe solid-state drive, delivering fast boot times, rapid application loading, and quick file transfers. The NVMe controller supports RAID 0 and RAID 1 configurations for performance or redundancy.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Z2 Mini G9 combines workstation power with space-saving design, making it ideal for environments where desk real estate is limited but performance cannot be compromised. Its professional feature set ensures reliability and manageability for business-critical operations.
Compact Professional Workstation
The mini PC form factor (2.70" × 8.30" × 8.60") allows deployment under monitors, on walls, or in tight spaces without sacrificing the capabilities expected from a full-sized workstation.
- Saves desk space
- Flexible mounting options
- Full workstation performance
Modern Connectivity
Equipped with six USB ports, including two USB-C 20Gbps ports that support device charging up to 5V/3A, along with DisplayPort and Gigabit Ethernet for comprehensive peripheral and network integration.
- USB-C with charging
- High-speed data transfer
- DisplayPort for high-res monitors
Enterprise Management & Security
Intel vPro technology provides hardware-enhanced security features and remote management capabilities, allowing IT teams to maintain, update, and secure systems efficiently across the organization.
- Hardware-based security
- Remote manageability
- IT deployment friendly
Deployment / Use Cases
This workstation is suited for professional environments where computational power, data integrity, and space efficiency are paramount. Its balanced configuration supports a wide range of demanding applications.
In engineering and architectural firms, the Z2 Mini G9 can run CAD, CAM, and finite element analysis software, handling complex models and simulations. For financial analysts and data scientists, the multi-core processor and ample RAM accelerate quantitative analysis, database queries, and machine learning workflows. Media production studios will appreciate the fast storage for editing high-resolution video and graphics, while the small size keeps editing bays uncluttered.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The Z2 Mini G9 measures 2.70 inches in height, 8.30 inches in width, and 8.60 inches in depth, making it one of the smallest true workstations available. This compact design is achieved without compromising thermal performance or expansion capabilities. The unit can be positioned vertically or horizontally, and its minimal footprint allows for placement in environments where traditional towers are impractical. The build emphasizes durability and efficient cooling to maintain performance under sustained loads.
- Width
- 8.30" (210.82 mm)
- Depth
- 8.60" (218.44 mm)
- Height
- 2.70" (68.58 mm)
What's in the Box
The workstation ships with all necessary components to begin operation immediately upon setup.
Package contents include Z2 Mini G9 Workstation Desktop PC Power Adapter, Z2 Mini G9 Workstation Desktop PC. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Intel Core i7-12700 12th Gen processor with 12 cores and 20 threads
- 32 GB of DDR5 SDRAM for smooth multitasking and application performance
- 512 GB PCI Express NVMe SSD for fast boot times and data access
- Mini PC form factor (2.70" × 8.30" × 8.60") saves valuable desk space
- Intel vPro technology enhances security and remote manageability
- Includes two USB-C 20Gbps ports with device charging support
- Gigabit Ethernet and DisplayPort for connectivity and display output
- Supports RAID 0 and RAID 1 configurations for performance or redundancy
- Energy Star certified and compliant with RoHS and WEEE directives
- TCO Certified for environmental and social responsibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | HP Inc. |
| Manufacturer Part Number | 9J2N9EC#ABA |
| Brand Name | HP |
| Product Series | Z2 Mini G9 |
| Product Name | Z2 Mini G9 Workstation Desktop PC |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Core i7 |
| Processor Generation | 12th Gen |
| Processor Model | i7-12700 |
| Processor Core | Dodeca-core (12 Core) |
| Processor Threads | 20 |
| Processor Speed | 2.10 GHz |
| Processor Socket | Socket LGA-1700 |
| vPro Technology | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | W680 |
| Memory | |
| Standard Memory | 32 GB |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR5 SDRAM |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 512 GB |
| Solid State Drive Interface | PCI Express NVMe |
| Controllers | |
| Controller Type | NVMe |
| RAID Supported | Yes |
| RAID Levels | 0, 1 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| USB Type-C | Yes |
| USB Type-C Detail | 2 USB-C 20Gbps port (charging supported up to 5V/3A) |
| DisplayPort | Yes |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Physical Characteristics | |
| Form Factor | Mini PC |
| Height | 2.70" (68.58 mm) |
| Width | 8.30" (210.82 mm) |
| Depth | 8.60" (218.44 mm) |
| Miscellaneous | |
| Package Contents | Z2 Mini G9 Workstation Desktop PC Power Adapter |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | China Energy Conservation Program (CECP) |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| TCO Certified | Yes |
User Manual
FAQ
What processor is installed in the HP Z2 Mini G9 Workstation?
The workstation features an Intel Core i7-12700 processor from the 12th Generation. This CPU has a hybrid architecture with 12 total cores (8 Performance-cores and 4 Efficient-cores) and 20 threads, operating at a base frequency of 2.10 GHz. It is built on the Socket LGA-1700 platform and includes Intel vPro technology for enhanced security and manageability in business environments.
How much memory does this workstation have, and can it be upgraded?
The system comes with 32 GB of DDR5 SDRAM installed. It supports a maximum memory capacity of 64 GB, allowing for future expansion if higher memory workloads are anticipated. DDR5 technology provides increased bandwidth and improved power efficiency over previous memory generations, benefiting data-intensive applications.
What type of storage is included, and what are its capabilities?
Storage is provided by a 512 GB PCI Express NVMe solid-state drive. This NVMe SSD connects via the high-speed PCIe interface, delivering significantly faster read/write speeds compared to SATA-based SSDs. The storage controller supports hardware RAID, specifically levels 0 (striping for performance) and 1 (mirroring for data redundancy), offering flexibility for data management strategies.
What are the physical dimensions of the Z2 Mini G9?
The workstation has a compact mini PC form factor, measuring 2.70 inches in height, 8.30 inches in width, and 8.60 inches in depth (approximately 68.58 mm × 210.82 mm × 218.44 mm). This small size allows it to fit in spaces where traditional desktop towers cannot, such as under monitors, on wall mounts, or in crowded workstations, without sacrificing performance.
What connectivity ports are available on this workstation?
The system includes a total of six USB ports. Among these are two USB-C ports that support the 20Gbps data rate and can provide charging power up to 5V/3A for compatible devices. It also features a DisplayPort for video output to monitors and Gigabit Ethernet for wired network connectivity. This port selection supports modern peripherals and high-resolution displays.
Does this workstation support RAID configurations?
Yes, the HP Z2 Mini G9 supports hardware RAID configurations. It is capable of RAID level 0, which stripes data across drives to improve performance, and RAID level 1, which mirrors data for redundancy and data protection. This support is valuable for users who require either faster storage performance or enhanced data security for critical work files and projects.
