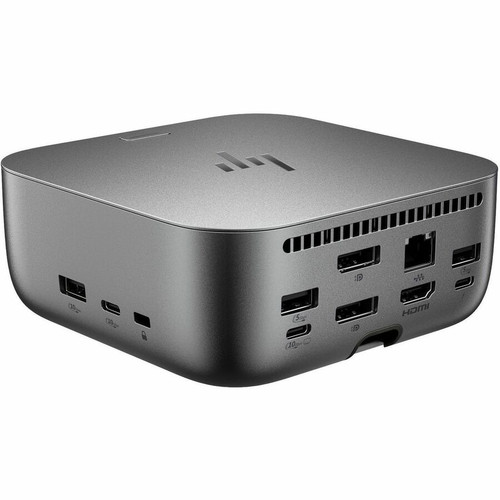

HP 9X481UT#ABA Thunderbolt 4 Ultra 180W G6 Dock - 4 Display Support - 2.5GbE - 8 USB Ports - 230W Power
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Engineered around the Thunderbolt 4 host interface, this dock provides a 40Gbps data pipeline for ultra-fast file transfers and seamless display output. The port configuration includes two DisplayPort 1.4 outputs and one HDMI port, enabling multi-monitor setups with support for high resolutions and refresh rates.
Networking is handled by a built-in 2.5 Gigabit Ethernet port, offering significantly faster wired network speeds than standard Gigabit Ethernet for large file transfers, video editing, and server access. The dock includes eight USB ports in total, with three high-speed USB-C 10Gbps ports (two supporting 15W PD, one with DisplayPort 1.4 alt mode) and five standard USB-A ports for legacy peripherals.
Relevant factors for this section include Connectivity Technology, Charging Capability, Number of Displays Supported, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This docking station consolidates cables and adapters into a single, reliable connection point, dramatically reducing desktop clutter and simplifying daily connectivity routines. Its 180W power delivery capability ensures compatible laptops remain charged at full speed, even under heavy load.
Enterprise Management Ready
Includes PXE Boot, Wake-on-LAN, and MAC Address Pass-through features for seamless integration into corporate IT environments and remote management.
Broad OS Compatibility
Officially supports Windows 10, Windows 11, macOS, Linux, ThinPro, and ChromeOS, making it a versatile choice for mixed-platform offices and developers.
High-Speed Connectivity
Combines Thunderbolt 4 bandwidth with 2.5 Gigabit Ethernet and USB 10Gbps ports to handle data-intensive tasks without bottlenecks.
Deployment / Use Cases
Ideal for knowledge workers, creative professionals, and IT departments requiring a reliable, single-cable docking solution. It effectively supports hot-desking environments where employees move between workstations but need consistent peripheral access and charging.
The dock is particularly valuable for users with high-performance laptops that benefit from 180W charging, such as mobile workstations and premium business notebooks. Its multi-display support makes it suitable for financial analysts, software developers, video editors, and anyone needing extended screen space for productivity.
Relevant factors for this section include Connectivity Technology, Charging Capability, Number of Displays Supported, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Hybrid Work Setup
Enables a clean, professional home office or corporate desk with one cable connecting monitors, network, audio, storage, and power.
IT Standardization
Provides a consistent docking experience across different laptop models and operating systems, simplifying support and procurement.
Physical Profile
The dock has a compact, square footprint measuring 4.76" x 4.76" (120.90 mm x 120.90 mm) and stands just 1.95" (49.53 mm) tall. Its modest size allows flexible placement on or under desks. Weighing approximately 1.70 lb (771.11 g), it is portable enough for occasional travel between office and home.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.95" (49.53 mm), 4.76" (120.90 mm), 4.76" (120.90 mm), 1.70 lb (771.11 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 4.76" (120.90 mm)
- Depth
- 4.76" (120.90 mm)
- Height
- 1.95" (49.53 mm)
- Weight
- 1.70 lb (771.11 g)
What's in the Box
The package includes all necessary components for immediate deployment.
Highlights
- Thunderbolt 4 host interface for 40Gbps bandwidth.
- Supports up to 4 external displays simultaneously.
- Delivers 180W USB Power Delivery to charge compatible laptops.
- Includes a 2.5 Gigabit Ethernet port for high-speed networking.
- Features 8 total USB ports (3x USB-C 10Gbps, 5x USB-A).
- Enterprise management with PXE Boot, Wake-on-LAN, MAC Pass-through.
- Compatible with Windows, macOS, Linux, ThinPro, ChromeOS.
- Compact design with a 4.76" square footprint.
- Backed by a 3-year limited warranty.
Specifications
| Specifications | |
|---|---|
| Manufacturer | HP Inc. |
| Manufacturer Part Number | 9X481UT#ABA |
| Brand Name | HP |
| Product Line | Ultra |
| Product Model | G6 |
| Product Name | Thunderbolt 4 Ultra 180W G6 Dock |
| Product Type | Docking Station |
| Technical Information | |
| Connectivity Technology | Wired |
| Charging Capability | Yes |
| Number of Displays Supported | 4 |
| Management Features | PXE Boot,Wake-on-LAN,MAC Address Pass-through |
| Device Supported | Desktop PC,Notebook |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Interfaces/Ports | |
| Host Interface | Thunderbolt 4 |
| Total Number of USB Ports | 8 |
| Number of USB Type-C Ports | 3 |
| USB Type-C | Yes |
| USB Type-C Detail | 2 x USB Type-C® 10Gbps signaling rate (up to 15 W USB Power Delivery), 1 x USB Type-C® 10Gbps signaling rate (USB Power Delivery, DisplayPort™ 1.4) |
| Number of USB Type-A Ports | 5 |
| USB Type-A | Yes |
| Number of RJ-45 Ports | 1 |
| Network (RJ-45) | Yes |
| Number of DisplayPorts | 2 |
| DisplayPort | Yes |
| DisplayPort Version | 1.4 |
| Number of HDMI Ports | 1 |
| HDMI | Yes |
| Thunderbolt | Yes |
| Thunderbolt Ports Quantity | 1 |
| Number of Thunderbolt 4 Ports | 1 |
| USB Power Delivery | 180W |
| Software | |
| Operating System Supported | Windows 10,Windows 11,macOS,Linux,ThinPro,ChromeOS |
| Power Description | |
| Maximum Power Supply Wattage | 230 W |
| Physical Characteristics | |
| Height | 1.95" (49.53 mm) |
| Width | 4.76" (120.90 mm) |
| Depth | 4.76" (120.90 mm) |
| Weight (Approximate) | 1.70 lb (771.11 g) |
| Miscellaneous | |
| Package Contents | Thunderbolt 4 Ultra 180W G6 Dock 230 W Power Adapter Thunderbolt™ 4 Cable (1 m) Power Cord Product Notice Warranty Card |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
How many displays can I connect to this HP Thunderbolt 4 Dock?
The HP Thunderbolt 4 Ultra 180W G6 Dock supports up to four external displays simultaneously. It provides two DisplayPort 1.4 outputs and one HDMI port, which can be used in combination to drive multiple monitors, expanding your desktop for enhanced productivity and multitasking.
What is the power delivery capability of this docking station?
This dock provides 180W of USB Power Delivery (PD) through its Thunderbolt 4 host port. This is sufficient to charge and power high-performance laptops, including mobile workstations, at their full rated speed while the dock is in use, eliminating the need for a separate laptop power adapter.
What type of Ethernet connection does this dock have?
It includes a built-in 2.5 Gigabit Ethernet (2.5GbE) port. This offers two and a half times the bandwidth of standard 1 Gigabit Ethernet, providing faster network speeds for transferring large files, accessing network storage, video conferencing, and other bandwidth-intensive tasks on a supported network.
Which operating systems are compatible with this HP dock?
The dock is compatible with a wide range of operating systems, including Windows 10, Windows 11, macOS, Linux, HP ThinPro, and ChromeOS. This broad support makes it suitable for diverse IT environments, from corporate Windows deployments to developer setups using macOS or Linux.
What management features are included for IT administration?
It includes several enterprise management features: PXE Boot for network-based operating system deployment, Wake-on-LAN to remotely power on connected computers over the network, and MAC Address Pass-through, which allows the host device's MAC address to be used on the network for consistent identification and security policies.
What is included in the box with the docking station?
The package contains the Thunderbolt 4 Ultra 180W G6 Dock unit, a 230 W power adapter, a 1-meter Thunderbolt 4 cable for connecting to your host computer, a power cord, a product notice, and a warranty card. Everything needed for setup is included.
