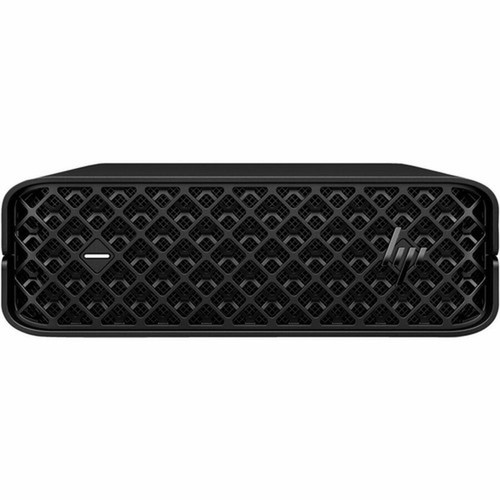

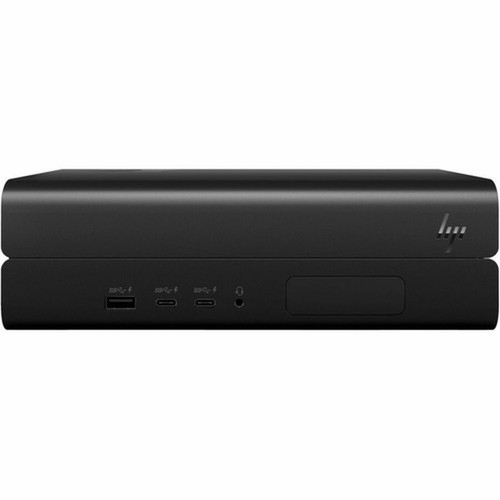

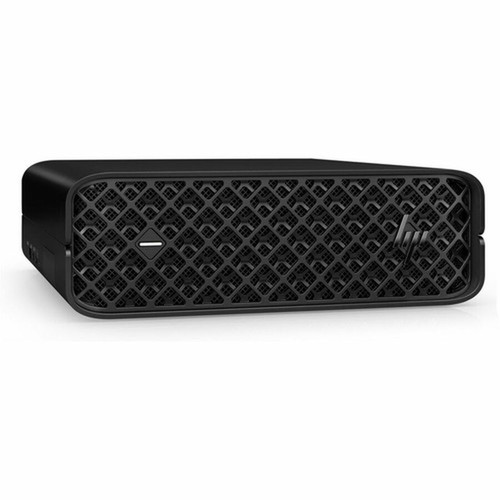

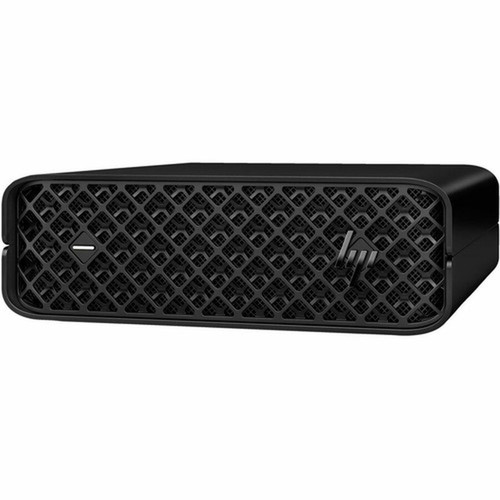

HP A12W0UT#ABA Z2 Mini G9 Workstation - Core i7-14700K 14th Gen - 32GB DDR5512GB NVMe SSD - Quadro T1000 8GB - Windows 11 Pro - Black Mini PC
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the heart of the Z2 Mini G9 is the Intel Core i7-14700K processor featuring a hybrid architecture with performance and efficiency cores. Operating at a base frequency of 3.40 GHz with Intel Turbo Boost technology, this 14th Gen processor delivers substantial single-threaded and multi-threaded performance. The system utilizes DDR5 memory technology running at 5600 MHz, offering significantly higher bandwidth compared to previous generations while supporting expansion up to 64GB.
Storage is handled by a PCI Express NVMe solid-state drive with 512GB capacity, providing rapid boot times, fast application loading, and quick file transfers. The NVIDIA Quadro T1000 graphics card features 8GB of GDDR6 memory and supports multiple display outputs through DisplayPort and USB Type-C connections. Power is supplied by a 280-watt external power adapter designed for reliable operation under sustained workloads.
Key Product Advantages
The Z2 Mini G9 combines workstation-class components with a space-saving design that doesn't compromise on performance or expandability. Unlike standard desktop computers, this system features certified professional graphics and ISV-tested components that ensure reliability with demanding applications.
Professional Graphics Performance
The NVIDIA Quadro T1000 provides dedicated graphics acceleration for CAD, 3D modeling, and visualization applications with 8GB of fast GDDR6 memory.
- Certified for professional applications
- Dedicated graphics memory
- Multiple display support
Compact Workstation Design
Measuring just 2.72 inches in height, the mini PC form factor saves valuable desk space while delivering full workstation capabilities.
- Space-efficient footprint
- Full workstation performance
- Professional-grade components
Modern Connectivity
Six USB ports including two SuperSpeed USB Type-C 20Gbps ports provide high-speed data transfer and display connectivity options.
- USB Type-C 20Gbps
- DisplayPort output
- Wireless LAN and Bluetooth
Deployment / Use Cases
The HP Z2 Mini G9 Workstation is engineered for professional environments where space is at a premium but performance cannot be compromised. Its compact dimensions make it ideal for engineering workstations, design studios, financial trading desks, and medical imaging stations where multiple displays and professional applications are required within limited physical space.
Creative professionals will appreciate the system's ability to handle demanding applications like AutoCAD, SolidWorks, Adobe Creative Suite, and video editing software while occupying minimal desk real estate. The workstation's professional graphics certification ensures compatibility and stability with industry-standard applications, while the powerful processor and fast memory configuration support complex simulations, rendering tasks, and data analysis workloads.
Engineering & Design Workstation
Perfect for CAD operators and design engineers who need certified graphics performance in compact office or lab environments.
Financial & Trading Applications
Supports multiple displays for market data visualization with the processing power for complex financial modeling and analysis.
Localization and Operating System
This workstation ships with Windows 11 Pro pre-installed in English, providing a professional operating system environment with enhanced security features, BitLocker encryption, and remote desktop capabilities. The English-language operating system is complemented by an English-localized keyboard, ensuring a consistent user experience for English-speaking professionals.
Windows 11 Pro offers productivity enhancements including the redesigned Start menu, Snap Layouts for efficient window management, and improved multitasking features. The professional edition includes business-focused capabilities such as Group Policy management, Hyper-V for virtualization, and Windows Information Protection for data security.
Relevant factors for this section include Processor Type, Processor Generation, Processor Model, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The Z2 Mini G9's compact chassis measures 2.72 inches in height, 8.58 inches in width, and 8.31 inches in depth, presenting a significantly smaller footprint than traditional tower workstations. The black finish provides a professional appearance suitable for office environments, while the 5.29-pound weight makes the system easily portable between workspaces when needed.
Despite its small size, the workstation maintains adequate thermal management for sustained performance under load. The compact form factor allows for flexible placement options including vertical or horizontal orientation, mounting behind displays with VESA-compatible brackets, or integration into specialized workstation furniture.
- Width
- 8.58" (218 mm)
- Depth
- 8.31" (211 mm)
- Height
- 2.72" (69 mm)
- Weight
- 5.29 lb (2400 g)
What's in the Box
The workstation arrives ready for setup with all necessary components included for immediate use.
Highlights
- Intel Core i7-14700K 14th Gen processor with 16 cores and 28 threads
- 32GB DDR5 memory running at 5600 MHz, expandable to 64GB
- 512GB PCI Express NVMe solid-state drive for fast storage
- NVIDIA Quadro T1000 graphics with 8GB dedicated GDDR6 memory
- Windows 11 Pro operating system with English language
- Compact mini PC form factor measuring just 2.72 inches tall
- Six USB ports including two SuperSpeed USB Type-C 20Gbps
- Wireless LAN and Bluetooth connectivity options
- 280-watt power supply for reliable performance
- Professional workstation components certified for stability
Specifications
| Specifications | |
|---|---|
| Manufacturer | HP Inc. |
| Manufacturer Part Number | A12W0UT#ABA |
| Brand Name | HP |
| Product Series | Z2 Mini G9 |
| Product Name | Z2 Mini G9 Workstation |
| Product Type | Workstation |
| Processor | |
| Processor Type | Core i7 |
| Processor Generation | 14th Gen |
| Processor Model | i7-14700K |
| Processor Core | Hexadeca-core (16 Core) |
| Processor Threads | 28 |
| Processor Speed | 3.40 GHz |
| Processor Socket | Socket LGA-1700 |
| vPro Technology | No |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Standard Memory | 32 GB |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Clock Speed | 5.60 GHz |
| Memory Configuration | 1 x 32GB |
| Error Checking | Non-ECC |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 512 GB |
| Solid State Drive Interface | PCI Express NVMe |
| Display & Graphics | |
| Graphics Controller Model | Quadro T1000 |
| Graphics Memory Technology | GDDR6 |
| Graphics Memory Capacity | 8 GB |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | English |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| USB Type-C | Yes |
| USB Type-C Detail | 2 SuperSpeed USB Type-C 20Gbps signaling rate |
| DisplayPort | Yes |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Language | English |
| Power Description | |
| Maximum Power Supply Wattage | 280 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Mini PC |
| Height | 2.72" (69 mm) |
| Width | 8.58" (218 mm) |
| Depth | 8.31" (211 mm) |
| Weight (Approximate) | 5.29 lb (2400 g) |
| Miscellaneous | |
| Package Contents | Z2 Mini G9 Workstation HP USB 320K Keyboard HP Wired 320M Mouse 280 W External Power Adapter |
| Energy Star | Yes |
| Warranty | |
| Limited Warranty | 1 Year |
| Additional Warranty Information | Support Service Included: HP 1 Year Wolf Pro Security Edition Service. For terms and conditions, please visit & Manufacturer Warranty: 1 year (1/1/1) limited warranty includes 1 year of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply. |
User Manual
FAQ
What processor does the HP Z2 Mini G9 Workstation use?
The workstation features an Intel Core i7-14700K 14th Generation processor. This CPU has 16 cores (8 performance cores and 8 efficiency cores) and 28 threads, operating at a base frequency of 3.40 GHz with Intel Turbo Boost technology for higher performance when needed. The processor uses the LGA-1700 socket and represents Intel's latest hybrid architecture designed for both single-threaded and multi-threaded workstation workloads.
How much memory is installed and what type is it?
The system comes with 32GB of DDR5 SDRAM installed as a single 32GB module running at 5600 MHz. This is non-ECC memory suitable for workstation applications. The motherboard supports memory expansion up to 64GB total capacity, allowing for future upgrades if additional memory is required for more demanding applications or larger datasets.
What graphics card is included and how much memory does it have?
The workstation includes an NVIDIA Quadro T1000 professional graphics card with 8GB of dedicated GDDR6 memory. This is a workstation-class GPU certified for professional applications like CAD, 3D modeling, and engineering software. The dedicated graphics memory ensures smooth performance with complex models and visualizations without sharing system memory resources.
What storage capacity and type does this workstation have?
Storage is provided by a 512GB solid-state drive using the PCI Express NVMe interface. This high-speed storage solution offers significantly faster data transfer rates compared to SATA SSDs or traditional hard drives, resulting in quicker boot times, faster application loading, and rapid file access for improved productivity in workstation applications.
What operating system is pre-installed on this workstation?
The system comes with Windows 11 Pro pre-installed in English. Windows 11 Pro includes professional features such as BitLocker device encryption, remote desktop functionality, Hyper-V for virtualization, and enhanced security capabilities. The professional edition is designed for business and workstation environments where these advanced features are necessary for productivity and data protection.
How compact is the Z2 Mini G9 Workstation and what are its dimensions?
The workstation features a mini PC form factor measuring 2.72 inches in height, 8.58 inches in width, and 8.31 inches in depth (69mm × 218mm × 211mm). It weighs approximately 5.29 pounds (2400 grams). This compact design saves significant desk space compared to traditional tower workstations while still housing full workstation components including a dedicated graphics card and powerful cooling system.
