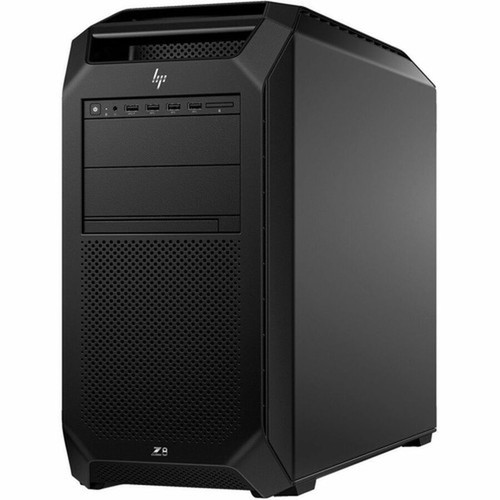

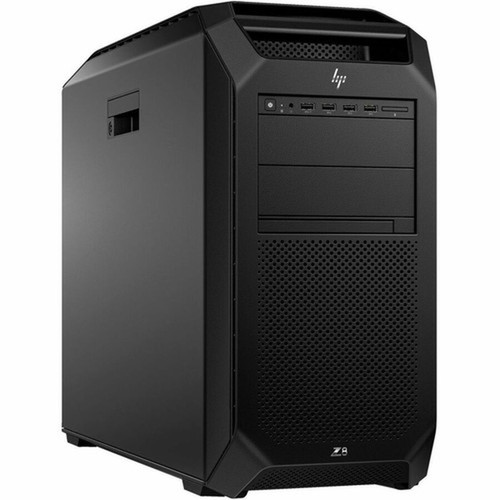

HP A18DHUA#ABA Z8 G5 Workstation - Intel Xeon Gold 6430 32-Core - 128 GB DDR5 - 4 TB NVMe SSD - Tower - Windows 11 Pro
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The Z8 G5 leverages Intel's Xeon Gold 6430 processor, a 32-core CPU that supports 64 threads for parallel processing efficiency. This processor is paired with the Intel C741 chipset, which manages high-speed interconnects and supports advanced memory and storage configurations. The system includes 128 GB of DDR5 SDRAM with ECC (Error-Correcting Code) protection, configured as four 32 GB modules running at 4.80 GHz to minimize latency and maximize bandwidth.
Storage is handled by a 4 TB NVMe SSD using the PCI Express 4.0 interface, offering sequential read/write speeds that significantly reduce load times for large files. The Serial ATA/600 controller supports RAID 0 and RAID 1 configurations for data striping or mirroring. Networking is provided by Gigabit Ethernet, and connectivity includes 10 USB ports for peripherals.
Relevant factors for this section include Processor Manufacturer, Processor Type, Processor Model, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This workstation combines enterprise-grade components with a tower form factor designed for expandability and cooling efficiency. The Xeon Gold processor and ECC memory ensure reliable operation under continuous heavy loads, making it suitable for 24/7 environments. The NVMe SSD accelerates data-intensive workflows, while the comprehensive warranty and support package provides long-term peace of mind.
Memory Performance
128 GB of DDR5 ECC memory at 4.80 GHz supports large datasets and multiple virtual machines without performance degradation.
- ECC protection prevents data corruption
- High clock speed reduces latency
- Quad-channel configuration optimizes bandwidth
Storage Speed
The 4 TB NVMe SSD uses PCI Express 4.0 for faster data transfer compared to SATA-based storage, improving application launch times and file access.
- PCIe 4.0 interface maximizes throughput
- Large capacity accommodates project files
- RAID support enhances data redundancy
Deployment / Use Cases
The HP Z8 G5 is ideal for engineering, scientific research, media production, and financial modeling where computational accuracy and speed are critical. Its tower design allows for additional expansion cards, storage drives, or specialized accelerators, adapting to evolving project requirements.
Common applications include CAD/CAM software, finite element analysis, video editing suites, and database management. The system's reliability and performance make it suitable for small to medium-sized businesses, research institutions, and creative studios that need desktop-level power without the footprint of a rack-mounted server.
Engineering & Design
Handles complex simulations, 3D modeling, and rendering tasks with the Xeon processor and high memory capacity.
Data Science & Analytics
Processes large datasets efficiently using the multi-core CPU and fast NVMe storage for iterative analysis.
Localization and Operating System
The HP Z8 G5 Workstation ships with Windows 11 Pro pre-installed, offering a professional-grade operating system tailored for business and technical environments. This version includes advanced features such as BitLocker encryption for data security, remote desktop capabilities for IT management, and enhanced update controls to maintain system stability during critical workloads. Windows 11 Pro provides a familiar interface that supports a wide range of professional software suites, from CAD and simulation tools to data analytics platforms, ensuring compatibility and smooth operation out of the box.
While the workstation does not include specific localization details like keyboard language or regional settings in product details, it is configured for standard North American deployment with the included HP USB 320K keyboard and HP wired 320M mouse. For international deployments, buyers should verify localization options directly with HP or resellers to ensure proper language support and compliance with regional requirements. The operating system's flexibility allows for customization post-installation to meet diverse user needs in global professional settings.
Windows 11 Pro Features
Includes BitLocker encryption, remote desktop, and enhanced security updates for professional use cases.
- Supports enterprise management tools
- Provides stable platform for critical applications
- Enables secure data handling
Physical Profile
The tower form factor provides ample internal space for cooling and future upgrades, with a weight of approximately 49.60 lb (22.5 kg). This design supports standard ATX components and allows for easy access to internal bays and slots. The robust construction ensures durability in office or lab environments, and the size accommodates standard desk or under-desk placement.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 49.60 lb (22500 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 49.60 lb (22500 g)
What's in the Box
The package includes the Z8 G5 Workstation tower, an HP USB 320K keyboard, and an HP wired 320M mouse, providing essential peripherals for immediate setup.
Highlights
- Intel Xeon Gold 6430 processor with 32 cores and 64 threads for heavy multitasking
- 128 GB of DDR5 ECC memory at 4.80 GHz ensures data integrity and high-speed performance
- 4 TB NVMe SSD via PCI Express 4.0 for fast storage access and large capacity
- Windows 11 Pro operating system with professional-grade features and security
- Tower form factor allows easy expansion and cooling for continuous operation
- Serial ATA/600 controller with RAID 0 and RAID 1 support for data protection
- Gigabit Ethernet provides reliable high-speed network connectivity
- 10 USB ports offer ample connectivity for peripherals and devices
- Includes HP 3-year Onsite Care Workstation Hardware Support for extended service
- Package includes keyboard and mouse for immediate use
Specifications
| Specifications | |
|---|---|
| Manufacturer | HP Inc. |
| Manufacturer Part Number | A18DHUA#ABA |
| Brand Name | HP |
| Product Series | Z8 G5 |
| Product Name | Z8 G5 Workstation |
| Product Type | Workstation |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Type | Xeon Gold |
| Processor Model | 6430 |
| Processor Core | Dotriaconta-core (32 Core) |
| Processor Threads | 64 |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C741 |
| Memory | |
| Standard Memory | 128 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Clock Speed | 4.80 GHz |
| Memory Configuration | 4 x 32GB |
| Error Checking | ECC |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 4 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 10 |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Physical Characteristics | |
| Form Factor | Tower |
| Weight (Approximate) | 49.60 lb (22500 g) |
| Miscellaneous | |
| Package Contents | Z8 G5 Workstation HP USB 320K Keyboard HP Wired 320M Mouse |
| Warranty | |
| Limited Warranty | 1 Year |
| Additional Warranty Information | Support Service Included: HP 3 year Onsite Care Workstation Hardware Support. For terms and conditions, please visit & Manufacturer Warranty: 1 year (1/1/1) limited warranty includes 1 year of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply. |
User Manual
FAQ
What processor does this product use?
This product uses the Xeon Gold processor for everyday performance and multitasking.
How much memory is installed?
It includes 128 GB of memory to support responsive multitasking and daily workloads.
What storage is included?
The system includes 4 TB of storage for applications, files, and everyday business data.
What graphics or display support is listed?
Display-related specifications help position HP Z8 G5 Workstation - Intel Xeon Gold 6430 - 128 GB - 4 TB SSD - Tower - Intel C741 Chip - Windows 11 Pro - Serial ATA/600 Controller (A18DHUA#ABA) for the kind of viewing experience, readability, and workspace fit buyers may expect in computers/desktops & workstations/workstations deployments.
What connectivity options are available?
Connectivity options include Gigabit Ethernet, helping the product integrate into common office or home setups.
What operating system or platform is included?
The included operating environment is Windows, which helps position the product for software compatibility, deployment planning, and day-to-day business use.
