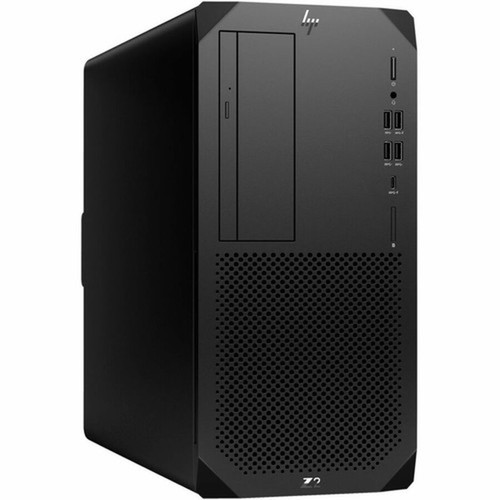

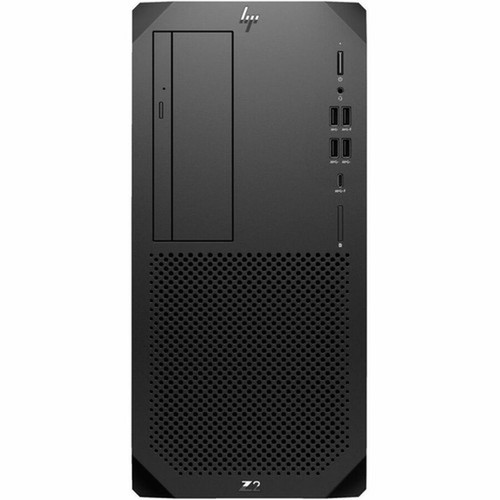

HP A1NX1UT#ABA Z2 G9 Workstation Tower - Core i5-14500 14th Gen - 16GB DDR5512GB PCIe SSD - Windows 11 Pro - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At its core, the Z2 G9 utilizes the Intel Core i5-14500 processor, a 14th Gen chip with a base clock of 2.60 GHz and support for the LGA-1700 socket. This CPU is paired with the Intel W680 chipset, which provides stability and I/O management for workstation workloads. Memory is configured as a single 16GB DDR5 module running at 4800 MHz, with a maximum capacity of 128GB to accommodate memory-intensive applications.
Storage is handled by a 512GB PCI Express 4.0 SSD, offering significantly faster data transfer rates compared to SATA-based drives. The Serial ATA/600 controller supports RAID 0 and RAID 1 configurations for data redundancy or performance striping. Graphics are managed through shared system memory, suitable for professional applications that do not require discrete GPU acceleration. Connectivity includes 10 USB ports, DisplayPort output, and integrated Ethernet for network access.
Key Product Advantages
This workstation stands out with its balance of current-generation hardware and professional support. The inclusion of Windows 11 Pro adds commercial-grade security features like BitLocker and remote management capabilities. The tower design allows straightforward access to internal bays and slots, simplifying maintenance and future upgrades such as adding more storage, memory, or a dedicated graphics card.
Professional-Grade Reliability
The Z2 G9 is built with workstation-specific components and validated for continuous operation under heavy loads. Its 700W power supply ensures stable power delivery, while the tower chassis promotes effective thermal management.
- Intel W680 chipset for enhanced I/O stability
- 3-year warranty with on-site service
- Energy Star certification for power efficiency
Modern Performance Foundation
DDR5 memory and PCIe 4.0 SSD technology provide a forward-looking performance base. The 14-core processor handles multi-threaded software efficiently, reducing render times and improving workflow responsiveness.
- DDR5 at 4800 MHz for lower latency
- PCIe 4.0 SSD for rapid file transfers
- 14-core CPU for parallel task execution
Deployment / Use Cases
The HP Z2 G9 is deployed in scenarios where reliability and computational power are prioritized over maximum graphics performance. Its shared graphics make it best for CPU-bound tasks rather than GPU-intensive rendering or gaming. Common installations include corporate IT departments, university labs, and small design studios that require a dependable, upgradeable system for daily professional use.
IT managers appreciate the standardized tower format for easy integration into existing desk setups and server rooms. The system's support for RAID configurations also makes it a candidate for local data storage roles where redundancy is desired without a full server investment.
Engineering & Design Workloads
Ideal for CAD, finite element analysis, and 3D modeling where CPU performance and memory capacity are critical. The PCIe 4.0 SSD accelerates project file loading and save operations.
Business & Data Analysis
Suited for financial modeling, database management, and software development environments. The multi-core processor efficiently handles virtual machines, compilations, and large datasets.
Localization and Operating System
This workstation ships with Windows 11 Pro pre-installed in English. The operating system includes professional features such as Group Policy management, Hyper-V for virtualization, and enhanced security protocols suitable for business networks. The keyboard localization is English, matching the OS language for a consistent user experience.
Windows 11 Pro provides a modern interface with productivity enhancements like Snap Layouts and integrated Microsoft Teams. For organizations with mixed-language environments, the system can be re-imaged with other language versions of Windows, though the pre-loaded software and documentation are English.
Relevant factors for this section include Processor Type, Processor Generation, Processor Model, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The Z2 G9 uses a traditional tower form factor with a black exterior finish. Its dimensions of 14.02 inches high, 6.65 inches wide, and 15.16 inches deep (356 x 169 x 385 mm) allow it to fit under standard desks or on desktop surfaces. The weight of 15.87 pounds (7200 grams) reflects its robust internal construction and cooling components.
The tower chassis provides ample internal space for additional drives, expansion cards, and cooling fans. The design emphasizes serviceability with tool-less access panels where possible, reducing downtime for hardware upgrades or maintenance. The black color scheme ensures a professional appearance that blends into office environments.
- Width
- 6.65" (169 mm)
- Depth
- 15.16" (385 mm)
- Height
- 14.02" (356 mm)
- Weight
- 15.87 lb (7200 g)
What's in the Box
The workstation arrives ready for setup with all essential peripherals included.
Highlights
- Intel Core i5-14500 14th Gen processor with 14 cores and 20 threads
- 16GB DDR5 SDRAM running at 4800 MHz, expandable to 128GB
- 512GB PCI Express 4.0 SSD for fast boot and application loading
- Windows 11 Pro operating system with English language
- Tower form factor in black for easy upgrades and serviceability
- 700W power supply ensures stable operation under load
- 10 USB ports and DisplayPort for peripheral connectivity
- 3-year limited warranty with on-site repair service
- RAID 0/1 support for data redundancy or performance
- Energy Star certified for energy efficiency
Specifications
| Specifications | |
|---|---|
| Manufacturer | HP Inc. |
| Manufacturer Part Number | A1NX1UT#ABA |
| Brand Name | HP |
| Product Series | Z2 G9 |
| Product Name | Z2 Tower G9 Workstation |
| Product Type | Workstation |
| Processor | |
| Processor Type | Core i5 |
| Processor Generation | 14th Gen |
| Processor Model | i5-14500 |
| Processor Core | Tetradeca-core (14 Core) |
| Processor Threads | 20 |
| Processor Speed | 2.60 GHz |
| Processor Socket | Socket LGA-1700 |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | W680 |
| Memory | |
| Standard Memory | 16 GB |
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Clock Speed | 4.80 GHz |
| Memory Configuration | 1 x 16GB |
| Error Checking | Non-ECC |
| Signal Processing | Unbuffered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 512 GB |
| Solid State Drive Interface | PCI Express 4.0 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1 |
| Display & Graphics | |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | Ethernet |
| Input Devices | |
| Keyboard Localization | English |
| Interfaces/Ports | |
| Total Number of USB Ports | 10 |
| DisplayPort | Yes |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Language | English |
| Power Description | |
| Maximum Power Supply Wattage | 700 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Tower |
| Height | 14.02" (356 mm) |
| Width | 6.65" (169 mm) |
| Depth | 15.16" (385 mm) |
| Weight (Approximate) | 15.87 lb (7200 g) |
| Miscellaneous | |
| Package Contents | Z2 Tower G9 Workstation HP Wired Desktop 320K Keyboard HP Wired 320M Mouse |
| Energy Star | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Support Service Included: HP 1 Year Wolf Pro Security Edition Service. For terms and conditions, please visit & Manufacturer Warranty: 3 year (3/3/3) limited warranty includes 3 years of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply. |
User Manual
FAQ
What processor does this HP workstation use?
This HP Z2 G9 Workstation is equipped with an Intel Core i5-14500 processor from the 14th Gen family. It features 14 cores and 20 threads with a base clock speed of 2.60 GHz, using the LGA-1700 socket. This CPU provides strong multi-threaded performance for professional applications like CAD, data analysis, and software development.
How much memory is installed and what type is it?
The system comes with 16GB of DDR5 SDRAM installed as a single 16GB module running at 4800 MHz. The memory is non-ECC and unbuffered. It supports expansion up to 128GB total, allowing for significant upgrades if your workloads require more RAM for large datasets or virtualization.
What storage configuration does this workstation have?
Storage is provided by a 512GB PCI Express 4.0 solid-state drive (SSD). This interface offers much higher data transfer speeds compared to SATA SSDs or hard drives. The system also includes a Serial ATA/600 controller that supports RAID 0 and RAID 1 configurations for performance or redundancy if additional drives are added.
Does this workstation include a dedicated graphics card?
No, this configuration uses shared graphics memory from the system RAM rather than a dedicated GPU. This makes it suitable for CPU-intensive tasks like computational analysis, coding, and general business applications, but not for high-end 3D rendering, video editing, or gaming that require discrete graphics acceleration.
What operating system is pre-installed?
The workstation ships with Windows 11 Pro already installed in English. Windows 11 Pro includes commercial features such as BitLocker encryption, remote desktop hosting, and Group Policy management, making it appropriate for business and institutional environments that require advanced security and administrative controls.
What warranty and support are included with this HP workstation?
HP provides a 3-year limited warranty that covers parts, labor, and on-site repair. The warranty also includes one year of HP Wolf Pro Security Edition service for enhanced protection. This support package ensures minimal downtime for professional users, with direct service dispatch available for hardware issues during the coverage period.
