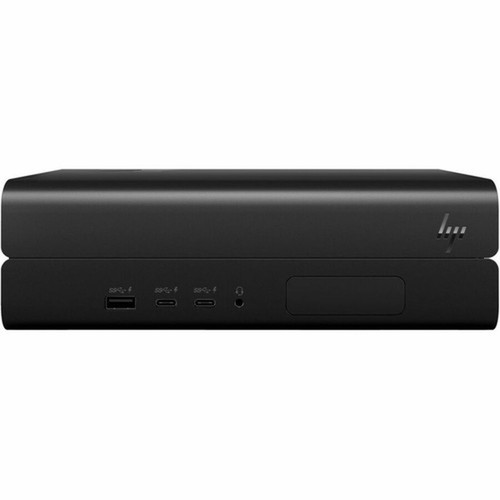

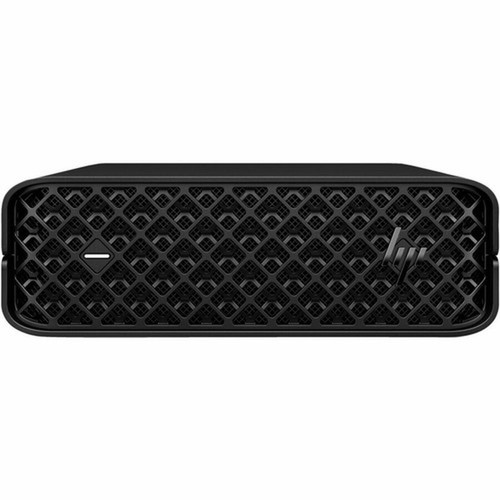

HP A20NLUA#ABA Z2 Mini G9 Workstation - Core i3-12100 12th Gen - 16GB DDR5512GB NVMe SSD - Windows 11 Pro
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the Z2 Mini G9 is Intel's 12th Gen Core i3-12100 processor, featuring four physical cores and eight threads for parallel processing efficiency. The processor operates on Intel's modern architecture, delivering improved instructions per cycle and power management compared to previous generations. Memory performance is enhanced through DDR5 SDRAM technology, which provides higher bandwidth and better power efficiency than DDR4, with the installed 16 GB module running at 5.60 GHz.
Storage performance is accelerated by the PCI Express NVMe 4.0 interface, allowing the 512 GB solid-state drive to deliver rapid data access and transfer speeds. The system utilizes Intel UHD Graphics for display output, supporting professional applications that benefit from hardware acceleration. Network connectivity includes both wired Gigabit Ethernet and wireless LAN options, providing flexibility for different office environments.
Key Product Advantages
The Z2 Mini G9 Workstation combines professional workstation components with a space-saving design that doesn't compromise on capability. Its compact form factor enables deployment in environments where traditional tower workstations wouldn't fit, while still providing the processing power and memory needed for engineering, design, and business applications.
Modern Memory Architecture
DDR5 SDRAM delivers higher bandwidth and improved power efficiency compared to previous memory generations, supporting data-intensive applications with faster access to working data.
- 5.60 GHz clock speed
- Improved bandwidth per pin
- Lower operating voltage
Professional-Grade Storage
The PCI Express NVMe 4.0 interface provides significantly faster data transfer rates than SATA or earlier NVMe generations, reducing load times for applications and large files.
- 512 GB capacity
- Direct processor connection
- Low latency access
Comprehensive Connectivity
With six USB ports including two high-speed Type-C connections, DisplayPort output, and both wired and wireless networking, the system supports modern peripherals and display configurations.
- 20Gbps USB Type-C
- Gigabit Ethernet
- Wireless LAN and Bluetooth
Deployment / Use Cases
This compact workstation is ideal for professional environments where space is at a premium but performance requirements remain demanding. Its small footprint makes it suitable for crowded office desks, point-of-sale stations, medical carts, or educational labs where multiple systems need to coexist in limited space.
The combination of Windows 11 Pro and workstation-class components supports applications in engineering, architecture, financial analysis, and content creation. The system can handle CAD software, statistical analysis packages, video editing tools, and virtualization workloads while occupying minimal physical space. IT departments benefit from the standardized Windows Pro environment for management and security controls.
Localization and Operating System
This HP Z2 Mini G9 Workstation ships with Windows 11 Pro pre-installed, providing a professional-grade operating system ready for immediate deployment in business and technical environments. Windows 11 Pro includes essential enterprise management features, enhanced security controls like BitLocker encryption, and compatibility with a wide range of professional applications, from CAD and engineering software to financial analysis tools and virtualization platforms.
The operating system is configured for general professional use with standard U.S. English language settings and keyboard layout. This setup ensures compatibility with common business software and IT management systems without requiring additional localization adjustments. The Windows 11 Pro environment supports domain joining, Group Policy management, and remote desktop functionality, making it suitable for integration into corporate IT infrastructures where centralized control and security are priorities.
Windows 11 Pro for Professional Workloads
The pre-installed Windows 11 Pro operating system delivers a stable platform for demanding workstation applications, with built-in security features and management tools that reduce IT overhead.
- Enterprise-grade security with BitLocker
- Domain join and Group Policy support
- Compatibility with professional software suites
Physical Profile
The Z2 Mini G9 utilizes a compact mini PC form factor that measures significantly smaller than traditional workstation towers. With an approximate weight of 5.29 lb (2400 g), the system is easily portable between workstations or can be mounted behind monitors using VESA-compatible brackets. The small footprint allows placement in tight spaces while maintaining full workstation capability.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 5.29 lb (2400 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 5.29 lb (2400 g)
What's in the Box
The workstation arrives ready for setup with all essential components included for immediate deployment.
Highlights
- Intel Core i3-12100 12th Gen processor with quad-core design and eight threads
- 16 GB DDR5 SDRAM running at 5.60 GHz for high-bandwidth memory access
- 512 GB PCI Express NVMe 4.0 solid-state drive for rapid storage performance
- Windows 11 Pro operating system with enterprise management features
- Compact mini PC form factor for space-constrained deployment
- Comprehensive connectivity with six USB ports including two 20Gbps Type-C
- Dual networking options with Gigabit Ethernet and wireless LAN
- Includes keyboard, mouse, and power adapter for complete setup
- Intel UHD Graphics with DisplayPort output for professional displays
- 280 W power supply ensures stable operation under load
Specifications
| Specifications | |
|---|---|
| Manufacturer | HP Inc. |
| Manufacturer Part Number | A20NLUAABA |
| Brand Name | HP |
| Product Series | Z2 Mini G9 |
| Product Name | Z2 Mini G9 Workstation |
| Product Type | Workstation |
| Processor | |
| Processor Type | Core i3 |
| Processor Generation | 12th Gen |
| Processor Model | i3-12100 |
| Processor Core | Quad-core (4 Core) |
| Processor Threads | 8 |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Standard Memory | 16 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Clock Speed | 5.60 GHz |
| Memory Configuration | 1 x 16GB |
| Error Checking | Non-ECC |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 512 GB |
| Solid State Drive Interface | PCI Express NVMe 4.0 |
| Display & Graphics | |
| Graphics Controller Model | UHD Graphics |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| USB Type-C | Yes |
| USB Type-C Detail | 2 SuperSpeed USB Type-C 20Gbps signaling rate |
| DisplayPort | Yes |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Power Description | |
| Maximum Power Supply Wattage | 280 W |
| Physical Characteristics | |
| Form Factor | Mini PC |
| Weight (Approximate) | 5.29 lb (2400 g) |
| Miscellaneous | |
| Package Contents | Z2 Mini G9 Workstation HP USB 320K Keyboard HP Wired 320M Mouse 280 W External Power Adapter |
| Warranty | |
| Limited Warranty | 1 Year |
| Additional Warranty Information | 1 year (1/1/1) limited warranty includes 1 year of parts, labor and on-site repair. |
User Manual
FAQ
What processor does this product use?
This product uses the 12th Gen processor for everyday performance and multitasking.
How much memory is installed?
It includes 16 GB of memory to support responsive multitasking and daily workloads.
What storage is included?
The system includes 512 GB of storage for applications, files, and everyday business data.
What graphics or display support is listed?
It features a display specification of UHD Graphics, giving you clear visuals for work and media use.
What connectivity options are available?
Connectivity options include Gigabit Ethernet, helping the product integrate into common office or home setups.
What operating system or platform is included?
The included operating environment is Windows, which helps position the product for software compatibility, deployment planning, and day-to-day business use.
