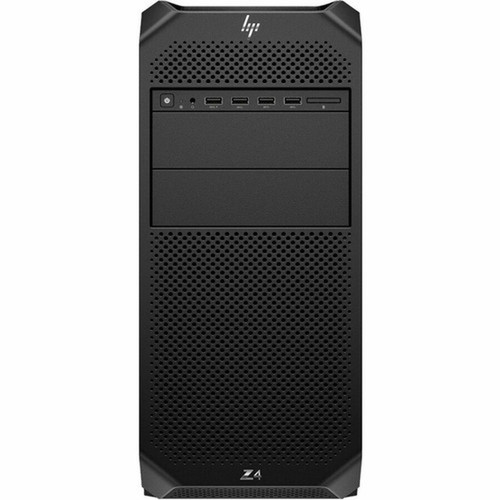

HP A33M6UP#ABA Z4 G5 Workstation - Xeon w5-2465 x 16-Core 3. 10 GHz - 128 GB DDR5 ECC RAM - Tower - Black - Intel W790 Chipset - RAID 0/1/5/10
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This workstation features a single Intel Xeon w5-2465X processor with 16 cores and 32 threads operating at 3.10 GHz base frequency. The processor interfaces with the system via the Socket LGA-4677 and is supported by the Intel W790 chipset, which provides the foundation for high-speed data pathways and I/O management.
Memory architecture utilizes DDR5 technology with error-correcting code (ECC) and registered signal processing for enhanced data integrity in critical applications. The storage subsystem includes a Serial ATA controller with hardware RAID support for levels 0, 1, 5, and 10, enabling flexible storage configurations for performance or redundancy requirements.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The HP Z4 G5 Workstation combines these technical advantages in a tower chassis that provides ample room for additional components and cooling. The system's professional pedigree ensures it meets the rigorous demands of engineering, scientific, and creative professionals who require uncompromising performance and stability.
Enterprise-Grade Processing
The Intel Xeon w5-2465X processor delivers 16 cores and 32 threads with built-in security features and remote management capabilities, making it ideal for business environments where reliability and manageability are paramount.
Expansive Memory Architecture
With 128 GB of DDR5 ECC registered memory installed and eight available slots supporting up to 512 GB total, this workstation accommodates memory-hungry applications while maintaining data integrity through error correction.
Professional Storage Flexibility
The integrated Serial ATA controller with hardware RAID 0, 1, 5, and 10 support allows for customized storage configurations that balance performance, capacity, and data protection according to specific workflow requirements.
Deployment / Use Cases
This workstation excels in environments where computational intensity meets professional reliability requirements. Its tower form factor provides the physical space for additional storage drives, expansion cards, or specialized hardware that might be needed for particular applications.
The system's compatibility with both 120V and 230V input voltages, combined with its comprehensive environmental certifications, makes it suitable for deployment in various geographic regions and organizational settings with different power infrastructure and sustainability requirements.
Engineering Simulation & Analysis
The high core count and substantial memory capacity make this workstation well-suited for finite element analysis, computational fluid dynamics, and other simulation workloads that benefit from parallel processing and large data sets.
Media Production & 3D Rendering
Content creators working with high-resolution video, complex 3D models, or visual effects can leverage the processing power and memory bandwidth to reduce render times and improve workflow efficiency.
Physical Profile
The tower chassis measures 15.20 inches in height, 6.65 inches in width, and 18.06 inches in depth, with an approximate weight of 42.99 pounds. The black finish presents a professional appearance suitable for office or lab environments, while the air cooling system maintains optimal operating temperatures during extended compute sessions.
The standard tower configuration offers excellent accessibility for maintenance and upgrades, with internal space accommodating additional storage devices, expansion cards, or specialized computing modules as workflow requirements evolve.
- Width
- 6.65" (169 mm)
- Depth
- 18.06" (458.60 mm)
- Height
- 15.20" (386 mm)
- Weight
- 42.99 lb (19500 g)
Highlights
- Intel Xeon w5-2465X processor with 16 cores and 32 threads at 3.10 GHz
- 128 GB of DDR5 ECC registered memory installed, expandable to 512 GB
- Intel W790 chipset for platform stability and performance
- Serial ATA controller with hardware RAID 0, 1, 5, and 10 support
- Tower form factor with black finish and air cooling system
- 14 total USB ports including USB 3.2 Gen 1 and USB 2.0 interfaces
- Gigabit Ethernet for high-speed network connectivity
- Energy Star certified with EPEAT Gold and TCO Certified environmental ratings
- Dual voltage input (120V/230V AC) for flexible deployment
- Socket LGA-4677 processor interface for current-generation compatibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | HP Inc. |
| Manufacturer Part Number | A33M6UP#ABA |
| Brand Name | HP |
| Product Series | Z4 G5 |
| Product Name | Z4 G5 Workstation Desktop PC |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Xeon |
| Processor Model | w5-2465X |
| Processor Core | Hexadeca-core (16 Core) |
| Processor Threads | 32 |
| Processor Speed | 3.10 GHz |
| Processor Socket | Socket LGA-4677 |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | W790 |
| Memory | |
| Standard Memory | 128 GB |
| Maximum Memory Supported | 512 GB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 8 |
| Error Checking | ECC |
| Signal Processing | Registered |
| Controllers | |
| Controller Type | Serial ATA |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 14 |
| Number of Onboard USB 2.0 Ports | 3 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Cooler Type | Air Cooler |
| Form Factor | Tower |
| Height | 15.20" (386 mm) |
| Width | 6.65" (169 mm) |
| Depth | 18.06" (458.60 mm) |
| Weight (Approximate) | 42.99 lb (19500 g) |
| Miscellaneous | |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | China Environmental United Certification Center (CEC),Electronic Product Environmental Assessment Tool Gold (EPEAT Gold) |
| Energy Efficiency Certification | China Energy Conservation Program (CECP) |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| TCO Certified | Yes |
User Manual
FAQ
What processor does this HP workstation use?
This HP Z4 G5 Workstation features an Intel Xeon w5-2465X processor with 16 cores and 32 threads operating at a base frequency of 3.10 GHz. The Xeon processor includes enterprise-grade features such as built-in security capabilities and remote management functions that are essential for business and professional computing environments.
How much memory is installed and what type is it?
The workstation comes with 128 GB of DDR5 SDRAM installed, utilizing error-correcting code (ECC) and registered signal processing for enhanced data integrity. The memory subsystem supports up to 512 GB total across eight available slots, providing substantial expansion capacity for memory-intensive applications.
What storage controller and RAID options are available?
This system includes a Serial ATA controller with hardware RAID support for levels 0, 1, 5, and 10. These RAID options allow for various storage configurations that can prioritize performance (RAID 0), redundancy (RAID 1, 5), or a combination of both (RAID 10) depending on specific workflow requirements and data protection needs.
What form factor is this workstation and what are its dimensions?
The HP Z4 G5 utilizes a tower form factor measuring 15.20 inches in height, 6.65 inches in width, and 18.06 inches in depth, with an approximate weight of 42.99 pounds. The tower configuration provides ample internal space for component expansion and efficient cooling, making it suitable for environments where upgradeability and thermal management are important considerations.
What connectivity options does this workstation offer?
Connectivity includes 14 total USB ports with a mix of USB 3.2 Gen 1 and USB 2.0 interfaces, providing flexibility for various peripherals. The system also features Gigabit Ethernet for high-speed network access, which is essential for data-intensive professional applications that require fast file transfers or network-based processing.
What environmental certifications does this workstation have?
This workstation carries multiple environmental certifications including Energy Star compliance, EPEAT Gold rating, TCO Certified status, and compliance with RoHS and WEEE directives. These certifications indicate the product meets stringent energy efficiency and environmental impact standards, making it suitable for organizations with sustainability initiatives or specific regulatory requirements.
