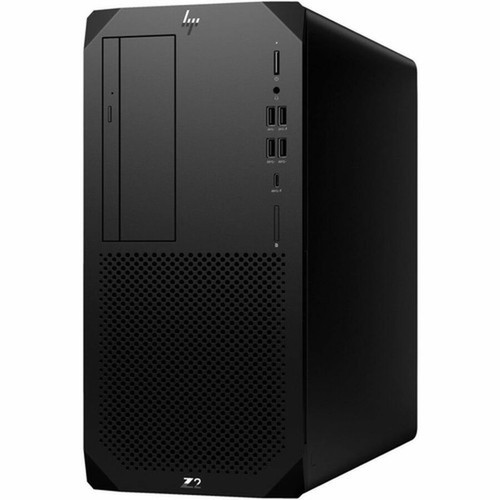

HP A38L9UA#ABA Z2 G9 Workstation - Core i7-14700 14th Gen - 64 GB DDR5 - 1 TB PCIe SSD - 12 GB Graphics - Windows 11 Pro - Tower
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The Z2 G9 leverages the Intel W680 chipset to support advanced memory and storage configurations. The 64 GB DDR5 RAM operates at 4800 MHz in a dual-channel 2 x 32 GB arrangement, delivering high bandwidth for data-intensive tasks. Storage is handled by a 1 TB PCI Express 4.0 SSD with a Serial ATA/600 controller, offering fast boot times and application loading, with RAID 0 and 1 support for data redundancy or performance enhancement.
Connectivity includes 10 USB ports for peripherals, DisplayPort for high-resolution monitors, and integrated Ethernet, Wi-Fi, and Bluetooth for versatile networking. The 700 W power supply ensures stable operation under full load, while the tower chassis provides ample space for expansion and cooling.
Relevant factors for this section include Processor Type, Processor Generation, Processor Model, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This workstation combines robust hardware with professional features to meet the needs of engineers, designers, and data analysts. The hexadeca-core processor and substantial memory enable seamless handling of resource-heavy applications, while the dedicated graphics memory accelerates rendering and visualization tasks.
High-Performance Memory
64 GB of DDR5 RAM at 4800 MHz ensures smooth performance in multitasking and memory-intensive applications like virtual machines and large simulations.
- Dual-channel configuration
- Non-ECC unbuffered
- Optimized for workstation loads
Fast Storage System
The 1 TB PCIe 4.0 SSD provides rapid data access and transfer speeds, reducing wait times for file operations and application launches.
- PCI Express 4.0 interface
- SATA/600 controller
- RAID 0/1 capable
Comprehensive Connectivity
With 10 USB ports, DisplayPort, Wi-Fi, and Bluetooth, the workstation supports a wide range of peripherals and networking options for flexible setups.
- Multiple USB ports
- Wireless and wired networking
- DisplayPort for high-res monitors
Deployment / Use Cases
The HP Z2 G9 is ideal for professional environments where reliability and performance are critical. Its tower form factor and powerful components make it suitable for single-user tasks that require substantial computing resources.
Common applications include computer-aided design (CAD), financial modeling, scientific research, and video editing. The system's expandability allows for future upgrades, while the Windows 11 Pro OS provides tools for security and productivity in business settings.
Relevant factors for this section include Processor Type, Processor Generation, Processor Model, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Engineering and Design
Handles 3D modeling, simulation, and rendering with the Core i7 processor and dedicated graphics, ensuring precise and efficient design workflows.
Data Analysis and Research
Manages large datasets and complex calculations with 64 GB of RAM and fast SSD storage, supporting analytics and scientific applications.
Localization and Operating System
The workstation comes pre-installed with Windows 11 Pro, offering advanced features for business users, including enhanced security, remote management, and productivity tools. The operating system is configured for professional use, supporting a wide range of software applications common in technical and creative fields.
Relevant factors for this section include Processor Type, Processor Generation, Processor Model, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The tower chassis provides a robust and expandable foundation, with a weight of 15.87 lb (7200 g) for stability. Its design accommodates additional storage drives, expansion cards, and cooling solutions, making it adaptable to evolving workload requirements.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 15.87 lb (7200 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 15.87 lb (7200 g)
What's in the Box
The package includes the Z2 Tower G9 Workstation Wolf Pro Security Edition, an HP Wired Desktop 320K Keyboard, and an HP Wired 320M Mouse, providing a complete out-of-the-box setup for immediate use.
Highlights
- Intel Core i7-14700 14th Gen processor with 16 cores and 28 threads for high-performance computing
- 64 GB of DDR5 SDRAM at 4800 MHz for smooth multitasking and application handling
- 1 TB PCI Express 4.0 SSD with fast data transfer and RAID 0/1 support
- 12 GB dedicated graphics memory for accelerated visual and rendering tasks
- Windows 11 Pro operating system with business-focused features and security
- Tower form factor with 700 W power supply for stable and expandable operation
- 10 USB ports, DisplayPort, Wi-Fi, and Bluetooth for comprehensive connectivity
- 3-year limited warranty with parts, labor, and on-site repair coverage
Specifications
| Specifications | |
|---|---|
| Manufacturer | HP Inc. |
| Manufacturer Part Number | A38L9UA#ABA |
| Brand Name | HP |
| Product Series | Z2 G9 |
| Product Name | Z2 Tower G9 Workstation Wolf Pro Security Edition |
| Product Type | Workstation |
| Processor | |
| Processor Type | Core i7 |
| Processor Generation | 14th Gen |
| Processor Model | i7-14700 |
| Processor Core | Hexadeca-core (16 Core) |
| Processor Threads | 28 |
| vPro Technology | No |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | W680 |
| Memory | |
| Standard Memory | 64 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Clock Speed | 4.80 GHz |
| Memory Configuration | 2 x 32GB |
| Error Checking | Non-ECC |
| Signal Processing | Unbuffered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 1 TB |
| Solid State Drive Interface | PCI Express 4.0 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1 |
| Display & Graphics | |
| Graphics Memory Capacity | 12 GB |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Interfaces/Ports | |
| Total Number of USB Ports | 10 |
| DisplayPort | Yes |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Power Description | |
| Maximum Power Supply Wattage | 700 W |
| Physical Characteristics | |
| Form Factor | Tower |
| Weight (Approximate) | 15.87 lb (7200 g) |
| Miscellaneous | |
| Package Contents | Z2 Tower G9 Workstation Wolf Pro Security Edition HP Wired Desktop 320K Keyboard HP Wired 320M Mouse |
| Energy Star | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 year (3/3/3) limited warranty includes 3 years of parts, labor and on-site repair. |
User Manual
FAQ
What processor does the HP Z2 G9 Workstation use?
It features an Intel Core i7-14700 14th Gen processor, which has 16 cores and 28 threads. This hexadeca-core design provides high performance for demanding applications like CAD, simulation, and data analysis, ensuring efficient processing of complex tasks.
How much memory is installed, and what type is it?
The workstation comes with 64 GB of DDR5 SDRAM, configured as 2 x 32 GB modules running at 4800 MHz. This dual-channel setup offers high bandwidth for memory-intensive workloads, supporting smooth operation in multitasking environments and large-scale computations.
What storage capacity and interface does the SSD have?
It includes a 1 TB solid-state drive with a PCI Express 4.0 interface, connected via a Serial ATA/600 controller. This provides fast boot times, quick application loading, and rapid data transfer, with support for RAID 0 and 1 configurations for performance or redundancy.
Does this workstation include a dedicated graphics card?
Yes, it features a dedicated graphics solution with 12 GB of memory. This accelerates visual tasks such as 3D rendering, video editing, and design work, enhancing performance in professional applications that rely on GPU processing.
What operating system is pre-installed?
Windows 11 Pro is installed, offering advanced security features, remote management capabilities, and productivity tools tailored for business use. This OS supports a wide range of professional software and provides a stable platform for workstation applications.
What connectivity options are available on the HP Z2 G9?
Connectivity includes 10 USB ports for peripherals, a DisplayPort for monitors, Ethernet for wired networking, and integrated Wi-Fi and Bluetooth for wireless connections. This comprehensive set ensures compatibility with various devices and networking requirements in professional settings.
