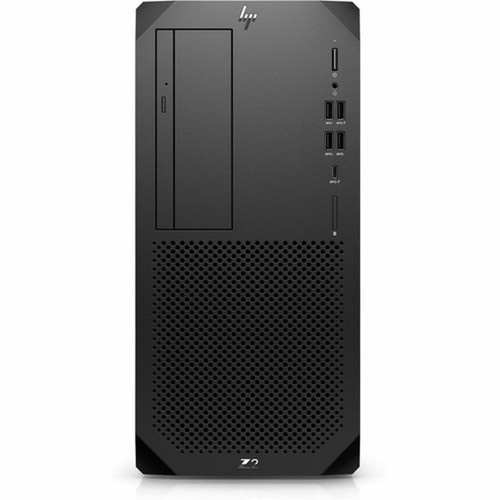

HP A4DK7UA#ABA Z2 G9 Workstation - Intel Core i9-14900 14th Gen - 64 GB DDR5 RAM - Tower Form Factor - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This workstation's technical architecture is built for stability and expansion. The processor utilizes the Socket LGA-1700 platform, and the system supports up to 128 GB of memory across four DDR5 slots, allowing for significant future upgrades. Storage flexibility is provided through support for both Serial ATA/600 and NVMe interfaces, with RAID 0 and 1 capabilities for data redundancy or performance configurations.
Connectivity is handled by Gigabit Ethernet for network access and includes 11 USB ports for peripherals. The power supply accepts both 120 V AC and 230 V AC input, supporting deployment in various regional electrical environments. Internal signal processing uses unbuffered memory, and the system includes a DisplayPort video output.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Z2 G9 combines high-end components in a serviceable tower chassis, creating a workstation that excels in professional compute tasks. Its core advantages stem from a balanced specification focused on throughput, reliability, and enterprise-grade features.
Compute Performance
The Intel Core i9-14900 processor, with its 24-core design and support for Intel vPro, delivers the consistent performance required for engineering software, financial modeling, and content creation workflows.
- 14th Gen Intel Core architecture
- 32 processing threads
- 2 GHz base clock speed
Memory and Storage Foundation
With 64 GB of fast DDR5 RAM installed and support for high-speed NVMe storage, the system minimizes bottlenecks in data access and application loading, which is crucial for large dataset manipulation.
- DDR5 SDRAM technology
- NVMe and SATA storage support
- Configurable RAID options
Enterprise Design and Compliance
The workstation meets multiple environmental and energy standards, including EPEAT Gold, TCO Certified, and Energy Star. Its tower design facilitates easier maintenance and component upgrades compared to compact form factors.
- EPEAT Gold and Climate+ certified
- TCO Certified
- Tower chassis for serviceability
Deployment / Use Cases
The HP Z2 G9 Workstation is suited for professional environments where computational power, data integrity, and system stability are non-negotiable. Its specification targets users who need a reliable desktop for sustained, heavy workloads rather than general office tasks.
Primary use cases include computer-aided design (CAD) and computer-aided engineering (CAE), where the processor and memory capacity handle complex 3D models and simulations. It is equally effective for software development builds, data science analysis with large in-memory datasets, and professional video editing or rendering tasks. The inclusion of vPro technology makes it a fit for IT-managed corporate deployments where remote management and security features are valued.
Physical Profile
The workstation uses a traditional tower form factor, finished in black. Its dimensions are 15.16 inches in height, 14.02 inches in width, and 6.65 inches in depth (385 mm x 356 mm x 169 mm), with an approximate weight of 13.67 pounds (6200 g). This size provides ample internal space for additional storage drives, expansion cards, and cooling, while maintaining a manageable footprint for a professional desk or under-desk placement.
- Width
- 14.02" (356 mm)
- Depth
- 6.65" (169 mm)
- Height
- 15.16" (385 mm)
- Weight
- 13.67 lb (6200 g)
Highlights
- Intel Core i9-14900 14th Gen processor with 24 cores and 32 threads
- 64 GB of DDR5 SDRAM installed, expandable to 128 GB
- Intel W680 chipset with vPro technology for manageability and security
- Tower form factor in black for easy serviceability and upgrades
- Supports both NVMe and Serial ATA/600 storage with RAID 0/1
- Gigabit Ethernet and 11 USB ports for connectivity
- Energy Star, EPEAT Gold, and TCO Certified for environmental compliance
- Accepts 120V/230V AC input for global voltage compatibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | HP Inc. |
| Manufacturer Part Number | A4DK7UA#ABA |
| Brand Name | HP |
| Product Series | Z2 G9 |
| Product Name | Z2 Tower G9 Workstation |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Core i9 |
| Processor Generation | 14th Gen |
| Processor Model | i9-14900 |
| Processor Core | Tetracosa-core (24 Core) |
| Processor Threads | 32 |
| Processor Speed | 2 GHz |
| Processor Socket | Socket LGA-1700 |
| vPro Technology | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | W680 |
| Memory | |
| Standard Memory | 64 GB |
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 4 |
| Signal Processing | Unbuffered |
| Controllers | |
| Controller Type | Serial ATA/600,NVMe |
| RAID Supported | Yes |
| RAID Levels | 0, 1 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 11 |
| DisplayPort | Yes |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Tower |
| Height | 15.16" (385 mm) |
| Width | 14.02" (356 mm) |
| Depth | 6.65" (169 mm) |
| Weight (Approximate) | 13.67 lb (6200 g) |
| Miscellaneous | |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold),Electronic Product Environmental Assessment Tool Climate+ (EPEAT Climate+) |
| Energy Efficiency Certification | China Energy Conservation Program (CECP) |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 1 Year |
| Additional Warranty Information | 1 year (1/1/0) limited warranty includes 1 year of parts and labor. No on-site repair. |
User Manual
FAQ
What processor is in the HP Z2 G9 Workstation?
This workstation is powered by an Intel Core i9-14900 processor from the 14th Gen family. It is a 24-core (tetracosa-core) CPU with 32 threads and a base clock speed of 2 GHz, built on the Socket LGA-1700 platform. It includes Intel vPro technology, which provides hardware-enhanced security and remote management capabilities for enterprise environments.
How much memory does it have, and can I upgrade it?
The system comes with 64 GB of DDR5 SDRAM installed. It has four total memory slots and supports a maximum memory capacity of 128 GB. This allows for a significant memory upgrade by populating the empty slots with additional DDR5 modules, which is beneficial for applications like virtualization, large-scale data analysis, or high-resolution video editing.
What types of storage does this workstation support?
The HP Z2 G9 supports both NVMe (Non-Volatile Memory Express) and Serial ATA/600 (SATA) storage devices. The system's storage controller enables the use of fast NVMe SSDs for primary storage and applications, alongside traditional SATA hard drives or SSDs for bulk storage. It also supports RAID levels 0 (striping for performance) and 1 (mirroring for redundancy).
What are the key connectivity features?
For network connectivity, the workstation features Gigabit Ethernet. It provides 11 USB ports for connecting peripherals such as keyboards, mice, external drives, and dongles. A DisplayPort is included for video output to a monitor. The system does not have built-in Wi-Fi or Bluetooth so those would require add-in cards or external adapters.
What is the form factor, and what are its dimensions?
This is a tower-form-factor workstation. Its physical dimensions are 15.16 inches high, 14.02 inches wide, and 6.65 inches deep (385 mm x 356 mm x 169 mm). It weighs approximately 13.67 pounds (6200 g). The tower design provides more internal space for components and cooling compared to small-form-factor desktops, making it easier to upgrade and service.
What certifications and warranty does it include?
The workstation carries several environmental and energy certifications, including Energy Star, EPEAT Gold, EPEAT Climate+, TCO Certified, and compliance with ErP, WEEE, and RoHS directives. It is backed by a 1-year limited warranty that covers parts and labor. The warranty is a 1/1/0 plan, meaning one year of support with no on-site repair service included.
